Installation
T850 / T855 VACUUM CURVE
T850 / T855 VACUUM CURVE
2
6
10
14
17
In. Hg
In. Hg
17
14
10
6
2
1000 1500 2000
RPM
2500 3000
Airflow at Inlet (CFM)
200
300
400
500
600
700
800
900
1000
0
25
50
75
100
BHP
AIRFLOW BASED UPON
INLET: 70° F
DISCHARGE: 29.92" Hg Abs

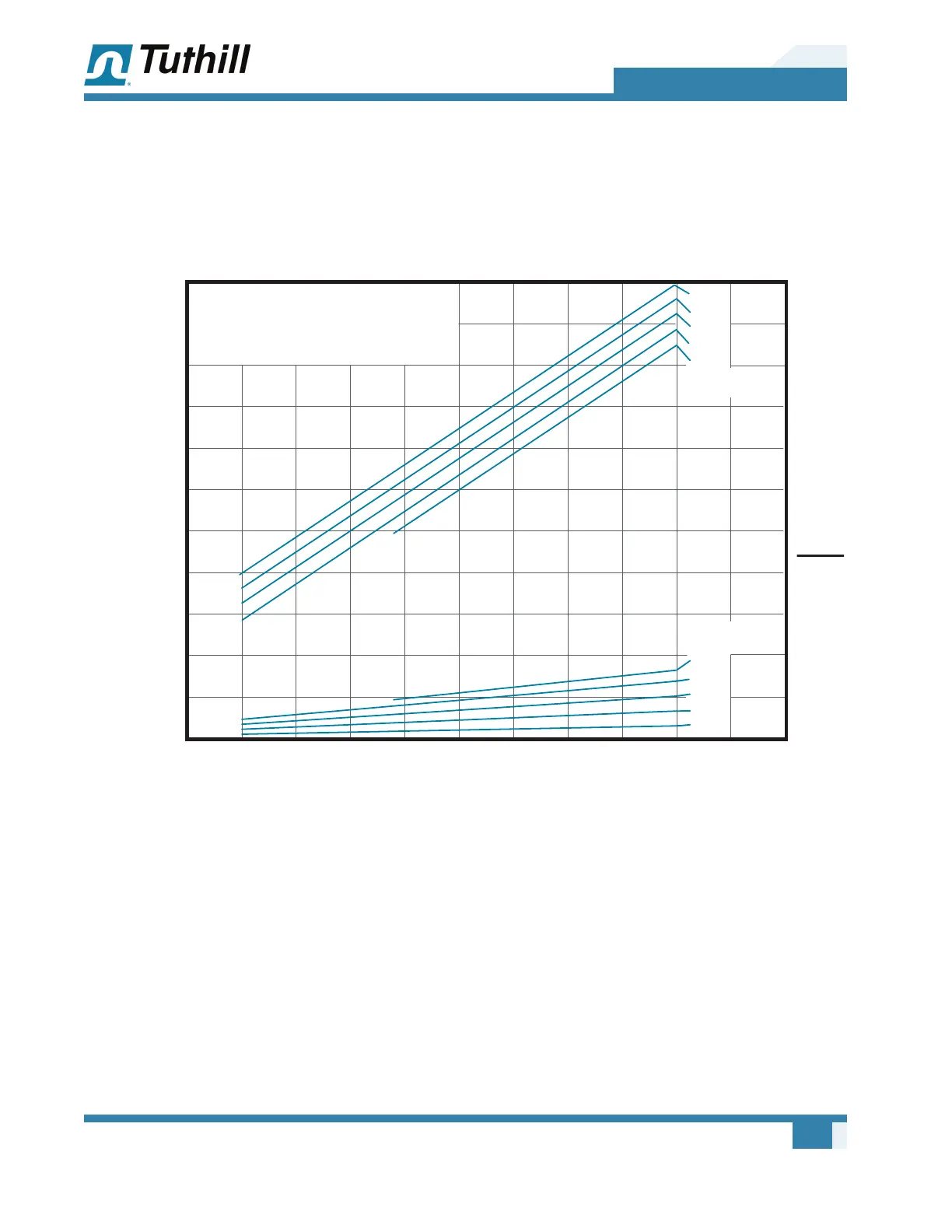

Figure 4-7 – T850 / T855 Vacuum Curve (US)
