TVLogic F-10A User Manual

Field Production Monitor
26

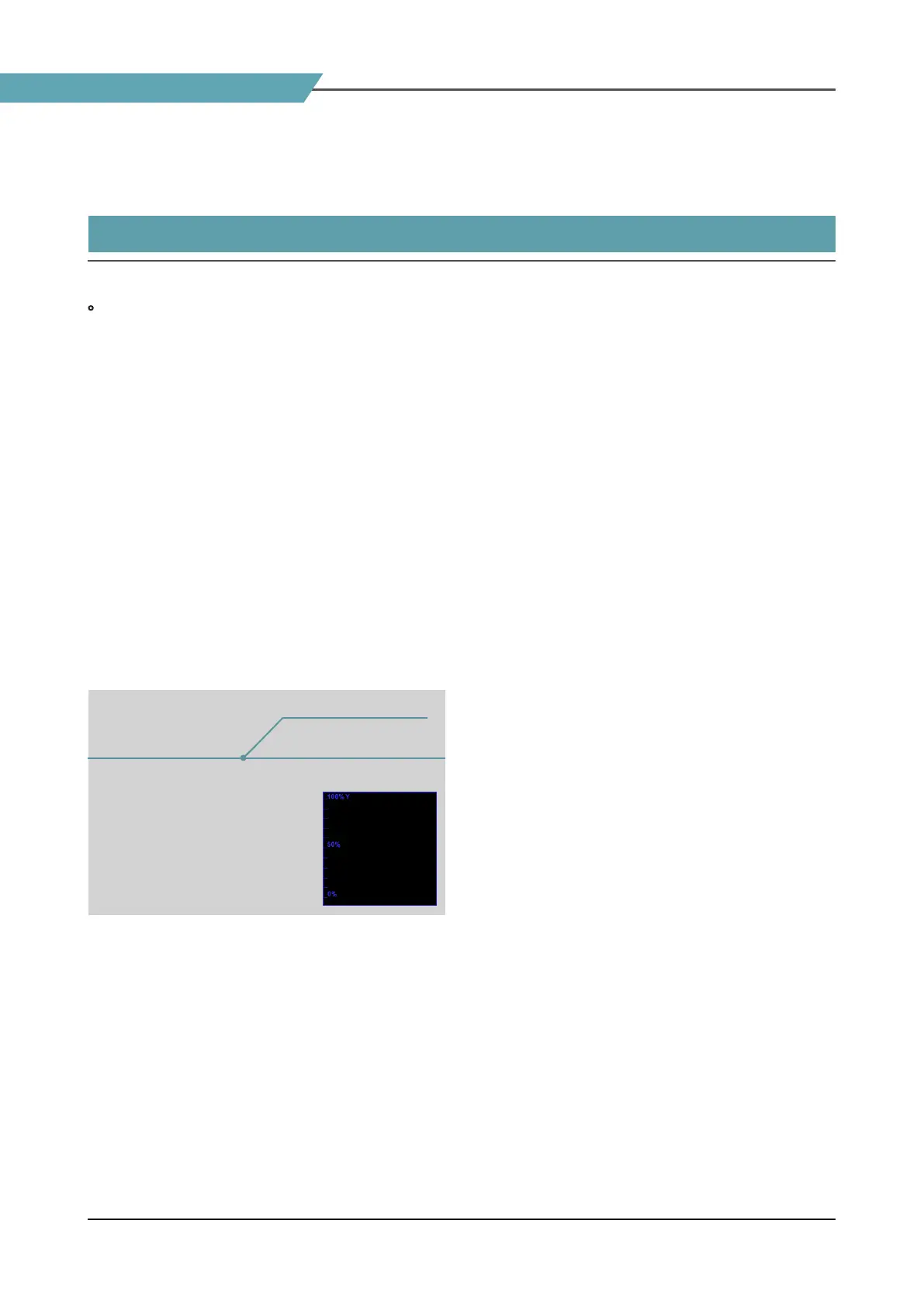

[3] LINE SELECT (WAVEFORM/VECTORSCOPE)
07 OTHER FUNCTIONS
• Used to select specic Vertical Line for WaveForm/VectorScope.
- This is available when LINE WaveForm is activated.
- To activate this feature, go to [Waveform]-[Waveform/Vector]-[Line Waveform]-[Select Line Position] and
use the Knob to select a vertical line.
- Selected line is indicated in White on the screen.
- Control range varies according to the resolution of the input SDI signal.
* PAL : 0~625
* NTSC : 0~525
* 720p : 0~750
* 1080 i/p : 0~1125
*
Selected line is indicated on the screen.
