[2] WAVEFORM / VECTORSCOPE
07 OTHER FUNCTIONS
●

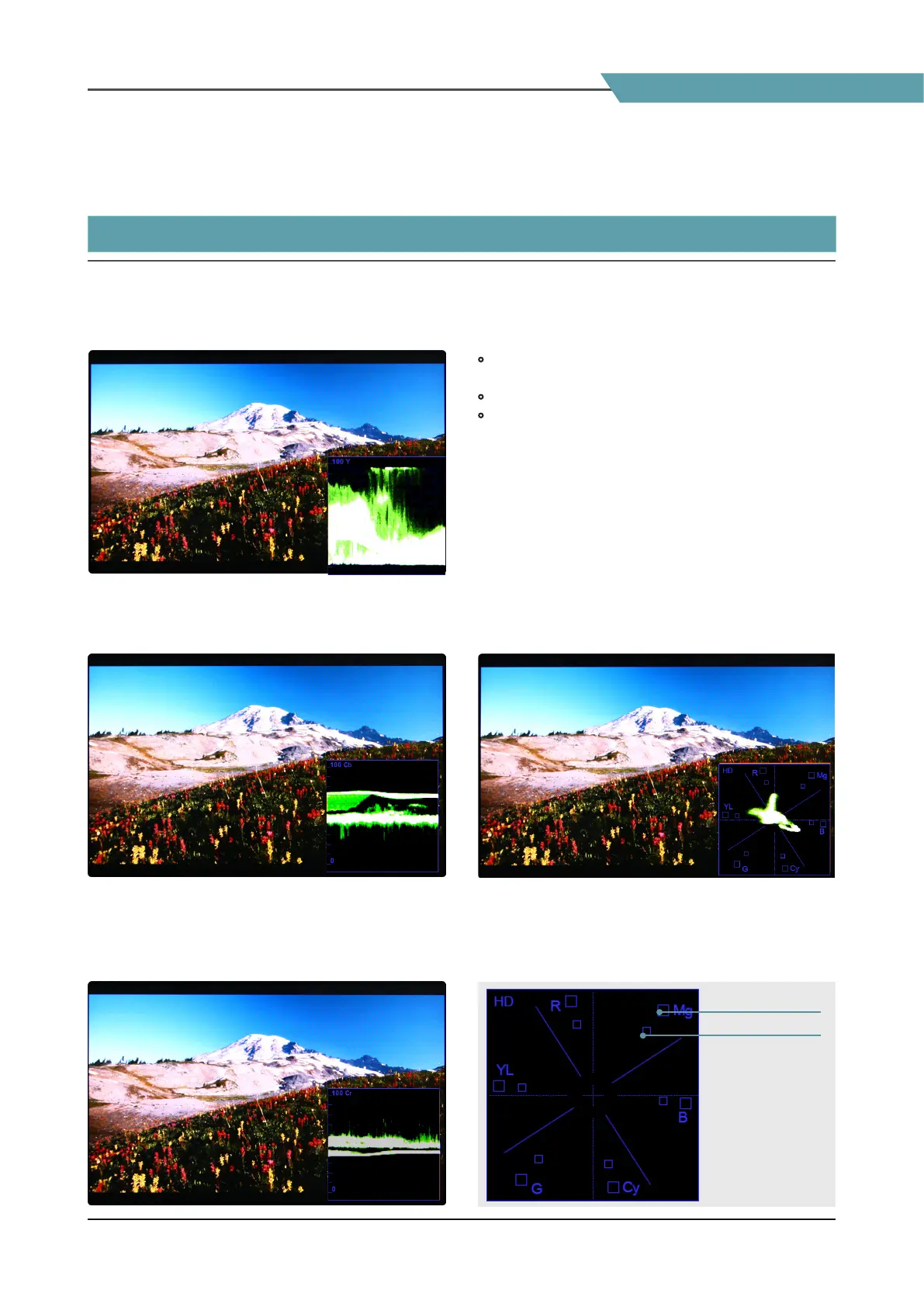

WAVEFORM Y
- Displays the Luma(Y’) component of the input signal into waveform.
●
WAVEFORM Cb, Cr
- Displays the Cb, Cr components of the input signal into waveform.
●
VECTORSCOPE
- Displays the color components ‘B-Y’ and ‘R-Y’ of the input signals onto the X-Y axis.
- Two dierent types of Vetorscopes are displayed according to SD or HD input signals.
- 100% and 75% scales are indicated on the Vetorscope.rm.
• The Waveform/ Vectorscope function can be
used only when the input signal is YUV.
• In the case of RGB input, Waveform RGB is supported.
• Available modes in the YUV signal:
- Waveform Y
- Vectorscope
- Waveform Wide
- Waveform Y Cb Cr
- RGB(Conv.)
- Wave_Vector
- Vector_YCbCr
- Full Waveform(Y)
- Full Vectorscope
100%
75%
