[5] LUMA (Y') ZONE CHECK
07 OTHER FUNCTIONS
• COLOR PATTERN TYPE
- Displays the Luma(Y’) level of the input image in colors.
- Y’ ≥ 100% : Pixels with higher Y’ level than 100 turn to red.
- Y’ ≤ 0% : Pixels with lower Y’ level than 0 turn to green.
- Pixels with Y’ levels designated by the user are displayed in following colors - yellow, pink, cyan.
- Factory Default Y’ (Border line between pink and yellow) level is 75% and the pink color is
assigned to pixels with Y’ level from 70% to 75%.
- Yellow color is assigned to pixels with Y’ level from 75% to 85%, and Cyan from 60% to 70%.
- This function is designed for a better performance in setting the exposure when shooting with DSLR
cameras.

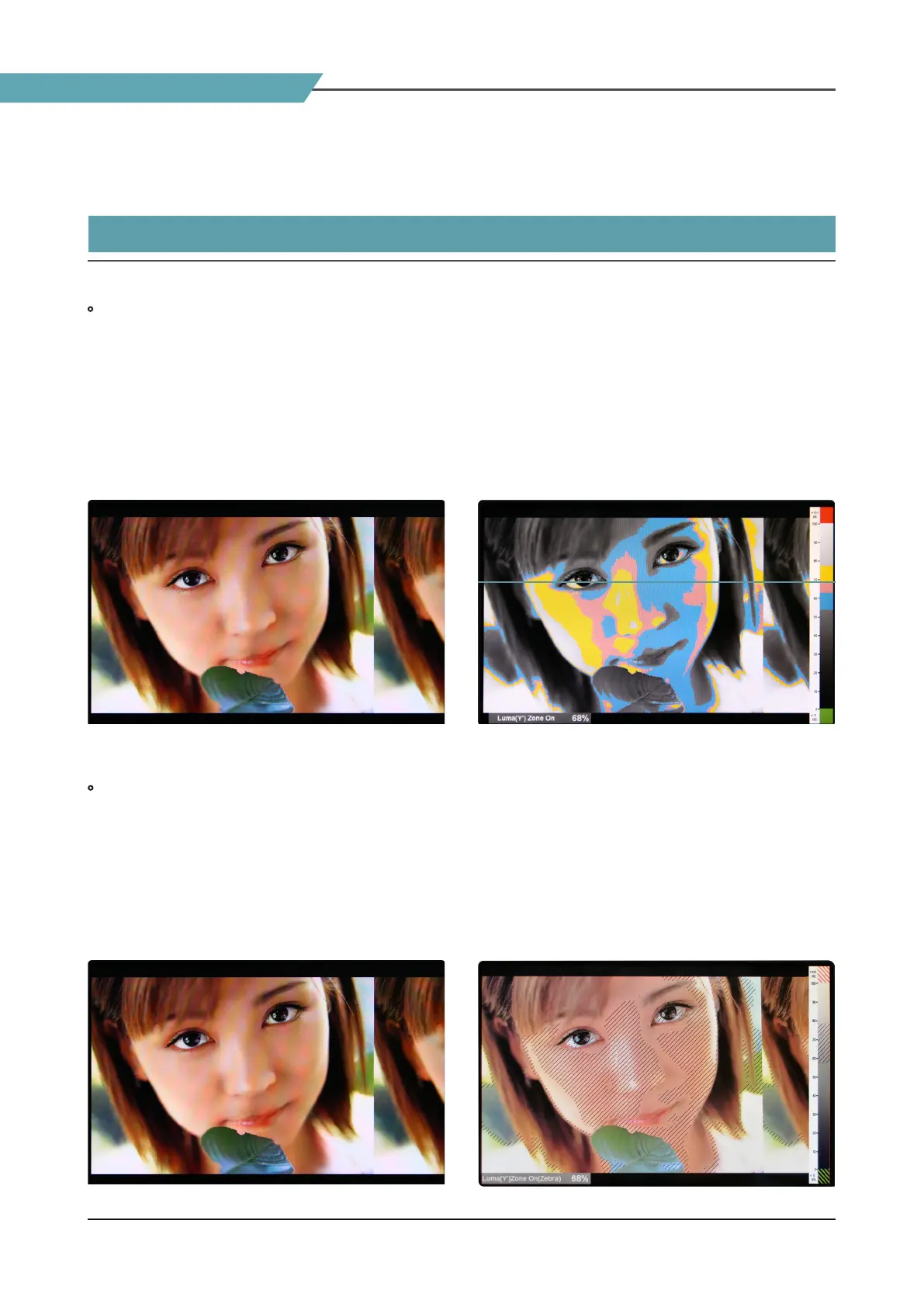

<Luma Zone Check OFF>
<Luma Zone Check OFF> <Luma Zone Check ON_Zebra Pattern Type>
<Luma Zone Check ON_Color Pattern Type>
• ZEBRA PATTERN TYPE
- Displays the pixels with designated Luma(Y’) levels with zebra pattern.
- Y’ ≥ 100%: Pixels with Y’ level over 100% turn to red diagonal stripes.
- Y’ ≤ 0% : Pixels with Y’ level under 0% turn to green diagonal stripes.
- User dened Y’ levels are displayed as black diagonal stripes.
- Factory Default Y’ level is 70% and the pixels with Y’ level from 65% to 75% is displayed with zebra pattern.
- Pixels with 10% of Y’ level is displayed as black diagonal stripes.
- This function is designed for a better performance in setting the exposure when shooting with vDSLR
cameras.
