TVLogic F-10A User Manual

Field Production Monitor
9

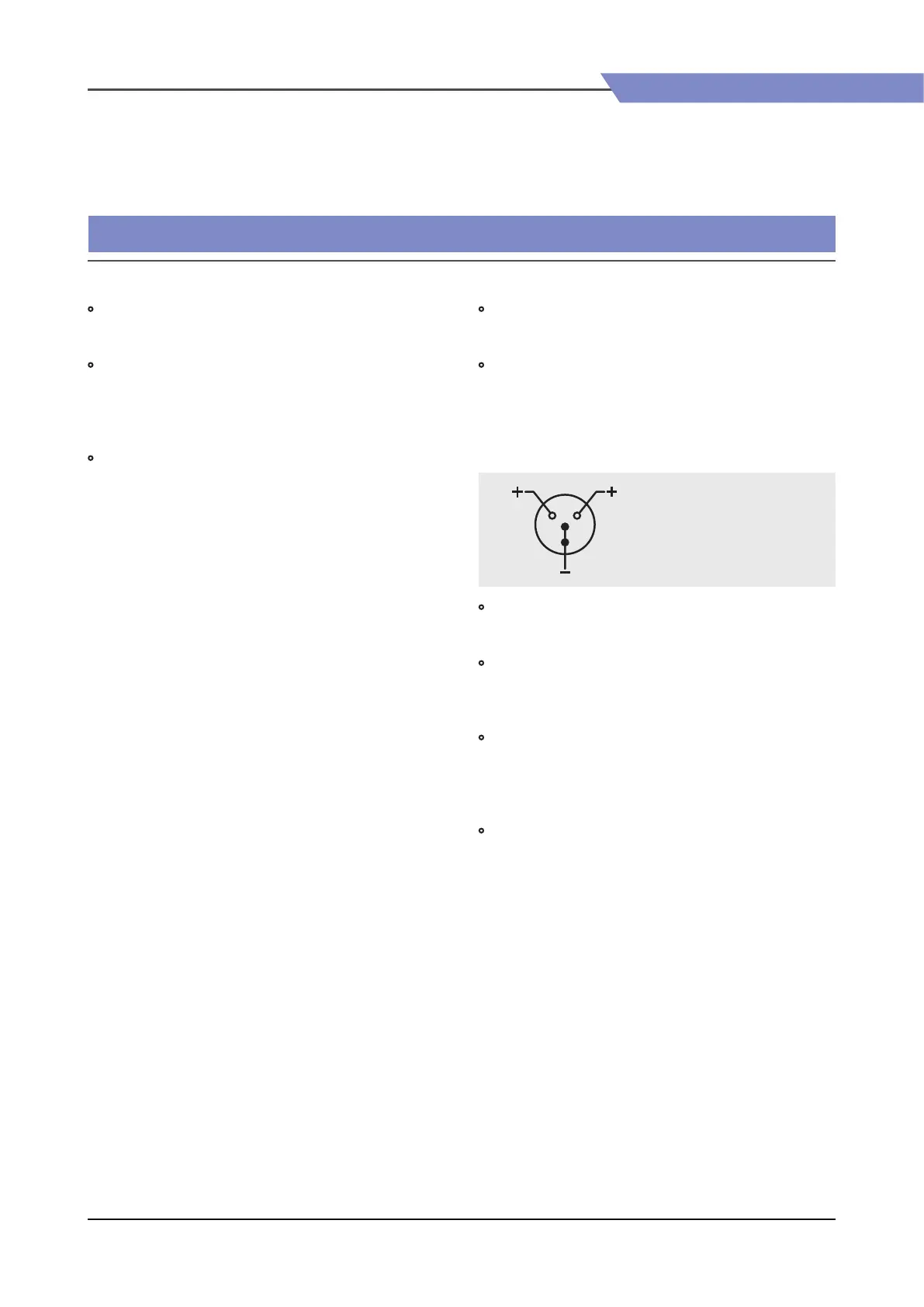

03 CONTROLS & FUNCTIONS
• [HDMI IN]
- Signal input terminal for HDMI signal.
• [HDMI OUT]
- Signal output terminal for HDMI signal.
- Video source from SDI input terminal can be
converted to HDMI format.
• [HEADPHONE] (Phonejack)
- Used for Stereo Audio Output through Phone
Jack. (video signals with embedded audio only)
SIDE & REAR
• [REAR TALLY]
- Activates same as [SCREEN TALLY].
• [DC POWER / TALLY] (XLR 4P)
- Rated Power Input : DC 6V 1.8A / 34V 0.32A
* When using a DC Adapter other than the one
supplied by the manufacturer, please be advised
that the adapter with DC 12V/3A ~ 6A can be
compatible with the monitor.
• [SDI IN] (BNC)
- Signal input terminal for HD/SD/3G SDI signal.
• [SDI IN/OUT] (BNC)
- Can be used as SDI IN or SDI OUT depending on
the menu setting.
• [SDI OUT] (BNC)
- Signal output terminal for HD/SD/3G SDI signal.
- Video source from HDMI input terminal can be
converted to SDI format.
• [POWER] Switch
- Used to turn the power on and o.
<Warning!!>
When using the product make sure to ground,
whenever possible, before connecting the input
signal cable in order to prevent any possible
damage to the product or connected devices. The
damage may include signal noise, malfunction of
main board or display panel. And the connected
devices such as camera or video source player
may also be inuenced through signal cable.
Please check if the AC power source and the
power extender or power distributor is grounded.
