- 21 -

When using internal +5V power source for the HANDLER interface signal output,

reference ground of the LCR meter is connected with COM.

4-2. Time Sequence of Interface Signal

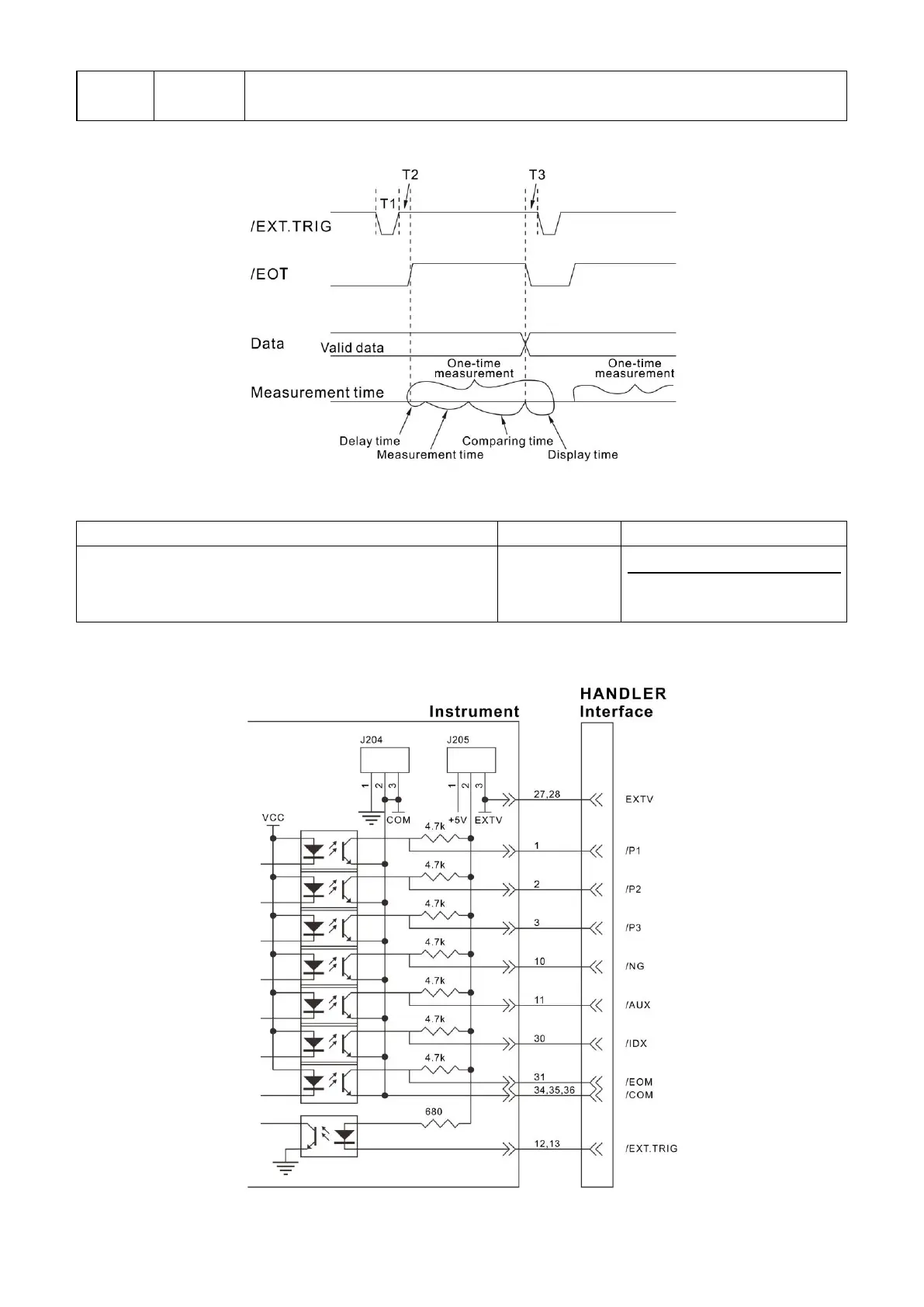

Fig.4-3 Time sequence chart

Time

MIN Value

MAX Value

T1: Trigger pulse width

T2: Delay time of starting measurement

T3: Trigger waiting time after /EOT output

1us

200us

0us

Display time + 200us

---

4-3. Schematic Diagram of Interface Signal

If using internal +5V power source: connect pin 1 to pin 2 of J205; and connect pin 1 to pin 2 of J204.
