17

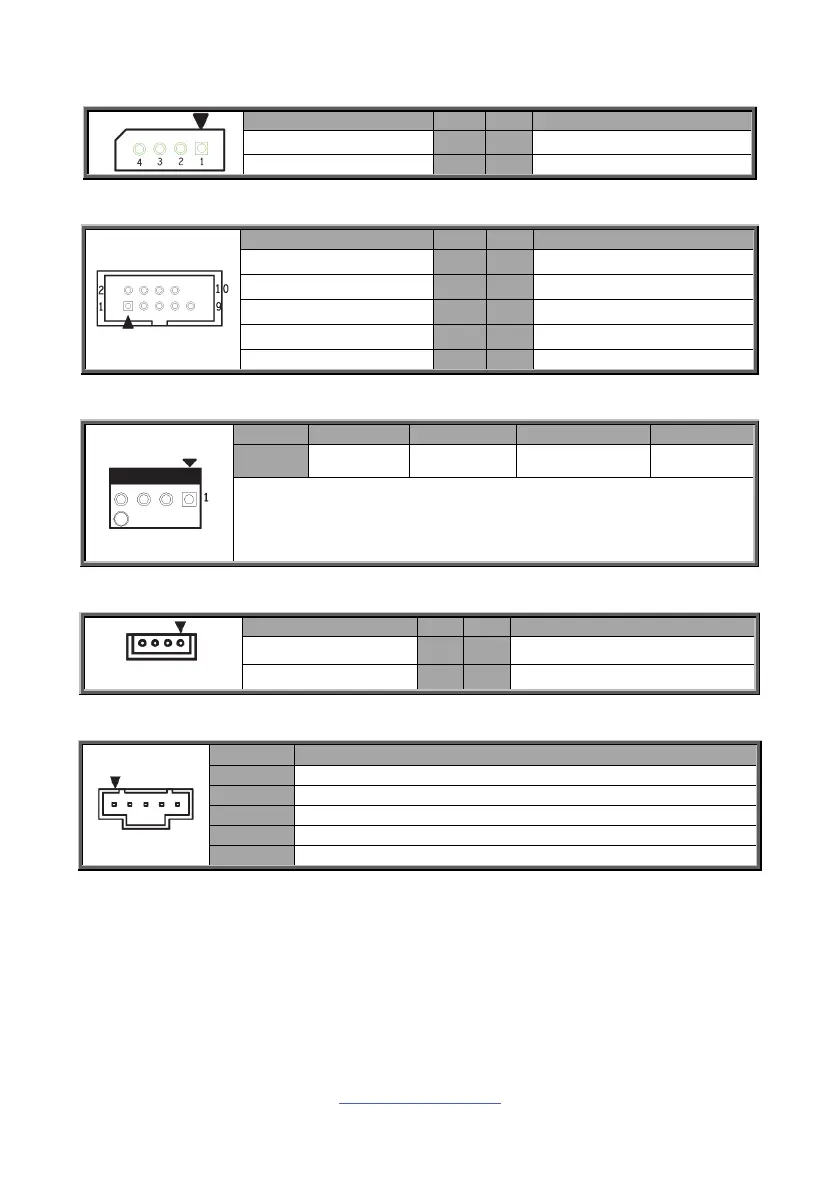

IPMB_HD1: IPMB Connector
Signal Pin Pin Signal
IPMB_DAT
1 2
GND
IPMB_CLK 3 4 VCC3_AUX
HD_COM2: COM2 Header
Signal Pin Pin Signal
COM2_DCD 1 2 COM2_DSR
COM2_RXD 3 4 COM2_RTS
COM2_TXD 5 6 COM2_CTS
COM2_DTR 7 8 COM2_NRI
GND 9 10 KEY
CPUFAN1/ SYSFAN1~5: 4-pin CPU Fan Connector
Pin 1 2 3 4
Signal GND P12V FAN_TACH FAN_PWM
Use this header to connect the cooling fan to your motherboard to
keep the system stable and reliable.
Note: A 4-pin fan is required for fan support 4pin Control
RAID KEY: SATA RAID KEY (VROC Header)
Signal Pin Pin Signal
GND 1 2 PU_KEY_CONN_PIN2_R
GND 3 4 FM_PCH_SATA_RAID_KEY_R
PSMI_HD1: PSMI Connector
Pin Signal
1 PSMI_5V_SMBCLK
2 PSMI_5V_SMBDATA
3 PSU_ALERT_N
4 GND
5 P3V3
