18

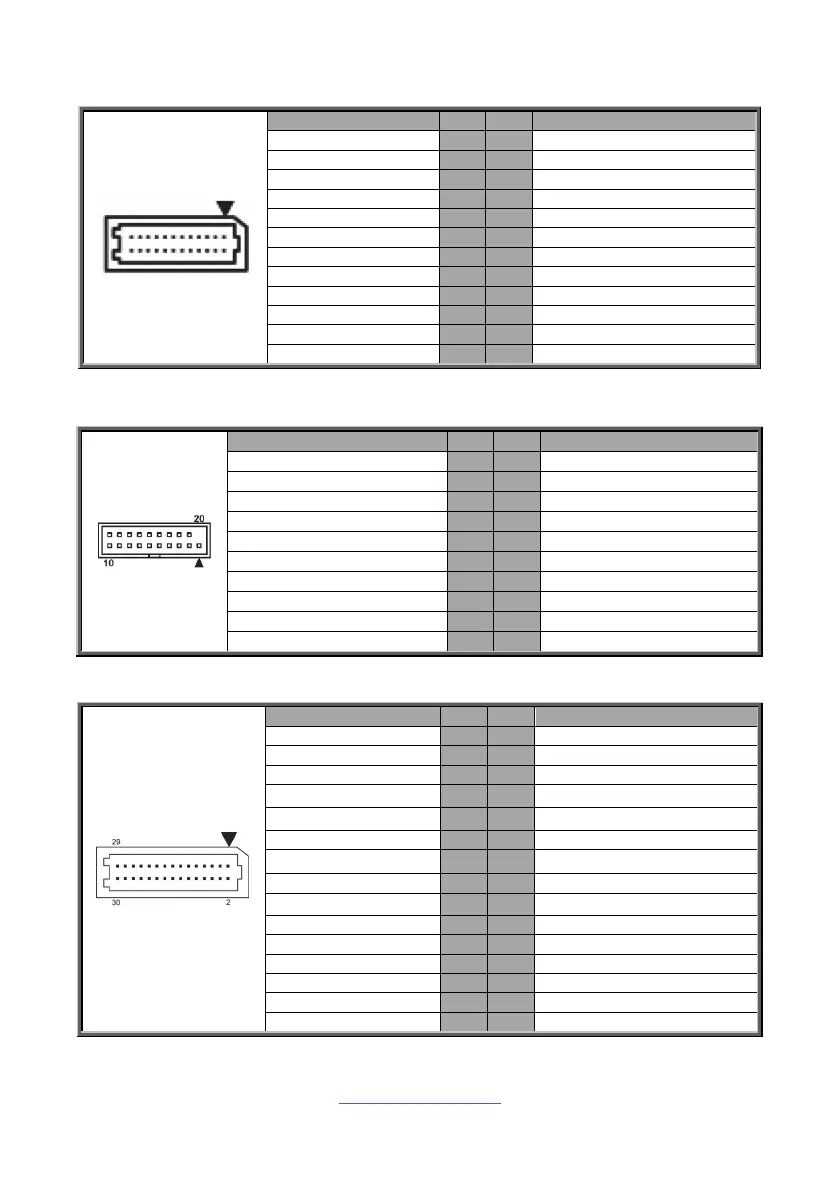

SSI_FP: Front Panel Connector
USB3_FPIO1: Front USB3.2 Gen1 Header
Signal Pin Pin Signal
P5V_USB3_FRONT_HEAD 1 20 KEY
USB3_N1_RX_FPB 2 19 P5V_USB3_FRONT_HEAD
USB3_P1_RX_FPB 3 18 USB3_N0_RX_FPB
GND 4 17 USB3_P0_RX_FPB
USB3_N1_TX_FPB 5 16 GND
USB3_P1_TX_FPB 6 15 USB3_N0_TX_FPB
GND 7 14 USB3_P0_TX_FPB
USB2_N1_FPB_R 8 13 GND
USB2_P1_FPB_R 9 12 USB2_N0_FPB_R
NC 10 11 USB2_P0_FPB_R
FAN_FP: Fan Connector (Reserved for Barebone)
Signal Pin Pin Signal
FAN_T1 1 2 FAN_T6
FAN_T2 3 4 FAN_T7
FAN_T3 5 6 FAN_T8
FAN_T4 7 8 FAN_T8
FAN_T5 9 10 FAN_T10
GND 11 12 GND
PWM_FRONT3 13 14 PWM_FRONT12
FAN_T11 15 16 FAN_SDA
FAN_T12 17 18 FAN_SCL
P3V3_AUX 19 20 PWM_REAR12
P3V3_AUX 21 22 GND
FAN_T13 23 24 FAN_T15
FAN_T14 25 26 FAN_T16
PWM_BB3 27 28 PWM_6
PWM_CPU0 29 30 GND
Signal Pin Pin Signal
FP_PW_LED_PW 1 2 VCC_FPB
NC 3 4 FP_ID_LED_PW
FP_PW_LED_GND 5 6 FP_ID_LED_N
HDD_LED_PW 7 8 BMC_HW_FAULT_N
HDD_ACT_LED_N 9 10 BMC_SYS_FAULT_N
FP_PWR_BTN_N 11 12 LAN0_LED_P
GND 13 14 LAN0_LED_N
FP_RST_BTN_JP_N 15 16 FP_SMB_DAT
GND 17 18 FP_SMB_CLK
FP_IDLED_BTN_N 19 20 FP_INTRUSION_N
SYS_AIR_INLET 21 22 LAN1_LED_P
FP_NMI_BTN_N 23 24 LAN1_LED_N
