TYAN S5652 - Page 19

http://www.tyan.com
19

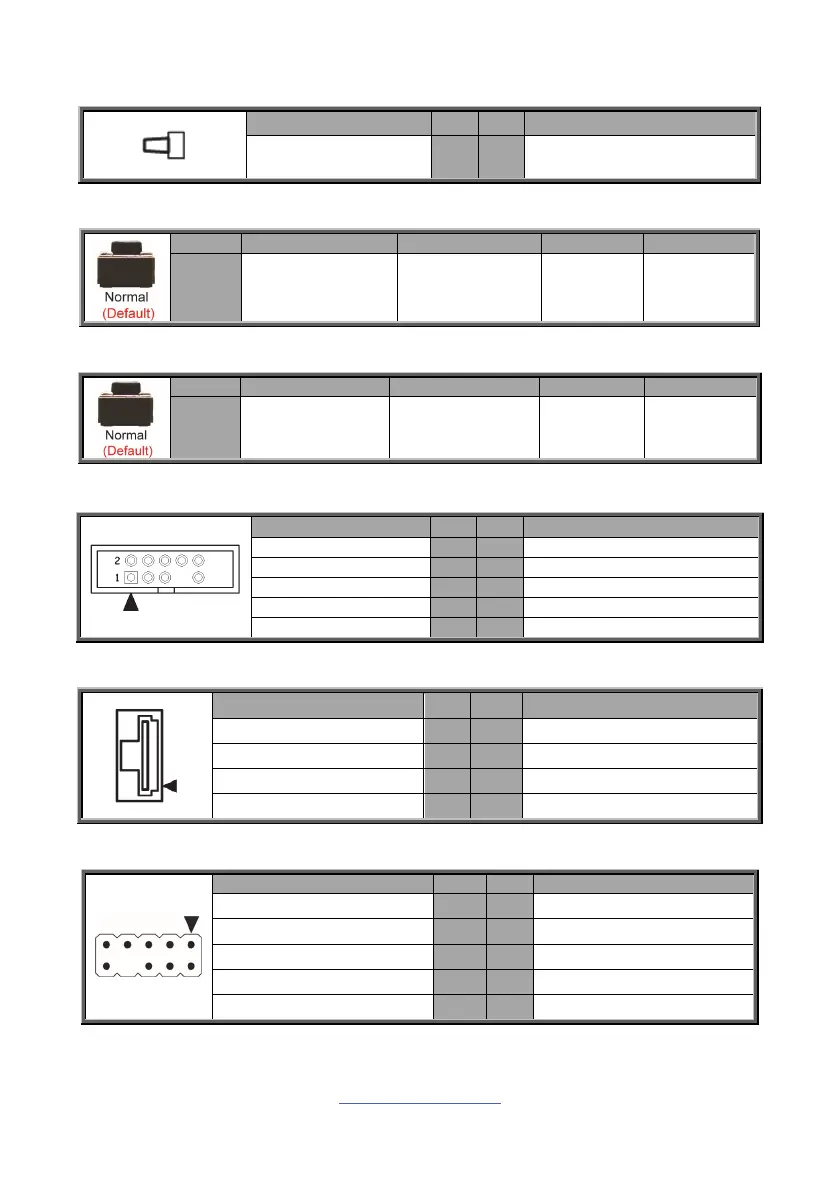

ID BTN: Rear IDLED Button
Signal Pin Pin Signal
FP_IDLED_BTN_N 1 2 GND
REST: Reset Button
Pin 1 2 3 4
Signal FP_RST_BTN_N FP_RST_BTN_N GND GND
POWER: POWER Button
Pin 1 2 3 4
Signal FP_PWR_BTN_N FP_PWR_BTN_N GND GND
SATA1_SGPIO: SGPIO Header
Signal Pin Pin Signal
SGIO_HDR_SM_CLK 1 2 NC
SGIO_HDR_SM_DAT 3 4 SGPIO_SATA1_DATAOUT_R
GND 5 6 SGPIO_SATA1_LOAD_R
KEY 7 8 SGPIO_SATA1_CLOCK_R
DBG_LPC3 9 10 NC
HDR_3: 7-pin NVMe Hot Plug Function Connector
Signal Pin Pin Signal
VCC3_AUX
1 2
HP0_SCK
HP0_SDA
3 4
CPU01_SMBALERT_N_C
NC
5 6
NC
VCC3
7
J6: Front Audio Header
Signal Pin Pin Signal
MIC2-L_R
1 2
AGND_P5V
MIC2-R_R
3 4
FP_AUD_DETECT_N
LINE2-R_R
5 6
MIC2-JD
FIO_SENSE
7 8
KEY
LINE2-L_R
9 10
LINE2-JD
