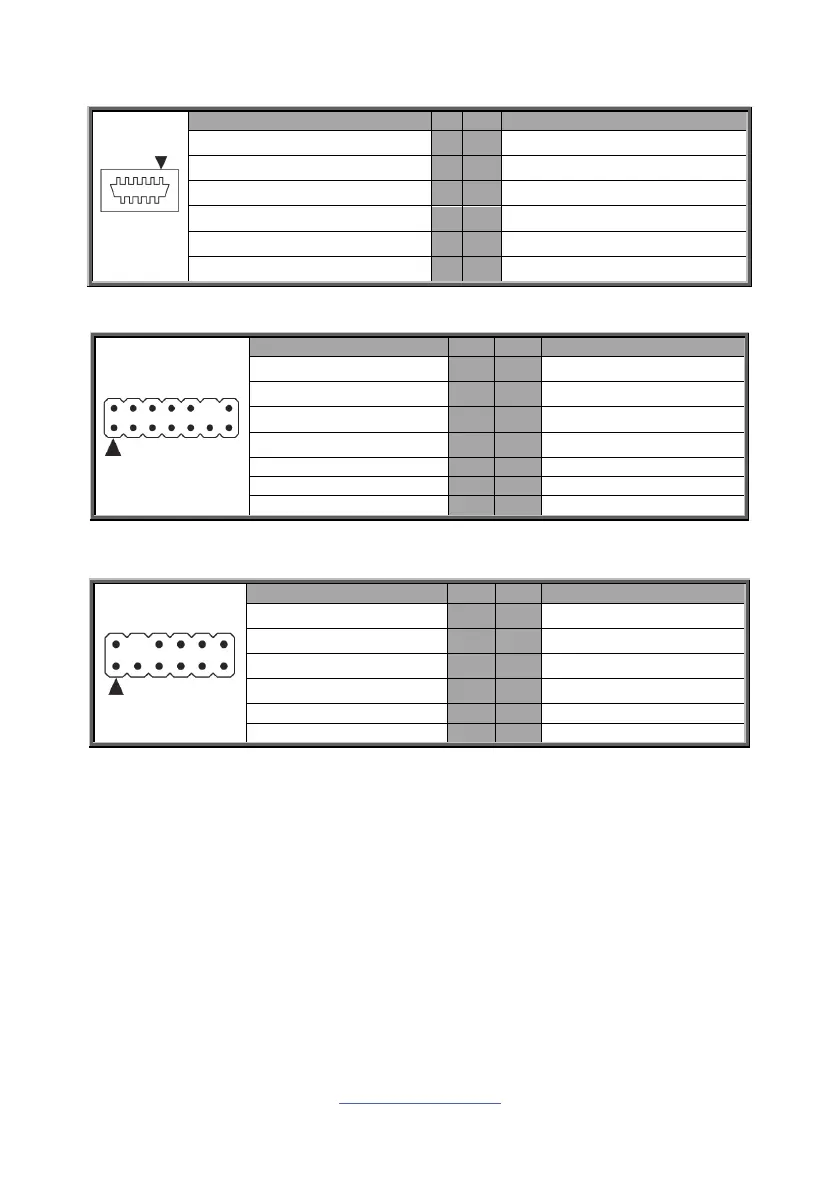

ESPI_TPM1: SPI TPM Header
Signal Pin Pin Signal
SPI_TPM_CONN_CLK 1 7 P3V3_AUX
RST_PLTRST_TPM_CONN_N 2 8 FM_TPM_CONN_PRSNT_R_N
SPI_TPM_CONN_MOSI 3 9 IRQ_TPM_CONN_PIRQ_N
SPI_TPM_CONN_MISO 4 10 P3V3
SPI_PCH_TPM_CONN_CS_N 5 11 GND
NC_TPM_PIN6 6
FPIO_VGA3: VGA Header
Signal Pin Pin Signal
GND 1 2 VGA2_5V
GND 3 4 HD_VGA_R
GND 5 6 HD_VGA_G
GND 7 8 HD_VGA_B
GND 9 10 HD_VGA_DAT
HD_VGA_HS 11 12 KEY
HD_VGA_CLK 13 14 HD_VGA_VS
J4: ESPI Debug Header
Signal Pin Pin Signal
P3V3_AUX 1 2 DBG_ESPI_CS1_N
LAD0_ESPI_DBG_IO0 3 4 KEY
LAD1_ESPI_DBG_IO1 5 6 DBG_ESPI_RESET_N
LAD2_ESPI_DBG_IO2 7 8 GND
LAD3_ESPI_DBG_IO3 9 10 CLK_DBG_ESPI
DBG__ESPI_ALERT1_N 11 12 GND
