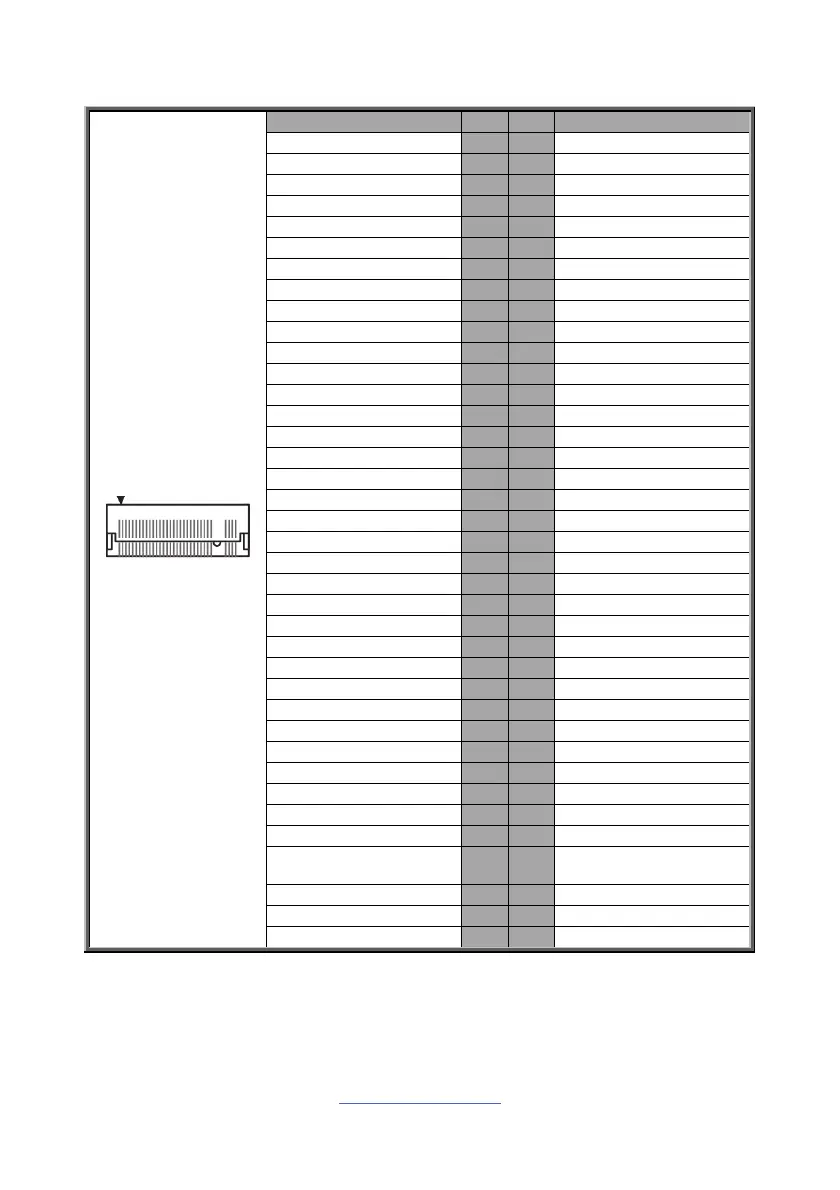

M.2#1: M.2 Socket
Signal Pin Pin Signal
GND 1 2 P3V3
GND 3 4 P3V3
PERN3 5 6 NC2
PERP3 7 8 NC3
GND 9 10 I/O/LED
PETN3 11 12 P3V3
PETP3 13 14 P3V3
GND 15 16 P3V3
PERN2 17 18 P3V3
PERP2 19 20 NC
GND 21 22 NC
PETN2 23 24 NC
PETP2 25 26 NC
GND 27 28 NC
PERN1 29 30
NC
PERP1 31 32
NC
GND 33 34
NC
PETN1 35 36
NC
PETP1 37 38 NC
GND 39 40 M2_SMB_CLK2
PERP0/SATA+ 41 42 M2_SMB_DAT2
PERN0/SATA- 43 44 NC
GND 45 46 NC
PETN0/SATA- 47 48 NC
PETP0/SATA+ 49 50 M2_PERST_N
GND 51 52 NC
REFCLKN 53 54 NC
REFCLKP 55 56 NC21
GND 57 58 NC
KEY 59 60 KEY
KEY 61 62 KEY
KEY 63 64 KEY
KEY 65 66 KEY
NC 67 68 NC
PEDET-NC-PCIE
GND-SATA
69 70 3.3V
GND
71 72 3.3V
GND
73 74 3.3V
GND 75
