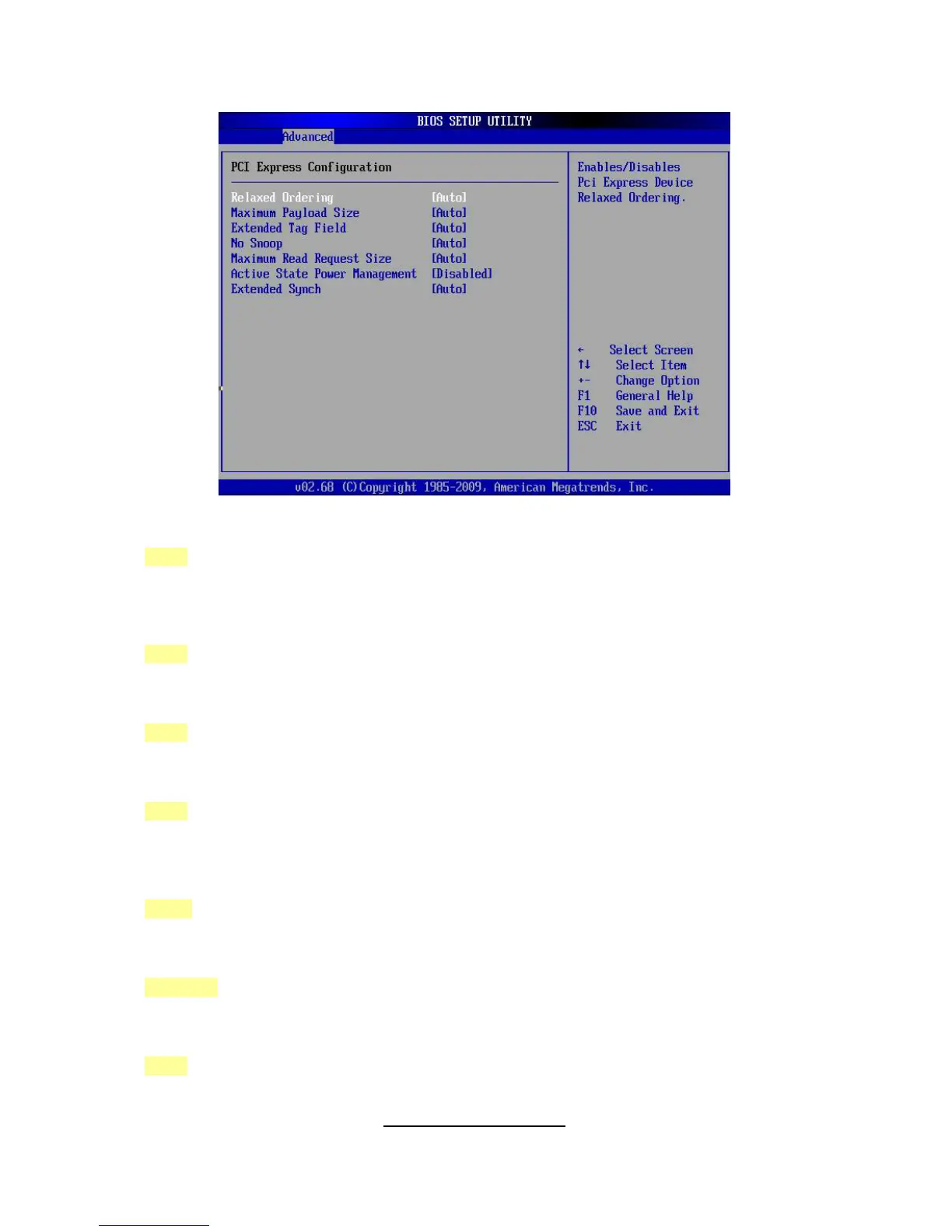

3.7.6 PCI-Express Configuration
Relax Ordering
Enables / Disables PCI Express Device Relaxed Ordering.
[Auto] / [Disabled] / [Enabled]
Maximum Payload Size
Set Maximum Payload of PCI Express Device or allow System BIOS select the
value.
[Auto] / [Disabled]
Extended Tag Field
If Enabled, allows Device to use 8-bit Tag field as a requester.
[Auto] / [Disabled]
No Snoop
Enables/Disables PCI Express Device No Snoop option.
[Auto] / [Disabled]
Maximum Read Request Size
Set Maximum Read Request Size of PCI Express Device or allow System BIOS
select the value.
[Auto] / [Disabled]
Active State Power Management
Enable/disable PCI Express L0s AND L1 link power states.
[Disabled] / [Enabled]
Extended Synch
If enabled, allows generation of Extended Synchronization patterns.
[Auto] / [Disabled]
