CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 16 May 2006 14
Configurations
The 19-Inch Shelf provides four Power Slots.
The 23-Inch Shelf provides five Power Slots.

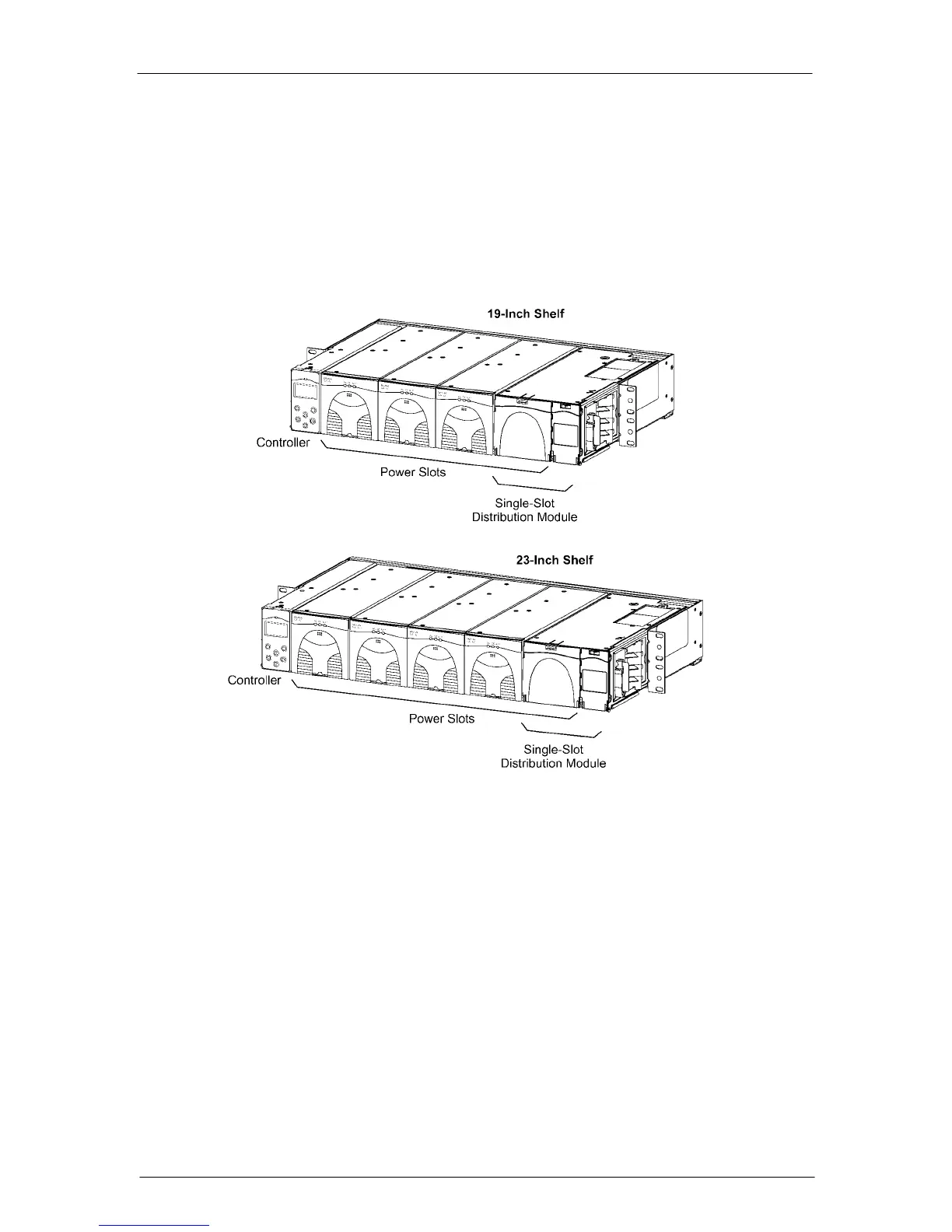

Power Slots support Rectifiers, Ringer Chassis, and Distribution Modules. Figure 2-3 shows
the show the locations of the CPS6000 components in the19-inch and 23-inch shelves with
the Single-Slot Distribution Module.
Figure 2-3: CPS6000 Systems with Single-Slot Distribution Module
