CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 16 May 2006 78

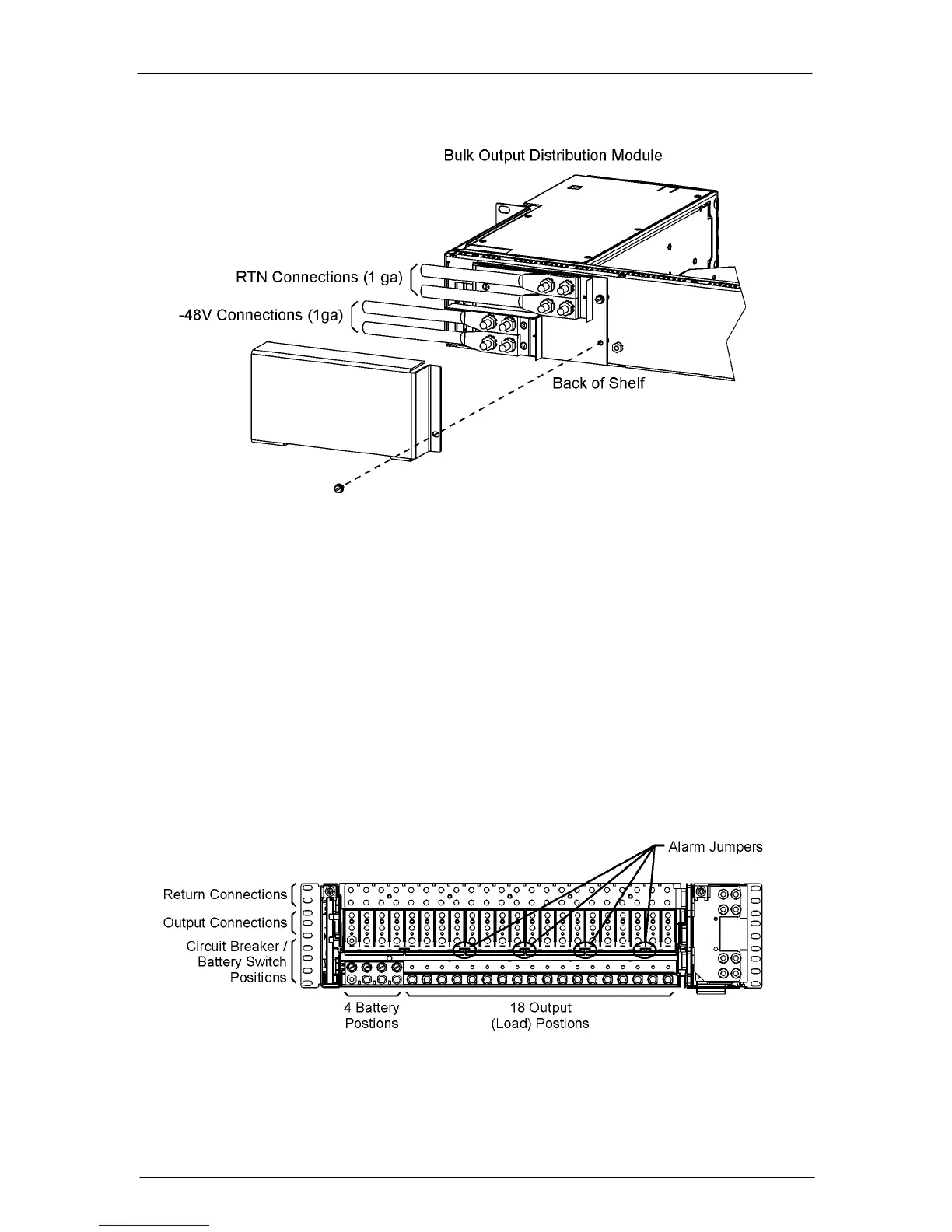

Figure 5-26c: Rear Bulk Output Load Connections
Battery and Load Connections - External DC
Distribution Panel
Battery Cable Connection
Dress battery cables internal to the equipment frame up the right side of the frame to enter the
top of a Group 163 distribution panel of H5694720 arranged for battery input.
Group 163 distribution panels are typically factory configured with four positions for battery
input and eighteen positions configured for load outputs.
Figure 5-27: Distribution Factory Configuration
