CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 16 May 2006 90
Auxiliary Alarms
Distribution Module
Four auxiliary alarm inputs are provided, auxiliary inputs 1 through 4, and are configurable
through RS-232 interface of the controller. Auxiliary alarm inputs can be made on the AMM
board. Remove the Distribution Module side cover and AMM board for access to the
connector as shown. The auxiliary alarm input connector pin assignments are shown below.

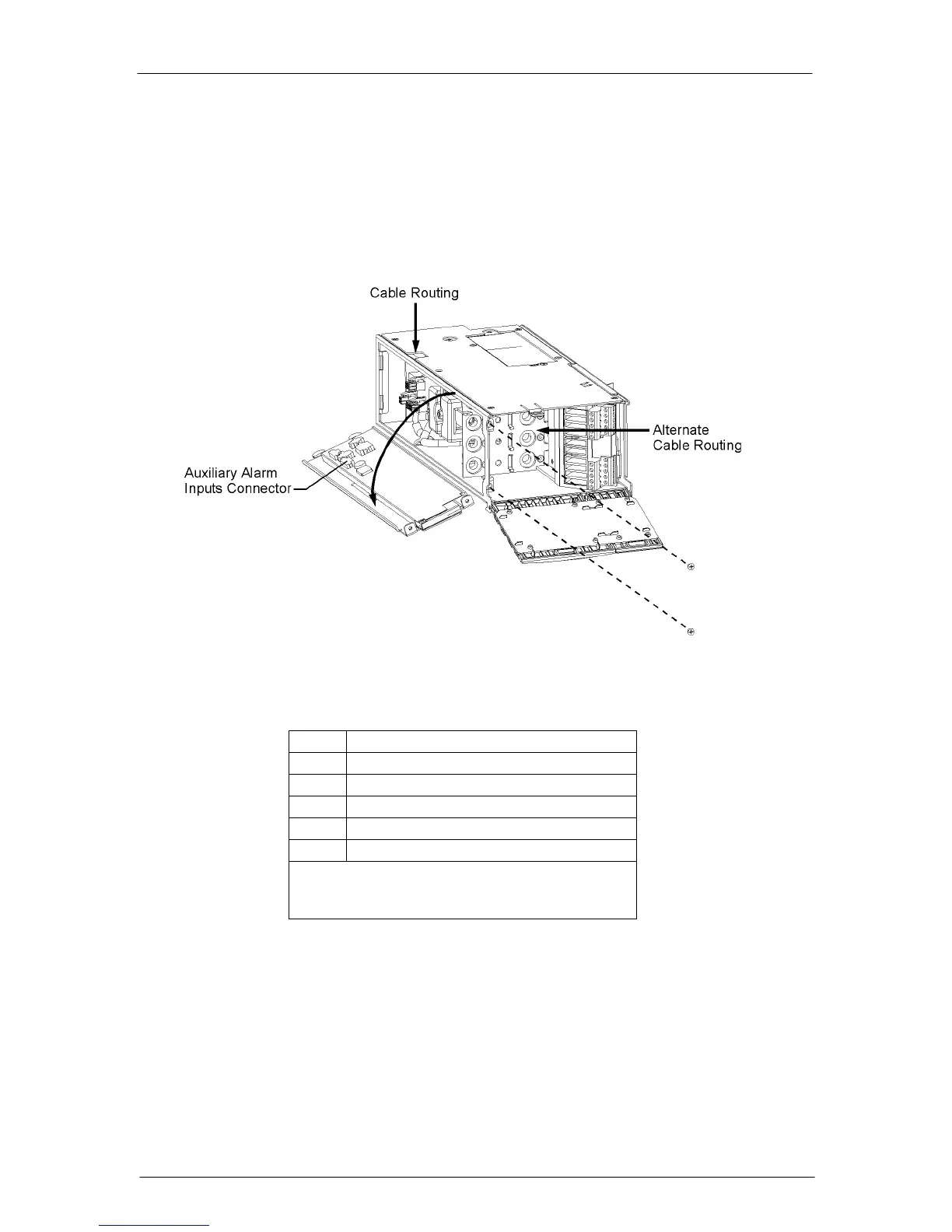

Figure 6-2: P5 Auxiliary Alarms Connector
Pin
Alarm*
1 Auxiliary 1
2 Auxiliary 2
3 Auxiliary 3
4 Auxiliary 4
5 Return (Vminus/Battery)
*Alarms are generated by connecting alarm contact
inputs to Vminus, typically through a clean relay
contact from the monitored device.
Mating connector information for this 4-pin connector is as follows:
Housing: Amp part number 1445022-4
Contact (on a strip): Amp part number 794606-2
Contact (loose piece): Amp part number 794610-2
