CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 16 May 2006 91
Bulk Output Module
A fuse alarm input for monitoring an external distribution is available on the Bulk Output
Module on connector J3, pin 1 (Figure 6-3).

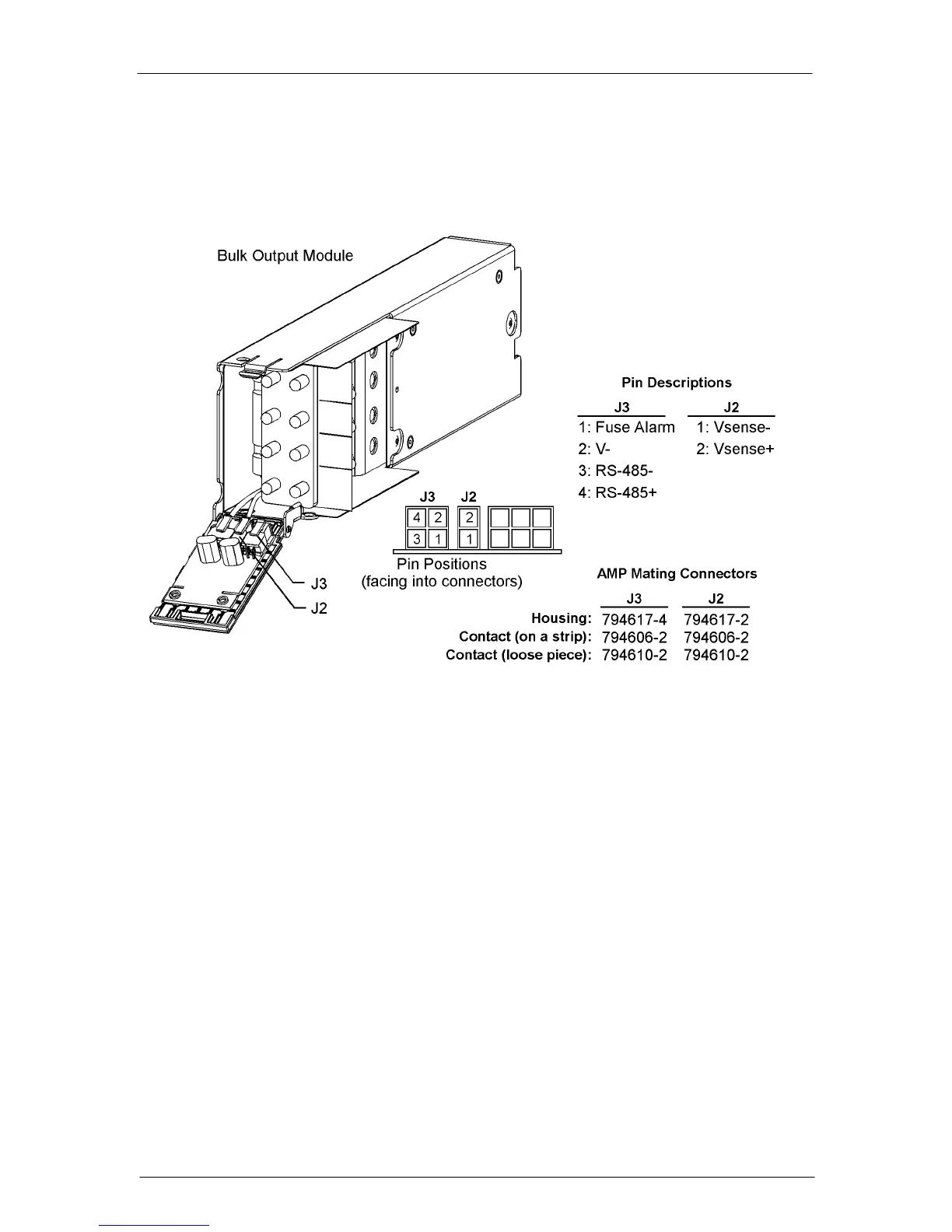

Figure 6-3: Bulk Output Module Connectors
The input can be connected to a relay which provides system voltage on alarm. Pin 2 (V-) can
be used to provide system voltage with a clean relay contact.
Additional Bulk Output Module Connections
Vsense-, Vsense+
Pins 1 and 2 (Vsense- and Vsense+) on J2 are wired to monitor system voltage internal to the
Bulk Output Module. To monitor system voltage externally, unplug the mating connector
from J2 and connect Vsense- and Vsense+ to the external source to be monitored.
