CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 16 May 2006 77
Load Connections - Bulk Output
Bulk Output Distribution Option
Load connections are made to the Bulk Output Distribution Module as shown in Figures 5-
26a or 5-26b or 5-26C

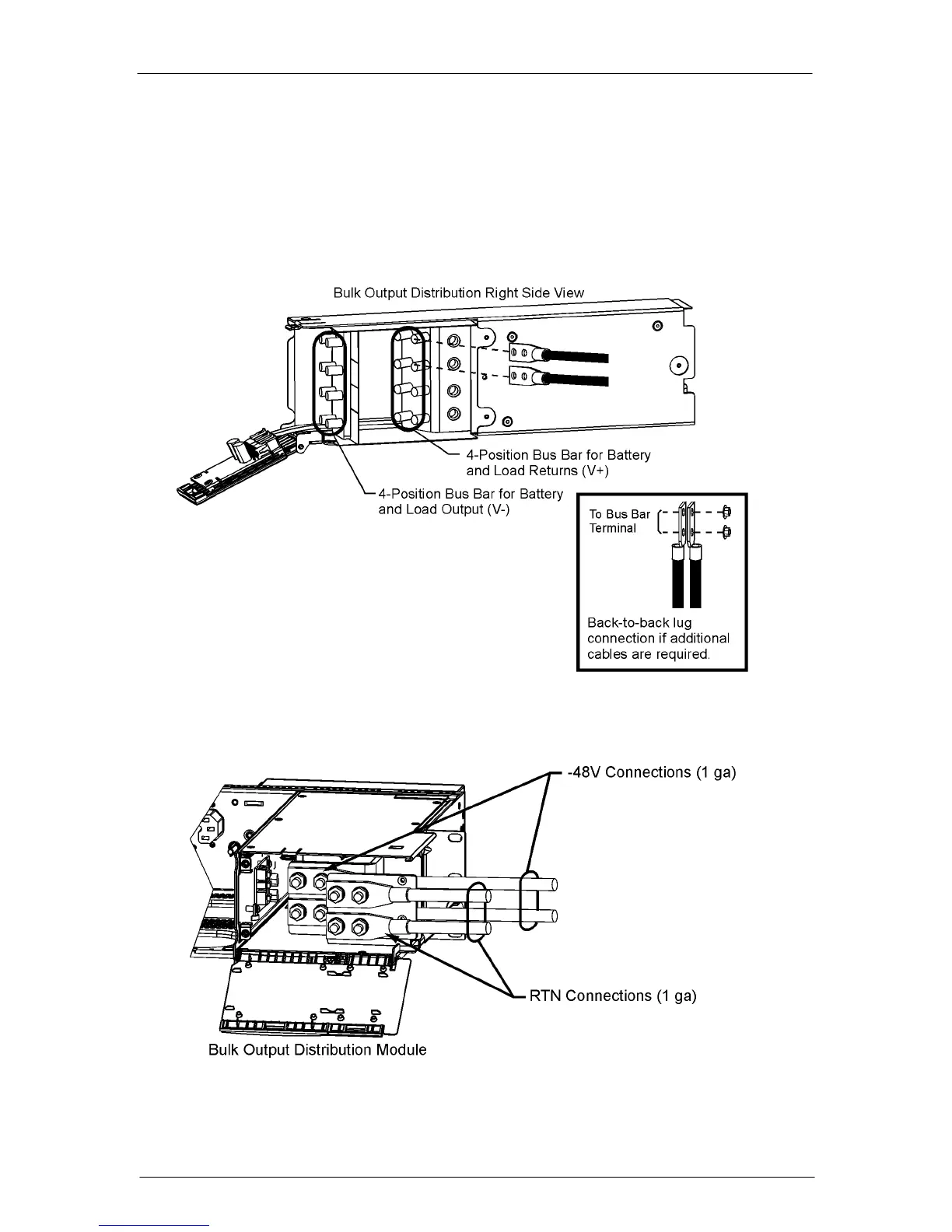

Figure 5-26a: Front Bulk Output Load Connections – up to 2Awg
Figure 5-26b: Large Cable (1Awg) Bulk Output Load Connections
