Circuit Breaker and Fuse Installation

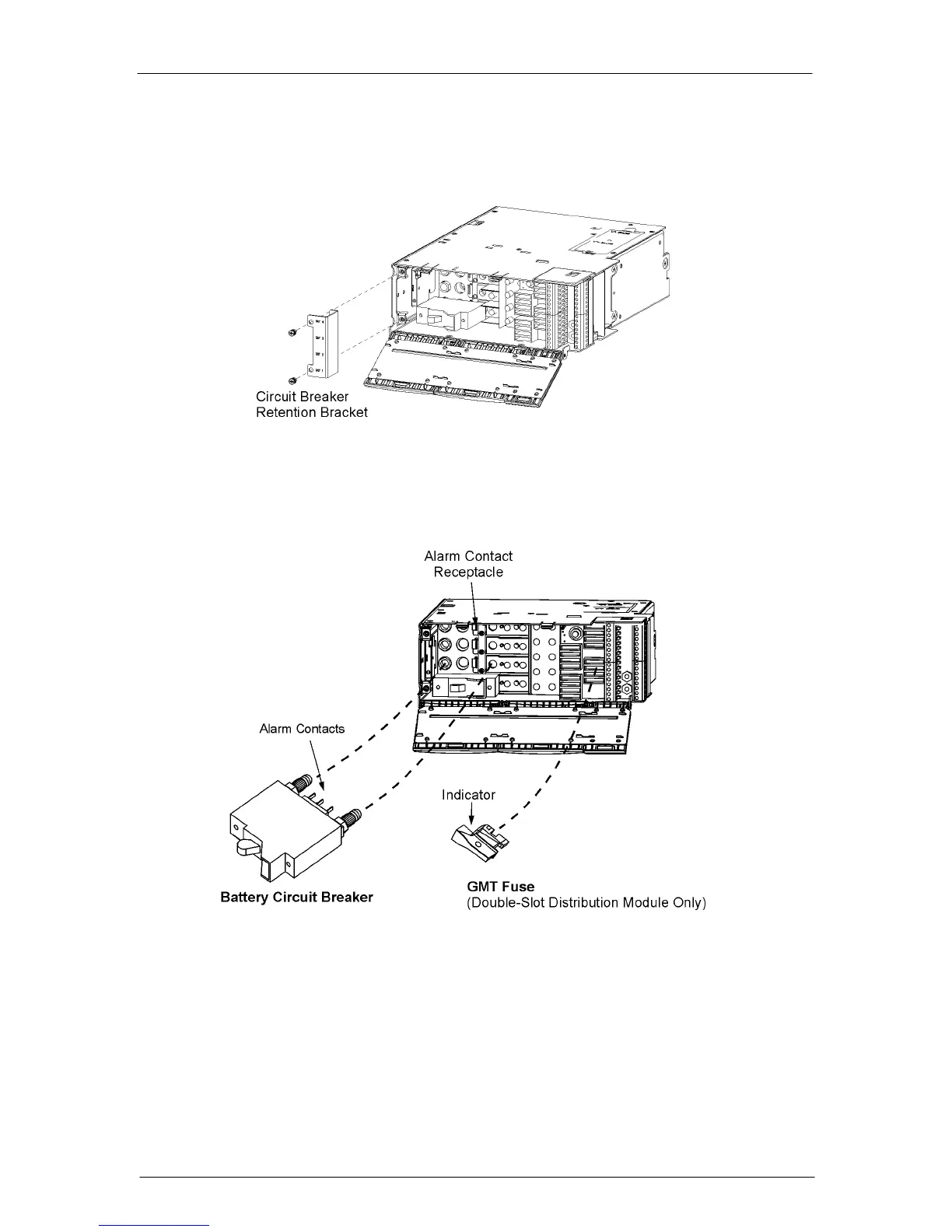

Figure 5-23 and 5-24shows the proper circuit breaker and fuse orientation for installation.
Retention bracket may or may not be provided with all configurations.
Figure 5-23: Circuit Breaker Retention Bracket
Figure 5-24: Circuit Breaker and Fuse Installation
