If the left and right brakes are
not operated simultaneously,
braking force is applied only to
one side, leading to a danger-
ous situation. Make sure to
adjust the left and right pedal's
play to the same level.
After adjustment, confirm the
operating state.
•
•
WARNING
Clutch Pedal Brake Pedal
20~30mm
30~40mm

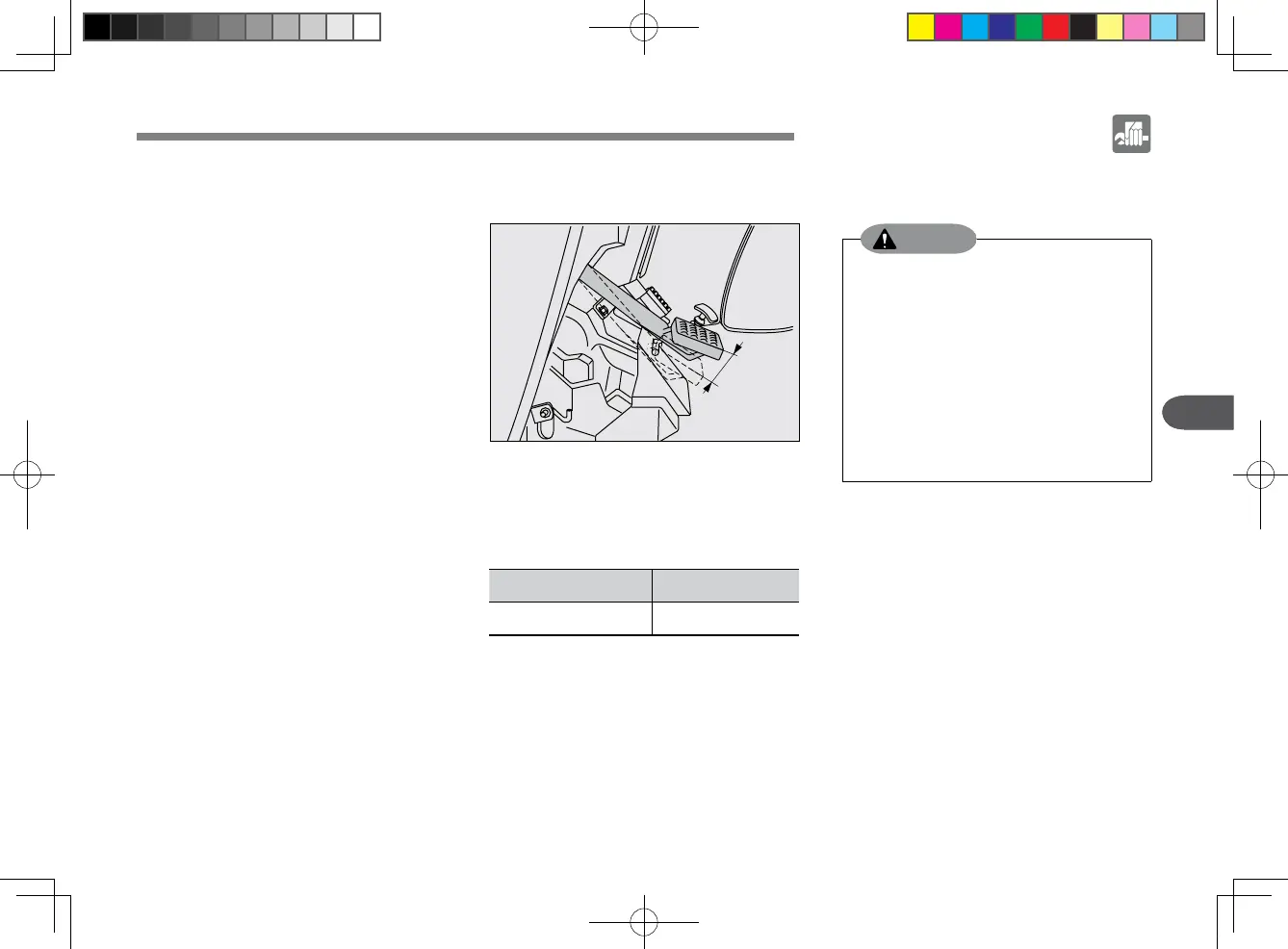

PR OPER FRE E PLAY OF
CLUTCH/BRAKE PEDAL
Press the pedal with a hand gently
to check its play.
►
<Adjustment>
①
Unscrew the lock nut and turn
the adjusting nut to adjust the
play (left and right).
②
Turning it counterclockwise in-
creases the play while turning it
clockwise decreases the play.
③
After adjustment, tighten the lock
nut firmly.
To Next Page
