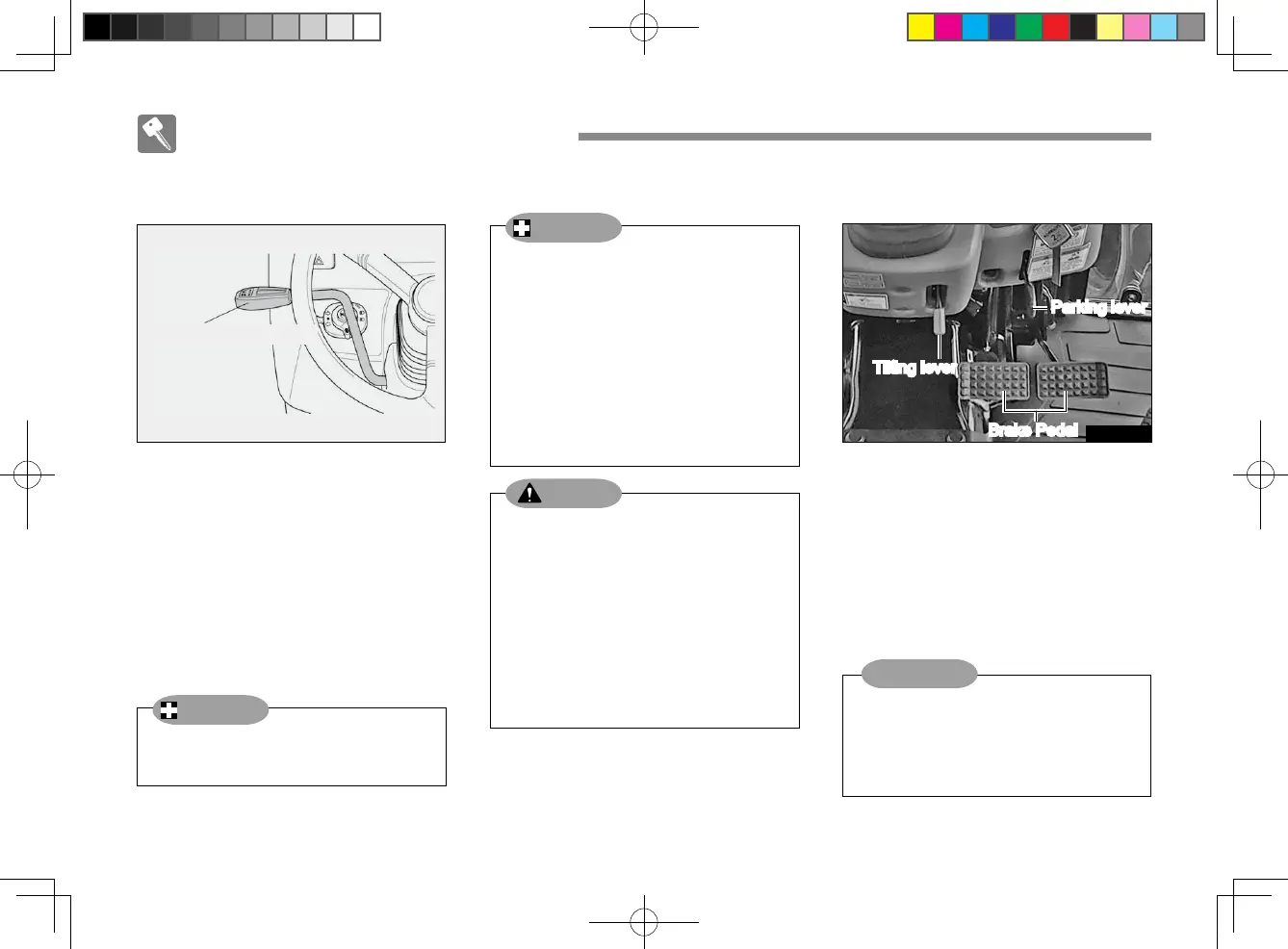

PARKING BRAKE LEVER
①
With the right brake pedals inter-
locked, depress the brake pedal
with a right foot rmly and pull up
the parking brake lever to lock
the pedals.
②
To release the parking brake, de
-
press the brake pedal rmly.
►
The brake discs can be worn
prematurely if driving the ve-
hicle with the parking brake en-
gaged partially.
•
NOTE
This control allows shifting from
forward to reverse & reverse to
forward. When stationary set the
lever to "N" for neutral.
•
Push the lever away from the
driver engages forward.
•
Pulling the lever towards the driver
engages reverse.
T72O316A
SHUTTLE SHIFT LEVER►
When changing from forward
to reverse or back to forward
again while in high range
make sure the tractor comes
to a stop before changing
direction. Failure to do so is
likely to result in damage to
the mechanism and place the
driver at risk of injury.
Shuttle Shift Lever
CAUTION
Operate the shuttle shift only
while seated on the tractor.
Do not use the shuttle shift
lever to start the tractor for
towing or traveling uphill, use
the clutch instead.
Always stop the tractor before
getting off.
Press clutch pedal fully before
operating shuttle shift lever.
IMPORTANT
IMPORTANT
T4NO231A
Brake Pedal
Tilting lever
Parking lever
