REPLACING LAMP BULB
If a lamp does not come on by oper-
ating the corresponding switch:
① Check the corresponding fuse.
② If the fuse is intact, remove the
bulb socket from the lamp.
③ Remove the bulb from the socket
and check for blown lament.
④ If the lament is blown, replace
the bulb with a new bulb with the
same capacity.
►
Bulb Specifications
Headlamp
12V H4 55W
Turn signal lamp
(Front)
12V 21W
Turn signal lamp
(Rear)
12V 21W
Position lamp
(Front)
12V 5W
Stop lamp/
position lamp
12V 21W / 5W
Instrument cluster
lamp
12V 3.4W
Work lamp(
Rear)
12V 25W
CHECKING AND ADJUSTING
BRAKE PEDAL
Checking and adjusting brake pedal
The brake pedal's play increases as
it is used for an extended period of
time.
Its balance is changed as well.
If its play is excessive, adjust it.

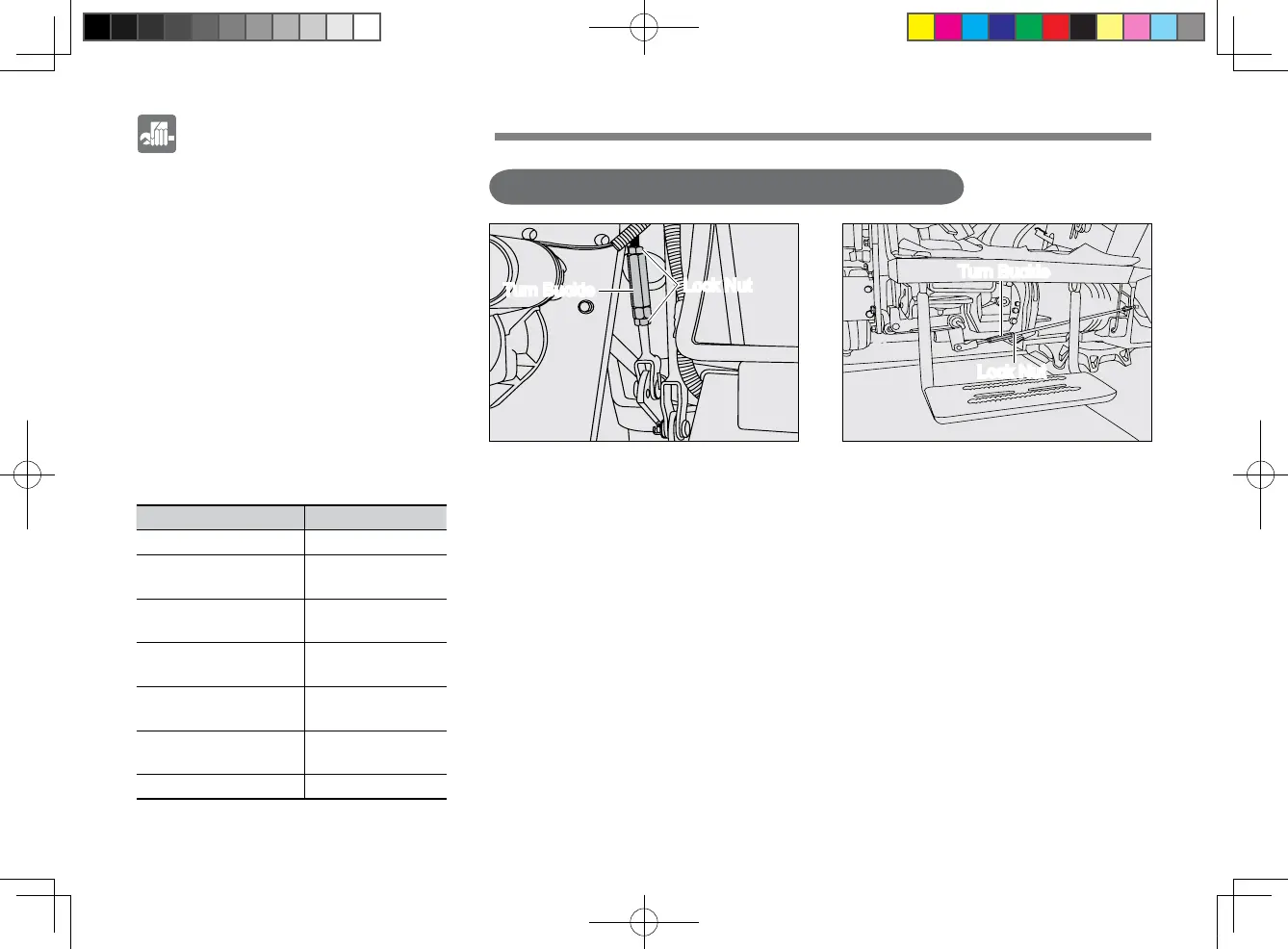

► ADJUSTING CLUTCH PEDAL
INCHING CABLE
After prolonged use of the clutch
pedal, play of its inching cable can
become excessive.
<Adjustment>
①
Open the side cover (left).
②
Loosen the lock nut and turn the
turnbuckle to adjust the free play
to the proper level.
③
After adjustment, make sure to
tighten the lock nut firmly.
④
Close the side cover.
►
12. CHECK AND ADJUST EACH PART
Lock Nut
Turn Buckle
Turn Buckle
Lock Nut
T0407 T0499
