AUX. HYDRAULIC VALVE
(1) How to engage coupler
①
Clean the couplers on the tractor
and implement thoroughly.
② Remove the dust cover from the
tractor side. Then, fit the male
coupler on the implement side
while moving its external ring
backward slightly.
③
Pull the male coupler on the im-
plement side backward slightly
to check its rm engagement.
►
(2) How to disengage coupler
①
Lower the implement on the
ground to release pressure in
the hydraulic hose.
② Stop the engine and operate the
remote hydraulic lever to remove
any residual pressure in the
hose.
③
Disconnect the male coupler on
the implement side while mov-
ing its external ring on the tractor
side backward slightly.
④
Wipe oil and dust from the cou-
pler and plug the dust cover.

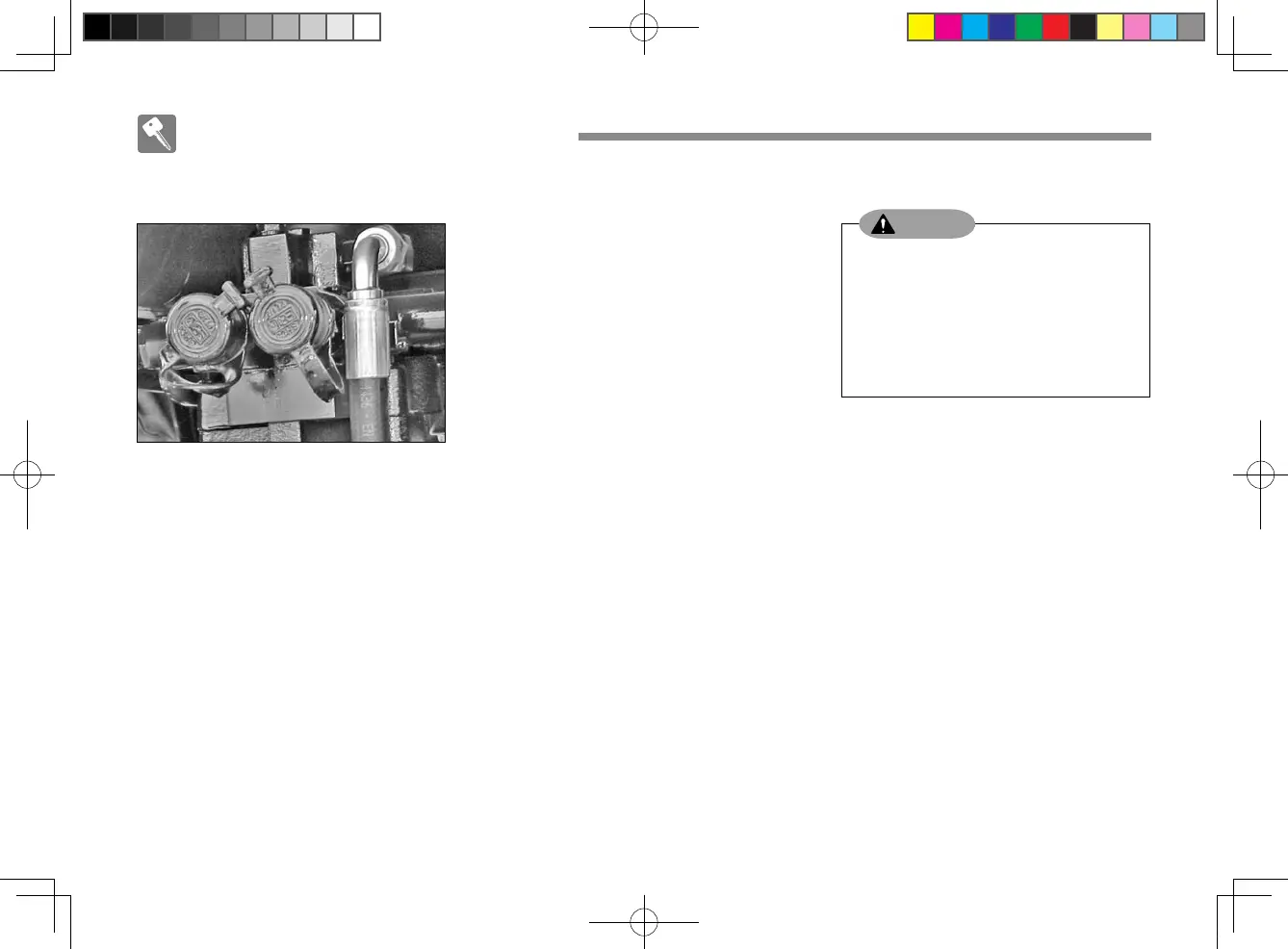

T4NO235A
To prevent a burn and skin
damage, make sure to stop the
engine before connecting or
disconnecting the coupler.
Do not use your hands to check
for oil leakage.
•
•
WARNING
