TYM T474 User Manual

DESCRIPTION OF TRACTOR CONTROLS
2
2 - 33
T39O324A
Top link
adjustment
T39O325A
Check link
T39O326B
Rotary
mounting hole
Check link
mounting hole
Lower link

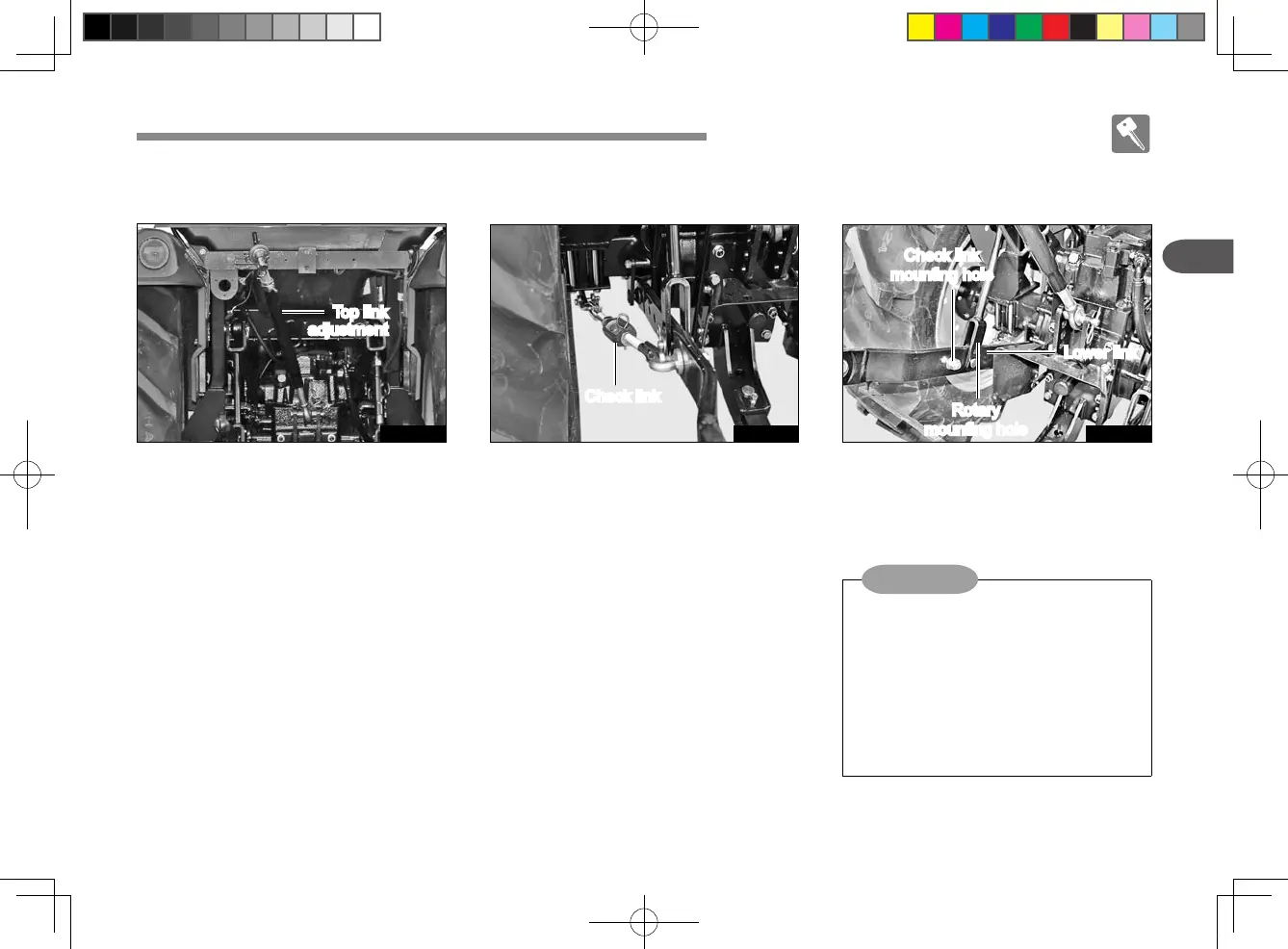

CHECK LINK
The check link can be adjusted to
relieve vibration and shock of an
implement.
► LOWER LINK
An implement can be attached to
this. The installation type is Catego-
ry I.
►
Wh e n no i m p l emen t i s at-
tached, fix the lower links with
the left and right check links so
that they do not touch the rear
wheels.
Engage the top link with the
hook.
•
•
NOTE
TOP LINK ADJUSTMENT
(1) The angle of an implement can
be adjusted by extending or re-
tracting the top link.
(2) After adjustment, fix the adjust-
ing lever with its mounting nut.
►
T474NH-영문-02(나).indd 33 2019-06-14 오전 9:50:23

TYM T474 Specifications

General

Engine Type	Diesel
Transmission Type	Synchro Shuttle
3-Point Hitch	Category I
Lift Capacity	2, 646 lbs
Drive	4WD
Front Tire Size	8-16
Rear Tire Size	12.4-24
Hydraulics Type	Open center
PTO Speed	540 rpm
Number of Speeds	12 forward / 12 reverse
Fuel Capacity	11.9 gallons
Gears	12 forward / 12 reverse
