REPLACING TRANSMISSION
FLUID FILTER CARTRIDGE
① The HST oil filter is located under
the floor.
② Remove the hydraulic oil filter
element by turning it counterclock-
wise with a wrench.
③ Apply a thin film of oil to the O-ring
of a new cartridge and install the
new cartridge by tightening it with
a hand. When its packing touches
the sealing surface, turn it approx.
2/
3 turns further with a wrench.
④
Add hydraulic oil to the specified level.
⑤
Check the oil level with the dipstick
again. If still insufficient, add more.
►
If oil gets on your skin, it can ir-
ritate the skin and cause a skin
condition. Make sure to clean
your skin with soap and water
or hand cleaner thoroughly.
Make sure to cool down the
engine sufficiently before drain-
ing oil. Oil is very hot and can
cause a burn if changing oil
right after the engine is stopped.
•
•
CAUTION

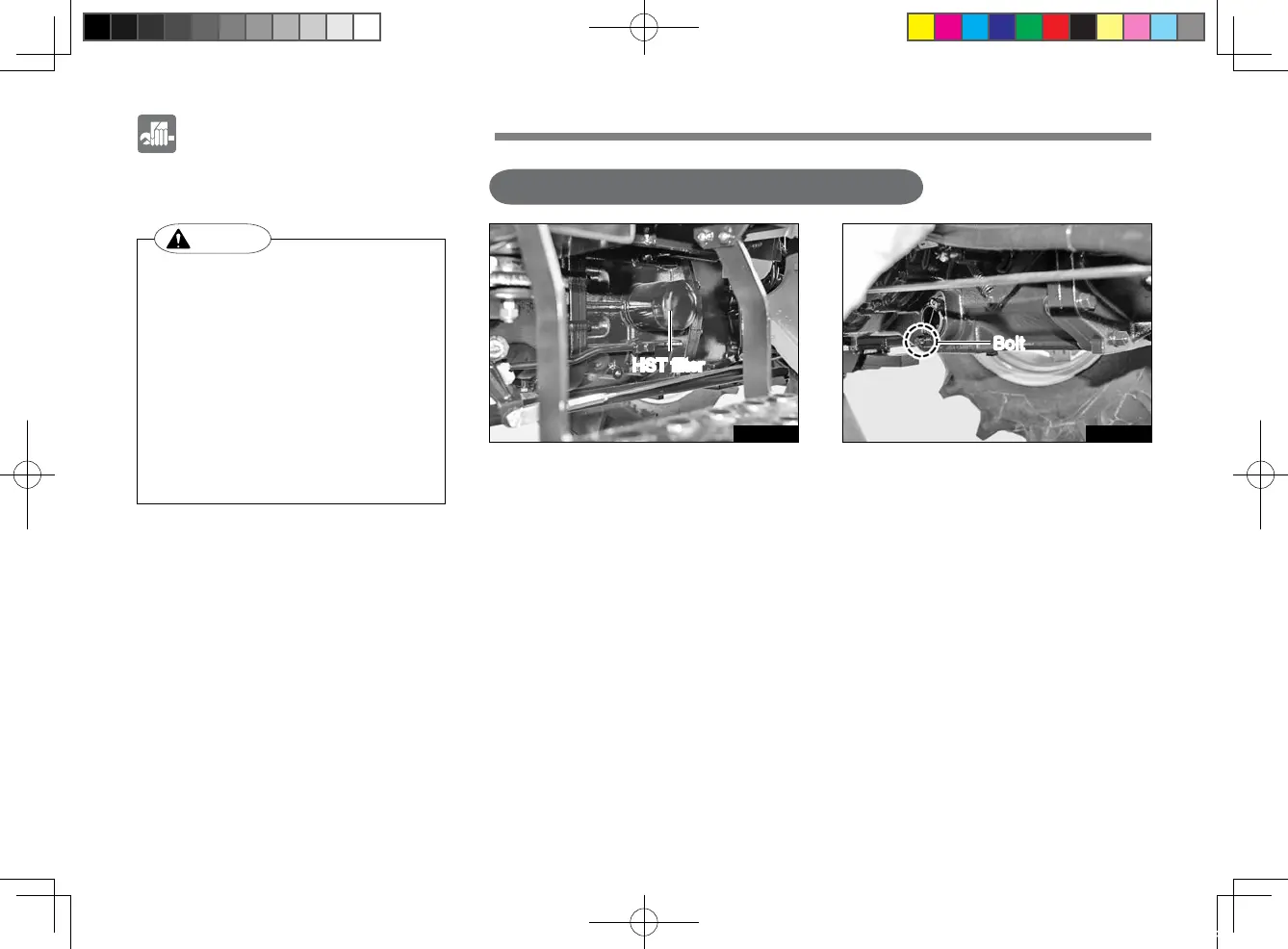

T39O510A
HST filter
5. REPLACING FILTER AND CARTRIDGE
TRANSMISSION STRAINER
CLEANING
① When changing transmission fluid,
clean with diesel fuel.
② Unscrew the filter body support bolt
from the right lower section of the
rear transmission case and gently
pull the filter with pliers to remove
it.
►
T39O511A
Bolt
