TYM T474 User Manual

5 - 21
MAINTENANCE AND SERVICE
43
5

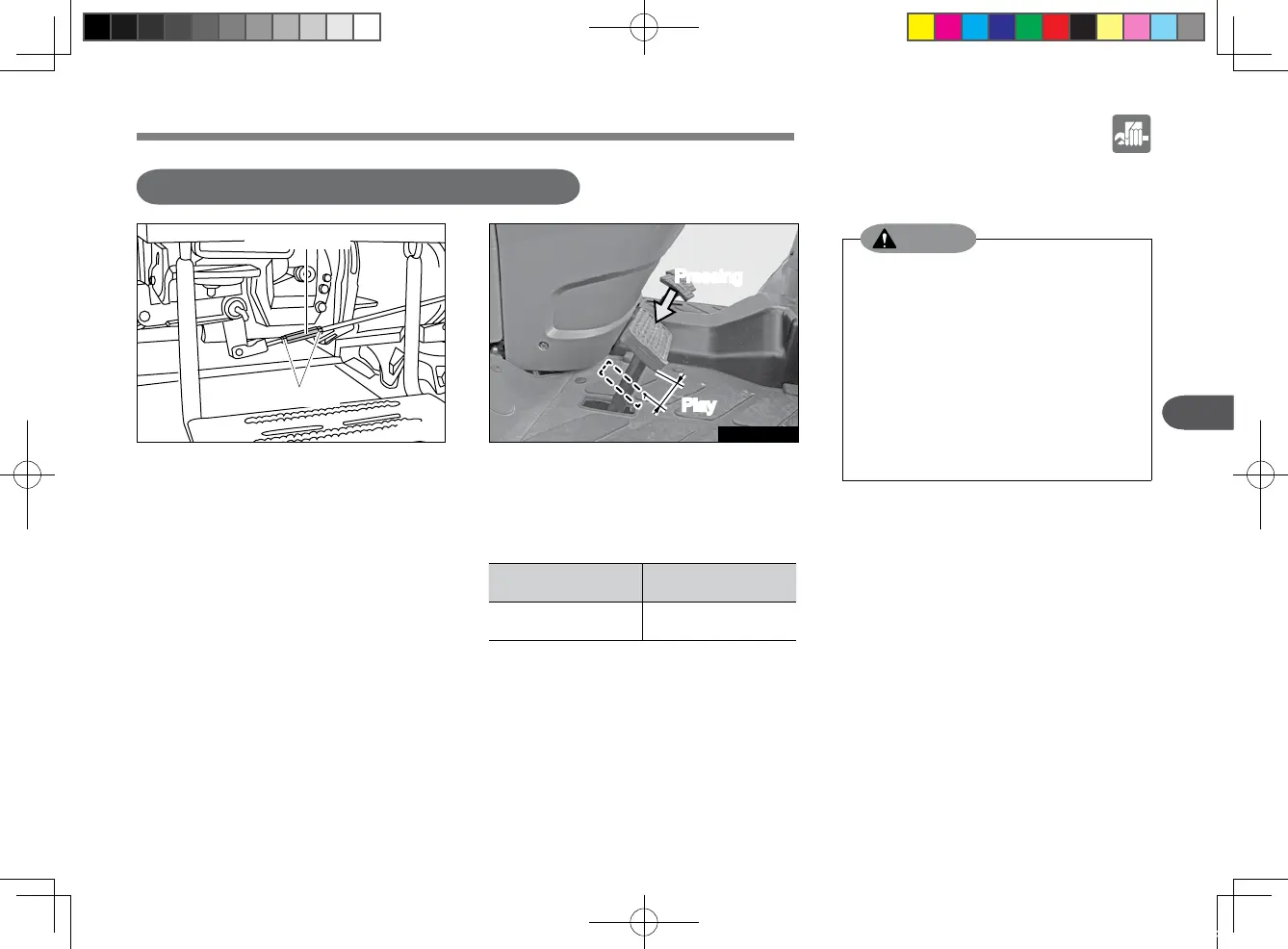

CHECKING AND ADJUSTING
BRAKE PEDAL
The brake pedal's play increases as
it is used for an extended period of
time.
Its balance is changed as well.
If its play is excessive, adjust it.
<Adjustment>
① Unscrew the lock nut and turn the
adjusting nut to adjust the play (left
and right).
② Turning it counterclockwise in-
creases the play while turning it
clockwise decreases the play.
③ After adjustment, tighten the lock
nut firmly.
►
12. CHECK AND ADJUST EACH PART
Lock nut
Turn buckle
T0499
If the left and right brakes are
not operated simultaneously,
braking force is applied only to
one side, leading to a danger-
ous situation. Make sure to
adjust the left and right pedals'
play to the same level.
After adjustment, confirm the
operating state.
•
•
WARNING
BRAKE PEDAL PLAY
Depress the pedal lightly with a
hand to check its play.
►
T253O538A
Play
Pressing
division Specified value
Play 30~40㎜
T474NH-영문-05(마).indd 21 2019-08-16 오전 11:30:47

TYM T474 Specifications

General

Engine Type	Diesel
Transmission Type	Synchro Shuttle
3-Point Hitch	Category I
Lift Capacity	2, 646 lbs
Drive	4WD
Front Tire Size	8-16
Rear Tire Size	12.4-24
Hydraulics Type	Open center
PTO Speed	540 rpm
Number of Speeds	12 forward / 12 reverse
Fuel Capacity	11.9 gallons
Gears	12 forward / 12 reverse
