EN – 43

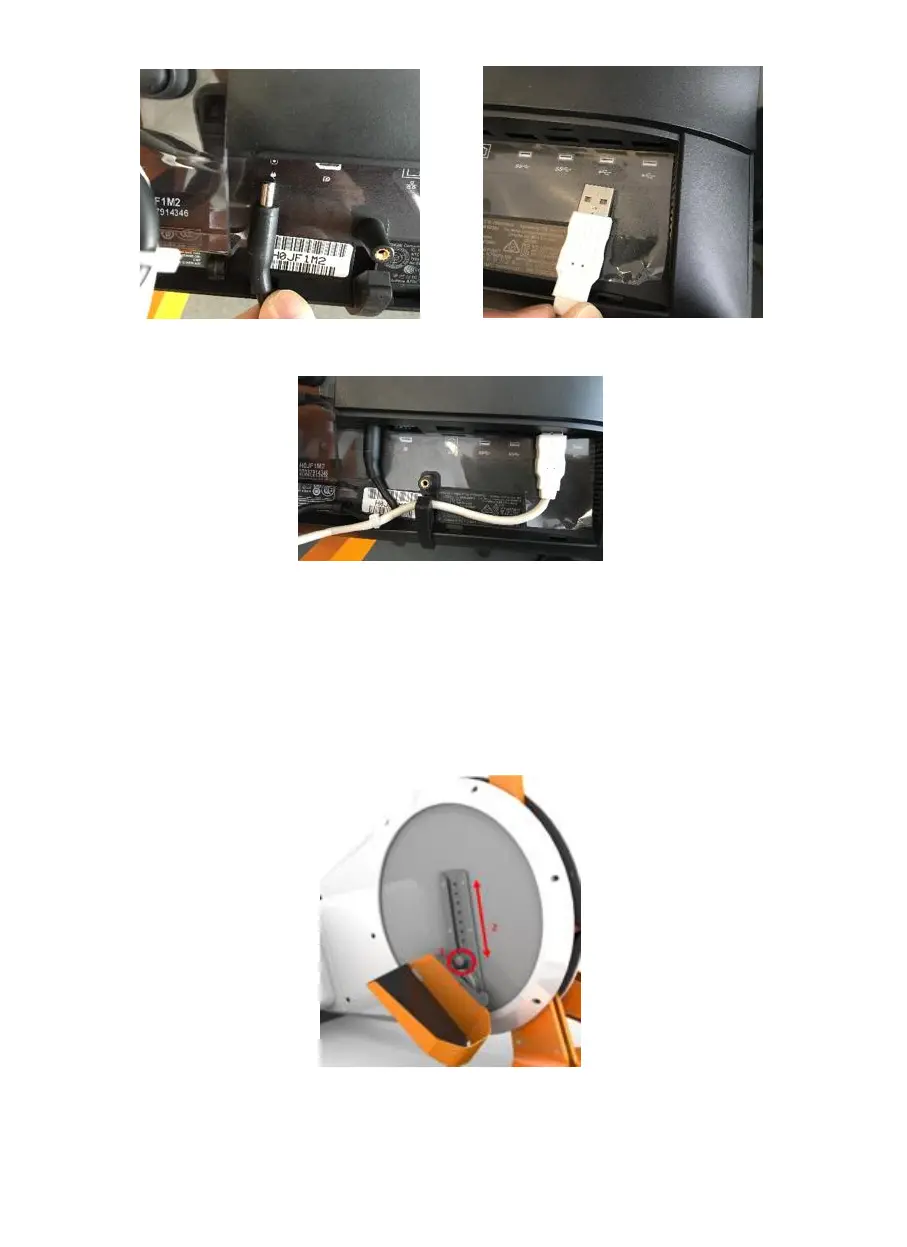

Image 27: Connect power cable Image 28: Connect USB cable
Image 29: Position of the connections
Mounting the foot rests
As a final step, mount the foot rests. Choose the desired foot rests, pull out the catch
bolt and on the slides, push the foot rests into position. Let go of the catch bolt as soon
as you have found the desired position and it will automatically lock in place. Also see
chapter 2.3.3.
Image 30: Mounting the foot rests
