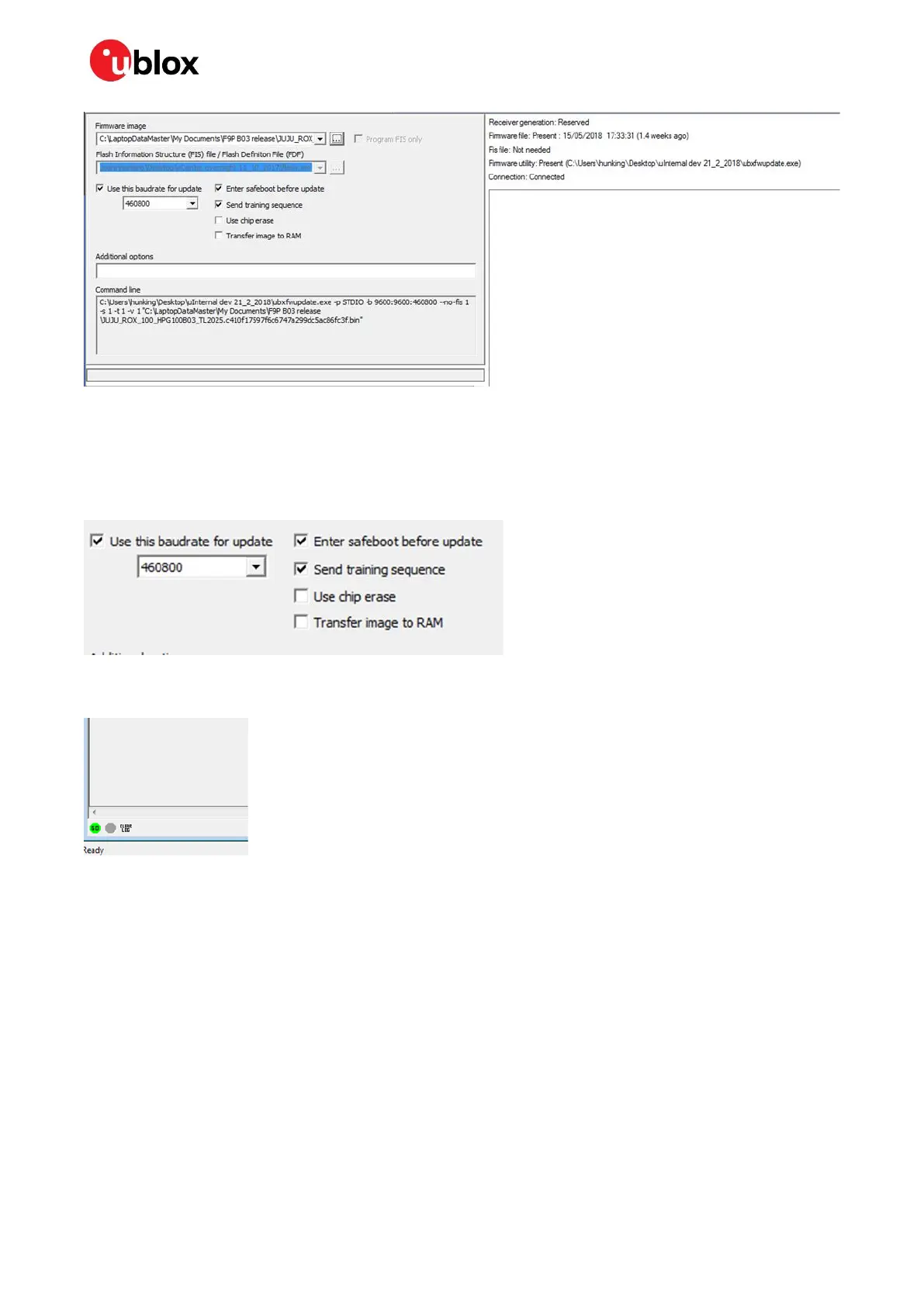

Figure 27: Selecting u-center Firmware image folder
3. At the top is the Firmware image file selection window. Click the button on the right of the window.
This allows you to select the folder and file. Select the new firmware image bin file.
4. Select Enter safeboot before update and Send training sequence. Select the Use this baudrate
for update option and select e.g. 460800 from the drop-down list. This is shown in Figure below.
Figure 28: Setting the required baud rate, safeboot and training sequence options
5. Click the GO button in the bottom-left corner of the window to begin the download.
Figure 29: Click GO for firmware update
The firmware update progress is shown adjacent to the input window.
When programming is complete, the module starts up in a default configuration, in which the
ZED-F9P serial port is set to 38400 baud. Change this to 460800 baud to provide sufficient data
bandwidth and work correctly with the ODIN-W2 module. To make the baud rate change persistent,
make the selections shown in Figure .
