Chapter 5: Interconnections
38
PDXI- AO-8[16][32] Connectors
The PowerDAQ PD2-AO-8[16][32] boards have only one
connector:
96-contact high-density Fujitsu header – analog output and
DIO/Timers connector (J1)

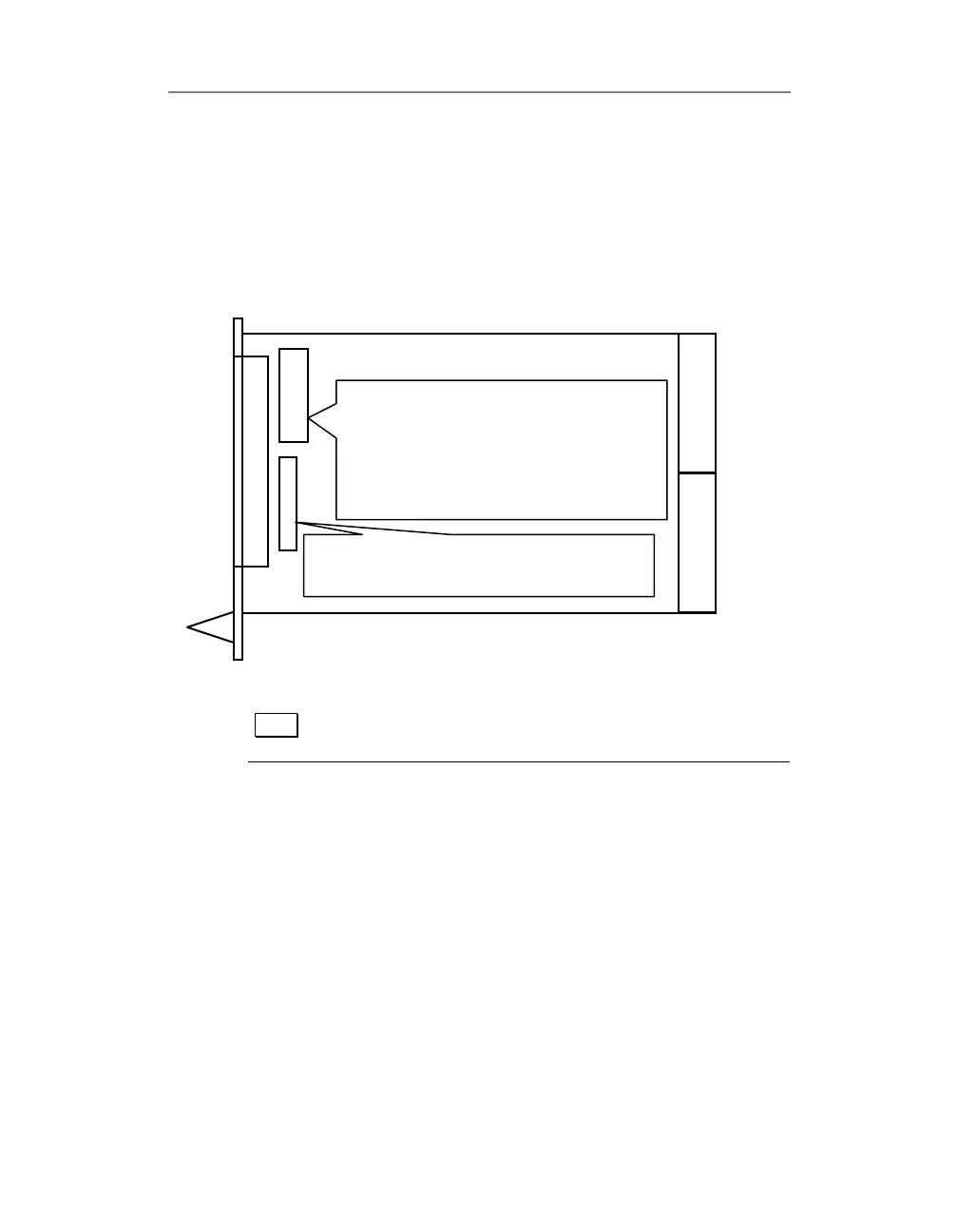

Figure 7: PowerDAQ™ PDXI-AO-8[16][32] Connectors
Note For manufacturers part numbers,
see Appendix A:
Specifications
.
PowerDAQ™ PDXI-AO-8[16][32]
J1
Channels 0..15 sense line jumpers. Install 1-2 and 3-4
jumpers to short sense line with corresponding output on
the board. SNSx terminals are grounds in this case. Install
2-3 jumpers to keep sense line in the cable. In this case
screw terminal jumpers should be installed. Rows :
A-AOut3, B-AOut2, C-AOut1, D-AOut0,
E-AOut7, F-AOut6, G-AOut5, H-AOut4,
I-AOut11, J-AOut10, K-AOut9, L-AOut8,
M-AOut15, N-AOut14, O-AOut13, P-AOut12
Factory-installed jumpers (PDXI-AO-8[16] boards only).
Connects outputs 16..31 to the analog ground to provide more
grounds in the cable
