Appendix B: Accessories
5
Screw Terminal Panels: (PD-STP-3716)
The PD-STP-3716 is a simple 16-channel screw terminal
panel, which includes connections to the analog signals only.
This terminal panel can be used with PD2-AO-96 and
PD2[PDXI]-AO-8 boards only. Note, that different cables are
required for the different boards:
• PD-CBL-9637 – used with PD2-AO-8
• PDXI-CBL-AO – used with PDXI-AO-8
• PD-CBL-4037TP – used with PD2-AO-96

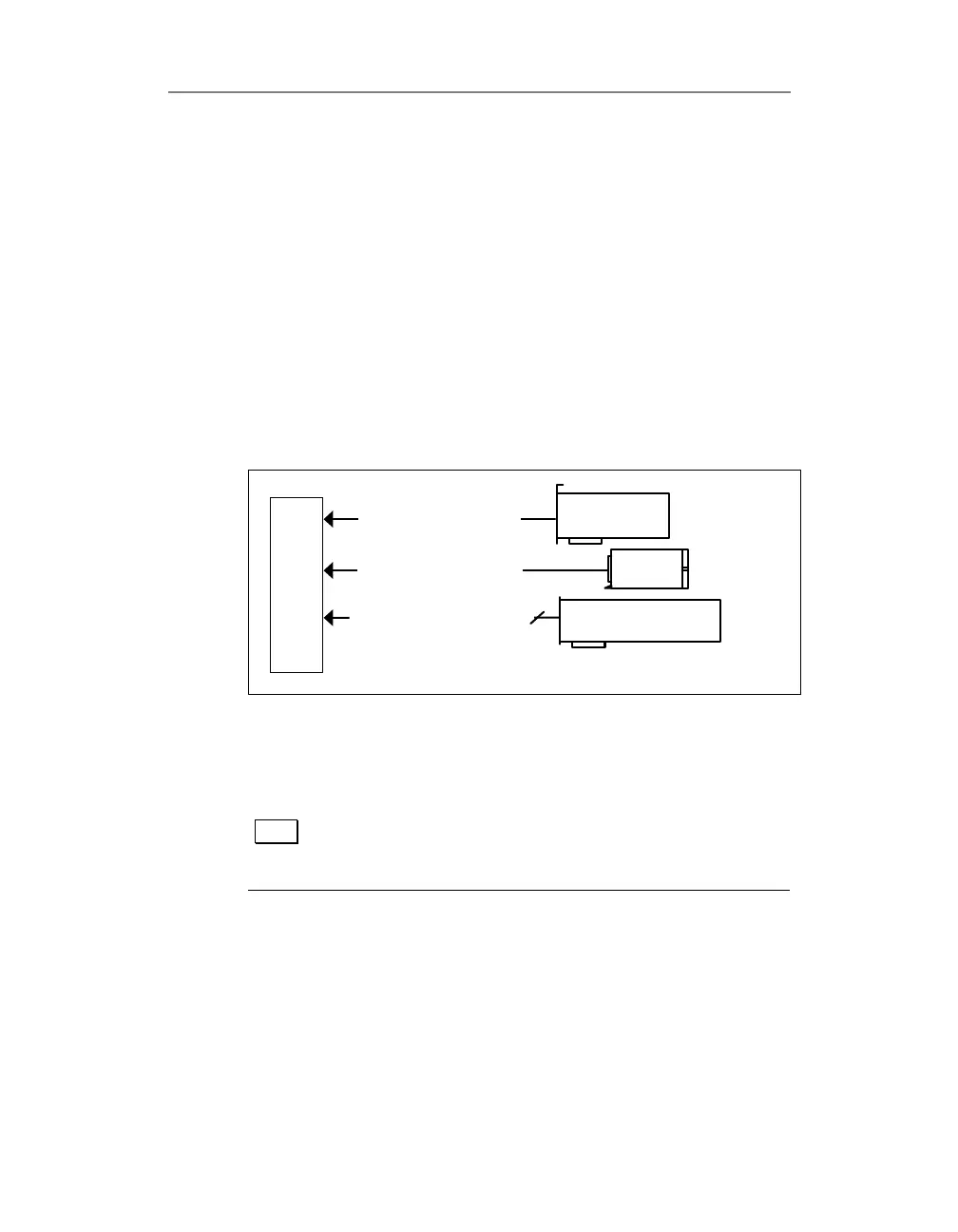

Figure 13: PD-STP-3716 Wiring Diagram
Note That if Sense lines are available on PD2-AO-8 or J6
jumpers in 2-3 position on PDXI-AO-8 AOutx line should be
connected to ASensex line on the screw terminal.
PDXI-AO-8
PD-STP-3716
Cable PD-CBL-9637
Cable PD-CBL-4037TP
Cable PDXI-CBL-AO
PD2-AO-8
PD2-AO-96
