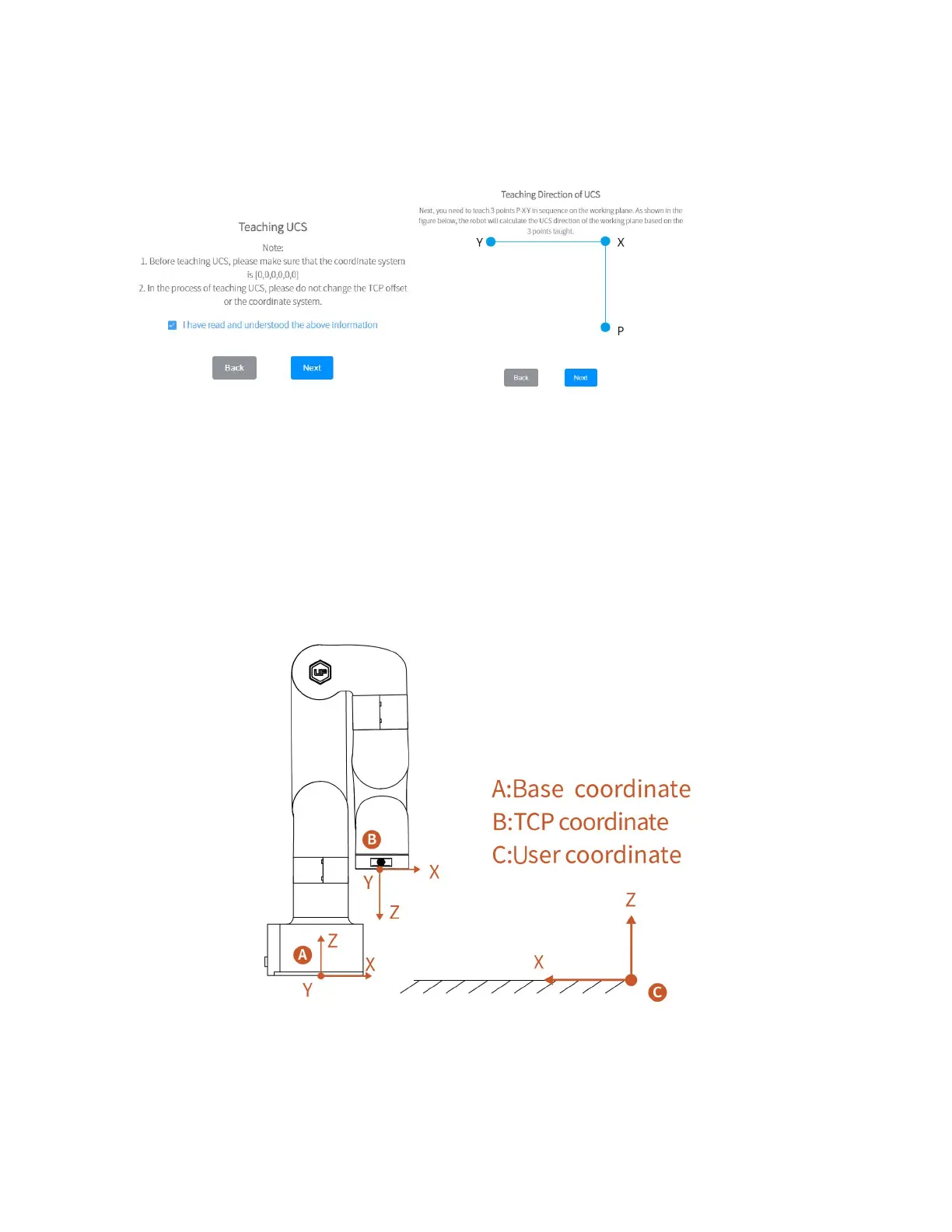

When the base coordinate offset parameter is unknown, you can choose to
teach USC its base coordinate offset parameter.
【Select】: Select the data to be deleted.
【Set as Default】: Set the offset data as the default offset.
【Default】: The data is the default current base coordinate offset.
【Cancel】: Cancel the selection.
【Save】: Save the modified data.
【Discard】: Discard the modified data.
Example:
When expressed in coordinate system {A}:
B is (207,0,112,180,0,0), D
AC
= 1000mm, if user want to set the world reference
coordinate system to {C}, just express the position and orientation of user
coordinate system {C} in coordinate system {A}.
