This Service Manual is intended solely for internal use by the manufacturer and his technical support team or other simi-
larly qualified persons, in order to prevent any risks.
This manual describes the procedures for adjustment, maintenance and repair of the dispenser. For information regarding
ordinary usage by the operator, please refer to the Instruction Manual provided with each dispenser.
1 APPLIANCE’S DESCRIPTION

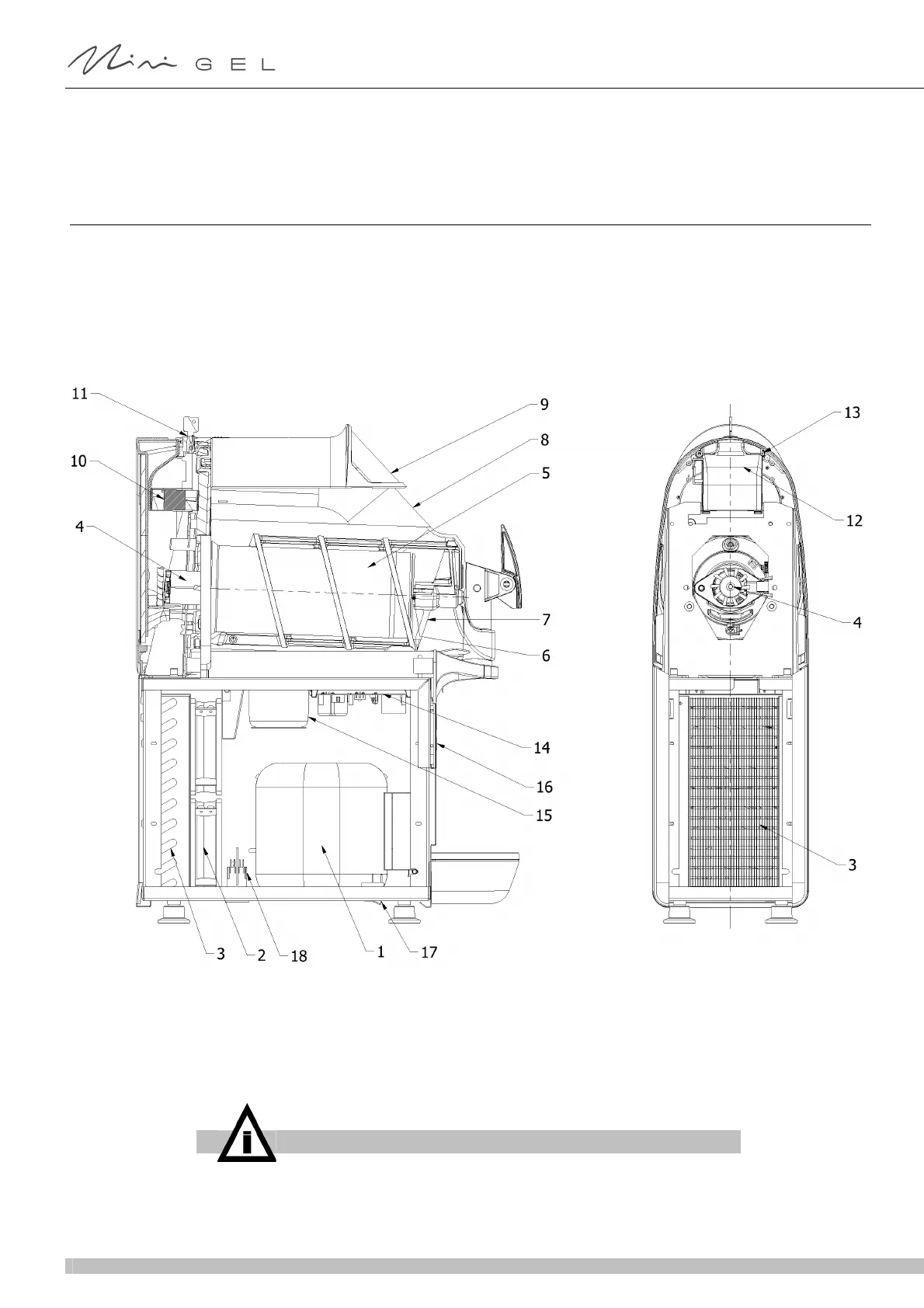

This dispenser is designed for the production of iced or frozen drinks such as crushed ice drinks, ice creams and sorbets. The lower
half of the dispenser contains the cooling system, which consists of a compressor (1), a condenser (3), the related fans (2) and a
solenoid valve to open and close the cooling circuit. The lower half of the dispenser also contains the circuit boards designed to
control operation (14) and (16) and the power supply transformer (15) for both the circuit boards and the geared motor to drive the
mixers.
The upper half of the dispenser contains the transparent tank (8) designed for the food product, which in turn contains the mixer (7)
and the evaporator cylinder (5) which is the unit that chills the product. In addition, the rear of the dispenser houses the electric motor
(4) and the geared motor which drives the mixer, the tank defrosting fan (10) and any LED lamps.
figure 1
The dispenser also features a main ON/OFF switch situated on the left-hand side of the frame underside. In addition, each tank is
fitted with a control panel, situated under the dispenser tap, the functions of which are described below.
IMPORTANT
On dispensers with more than one tank, the ON/OFF key (A) and related indica-
tor light (B) are only present on the control panel of the right-hand tank but their
operation affects the entire appliance. Therefore pressing key (A) will turn all the
tanks on or off and, where featured, it will also turn all the lights on or off.
