Ultimaker S3 Basic Instructions

1

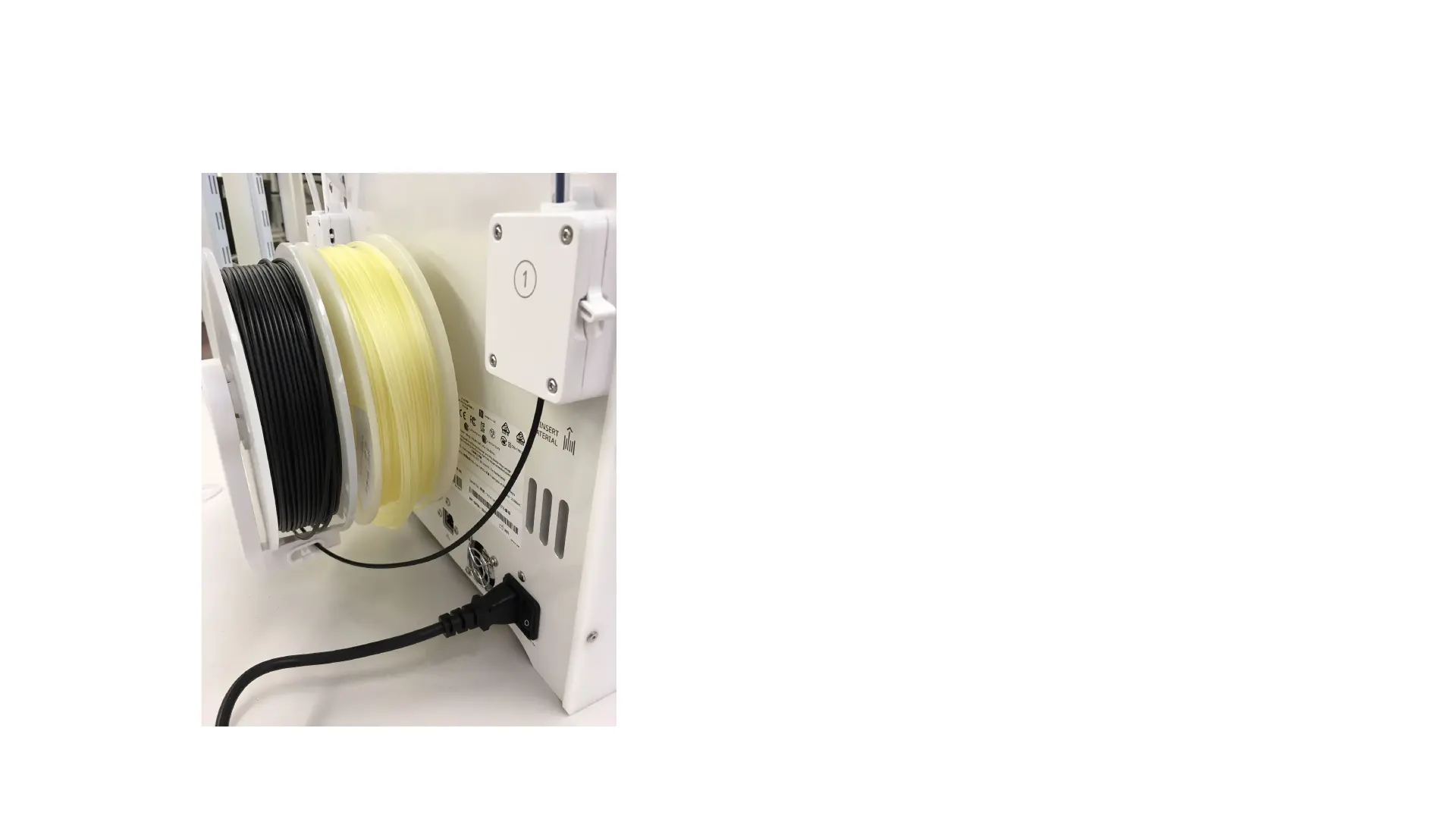

A – Check spool(s) are clear of obstructions and fed
into the feeders.
B – Check clamp(s) are in a down position on feeders.
C – Switch on the printer, and wait until ‘ready to print’
appears on the touch screen.
Do not attempt any maintenance or material changes.
Report these issues.
A
B
C

Ultimaker S3 Specifications

General

Build Volume	230 x 190 x 200 mm
Print Technology	Fused Filament Fabrication (FFF)
Filament Diameter	2.85 mm
Number of Print Heads	2
Print Speed	Up to 24 mm³/s
Heated Bed	Yes
Dual Extrusion	Yes
Operating Temperature	15 - 32 °C
Nozzle Diameter	0.4 mm
Connectivity	Wi-Fi, USB, Ethernet
Supported Materials	PLA, ABS, Nylon, CPE, PC, TPU, PP, PVA, Breakaway
Touchscreen	Yes
Feeder Type	Dual-geared feeder
Build Plate	Glass
Bed Leveling	Automatic
Power Requirements	100-240 V, 50-60 Hz
Layer Resolution	20 - 200 microns (0.0007 - 0.008 inches)
