Ultimaker S3 Basic Instructions

3

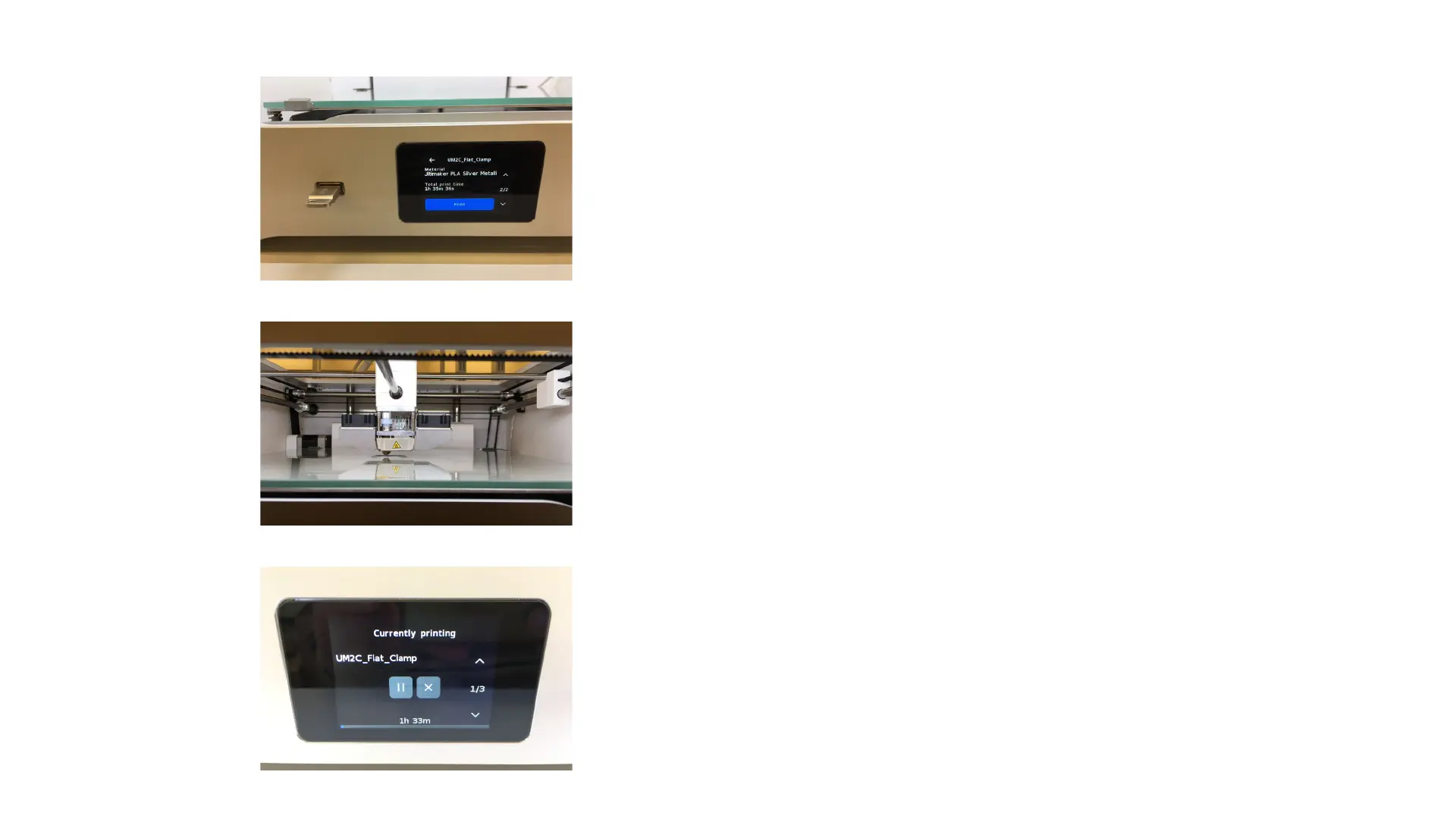

A – Select your file from the list. Scroll to page 2 once the
file is selected to see and check an image of the file. Select
Print. If a material change warning displays, as long as the
materials set in the slicing software match up closely with
those on the printer, it is fine to select ‘print anyway’.
B – Wait at the machine until your file begins to print, in
order to notice any issues that arise during the printer’s
start up procedure. This takes a few minutes. Caution: the
bed and nozzles warm up and become hot to touch during
printing.
C – Note the time it will take to print the file. Return as
soon as possible after the file has been printed. This will
make it easier to remove the printed models from the glass
bed, and frees up the printers for others to use. If you have
used the printer’s USB, clear your file off the stick.
If there is a problem during printing, ‘pause’ or ‘abort’
buttons can be selected. Follow on screen instruction to
complete the chosen procedure.
A
B
C

Ultimaker S3 Specifications

General

Build Volume	230 x 190 x 200 mm
Print Technology	Fused Filament Fabrication (FFF)
Filament Diameter	2.85 mm
Number of Print Heads	2
Print Speed	Up to 24 mm³/s
Heated Bed	Yes
Dual Extrusion	Yes
Operating Temperature	15 - 32 °C
Nozzle Diameter	0.4 mm
Connectivity	Wi-Fi, USB, Ethernet
Supported Materials	PLA, ABS, Nylon, CPE, PC, TPU, PP, PVA, Breakaway
Touchscreen	Yes
Feeder Type	Dual-geared feeder
Build Plate	Glass
Bed Leveling	Automatic
Power Requirements	100-240 V, 50-60 Hz
Layer Resolution	20 - 200 microns (0.0007 - 0.008 inches)
