Ulvac DPG-30R - Error Code, Warning Code Display on the Controller

DC Power Supply [DPG-30R & DPG-MC60R, DPG-MC120R, DPG-MC240R]

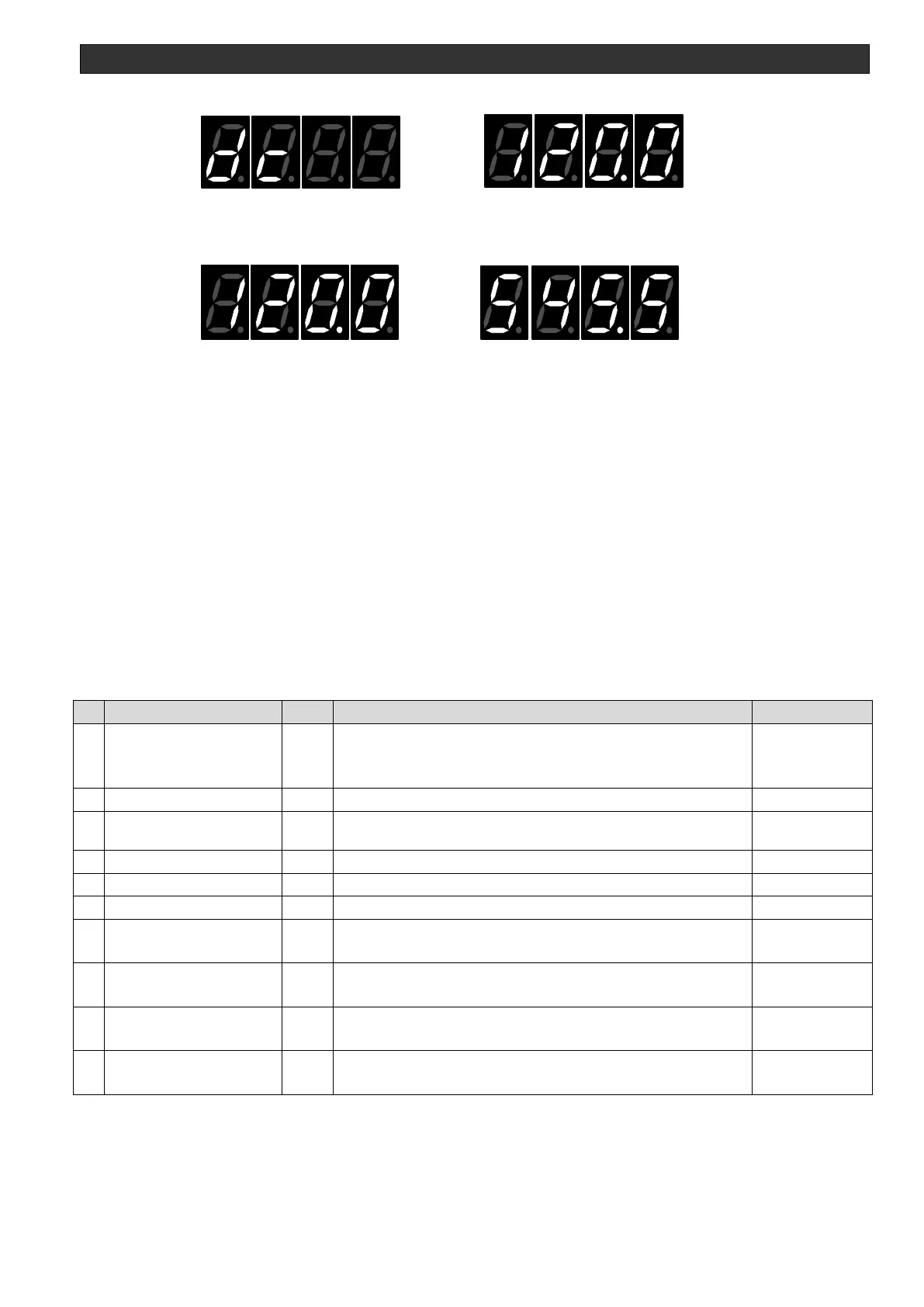

4. Operation
41
HARC
kW
A
MARC
SET
V
3. Monitor display
The display returns to the monitor display.
HARC
kW
A
MARC
SET
V
When the error is reset, the error information for display usage between the last error reset (or
from when the power was turned on) up to this error reset is discarded.
The error reset is sent to the DC power supply at that time, but if the DC power supply remains in
an abnormal state, the error display will return after being cleared. The monitor display after the
error reset is shown in the monitor type (power/current, SET/voltage) before the error reset.
The error reset method is as follows.
1) From the upstream PLC, input error reset signal high -> low (must continue for 100 ms or
longer)
4-1-6. Error code, warning code display on the controller
Error code, warning code list
The error code, warning code, and its contents displayed on a controller is as follows.
Table 4-3 Controller error display
No.
Error name
Code
Error details
Classification (*)
1
Configuration error
E100
Occurs when the number of power supplies actually
connected and powered differs from the controller's power
setting
2
2
FUSE ERROR
E300
Occurs from a blown power line fuse
1
3
OVER CURRENT
E310
Occurs when inverter overcurrent is detected while the
power supply is on
1
4
LARC OC
E320
Occurs when a low arc unit section overcurrent is detected
1
5
LARC SHORT
E330
Occurs when a low arc unit short circuit is detected
1
6
OVER TEMP
E340
Occurs from a rise in internal temperature
1
7
FAN ERROR
E350
Occurs from a fan error
1
8
LEVEL OVER ERROR
E370
Occurs when the output setting voltage is overvoltage
At the Power supply unit.
1
9
LEVEL OVER ERROR
E600
Occurs when the output setting voltage is overvoltage
At the controller.
2
10
PCB SETTING ERROR
E700
Occurs when there is a setting error in the controller's
internal PCB
2
