UT8805E Benchtop Digital Multimeter

1.3 Front Panel

UT8805E comes with a simple clear front panel, its controlling buttons are designed by logic and can be

easily found to make basic operation. See Figure1-4.

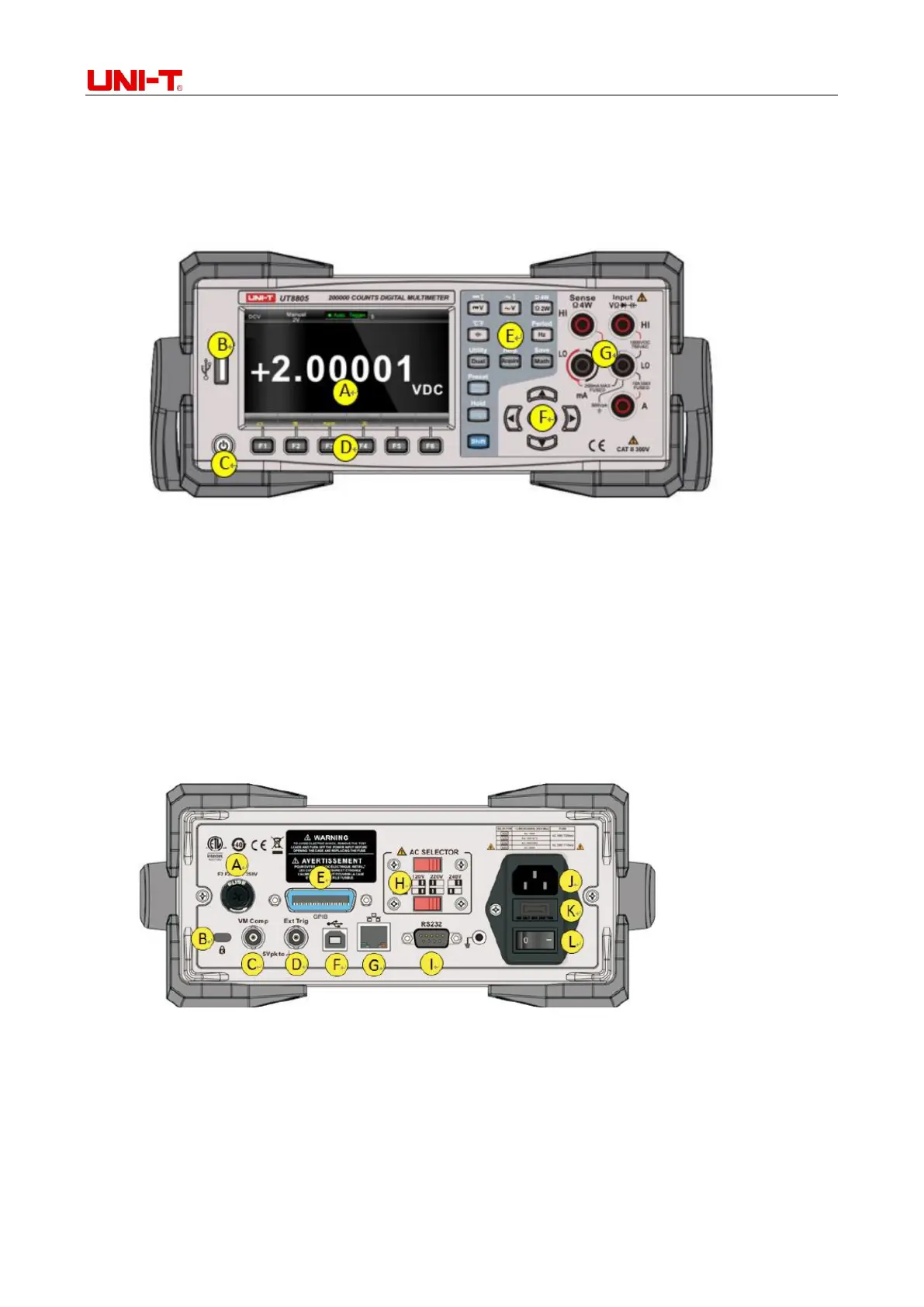

Figure 1-4 Front panel

[A] LCD display

[E] Measure and auxiliary function buttons

[B] USB Host interface

[F] Range selector and direction buttons

[C] Power switch

[G] Input interfaces

[D] Menu operating buttons

1.4 Rear Panel

Various interface are provided by UT8805E, includes USB Device, RS-232C, LAN, GPIB (optional) and

so on, as shown in figure:

Figure 1-5 Rear panel

[A] Current measurement fuse

[G] LAN interface

[B] Lockhole

[H] AC voltage selector

[C] VMC output

[I] RS-232C interface

[D] External trigger input

[J] Power supply interface

[E] GPIB interface

[K] Power supply fuse

[F] USB Device interface

[L] Power switch
