UT8805E Benchtop Digital Multimeter
47

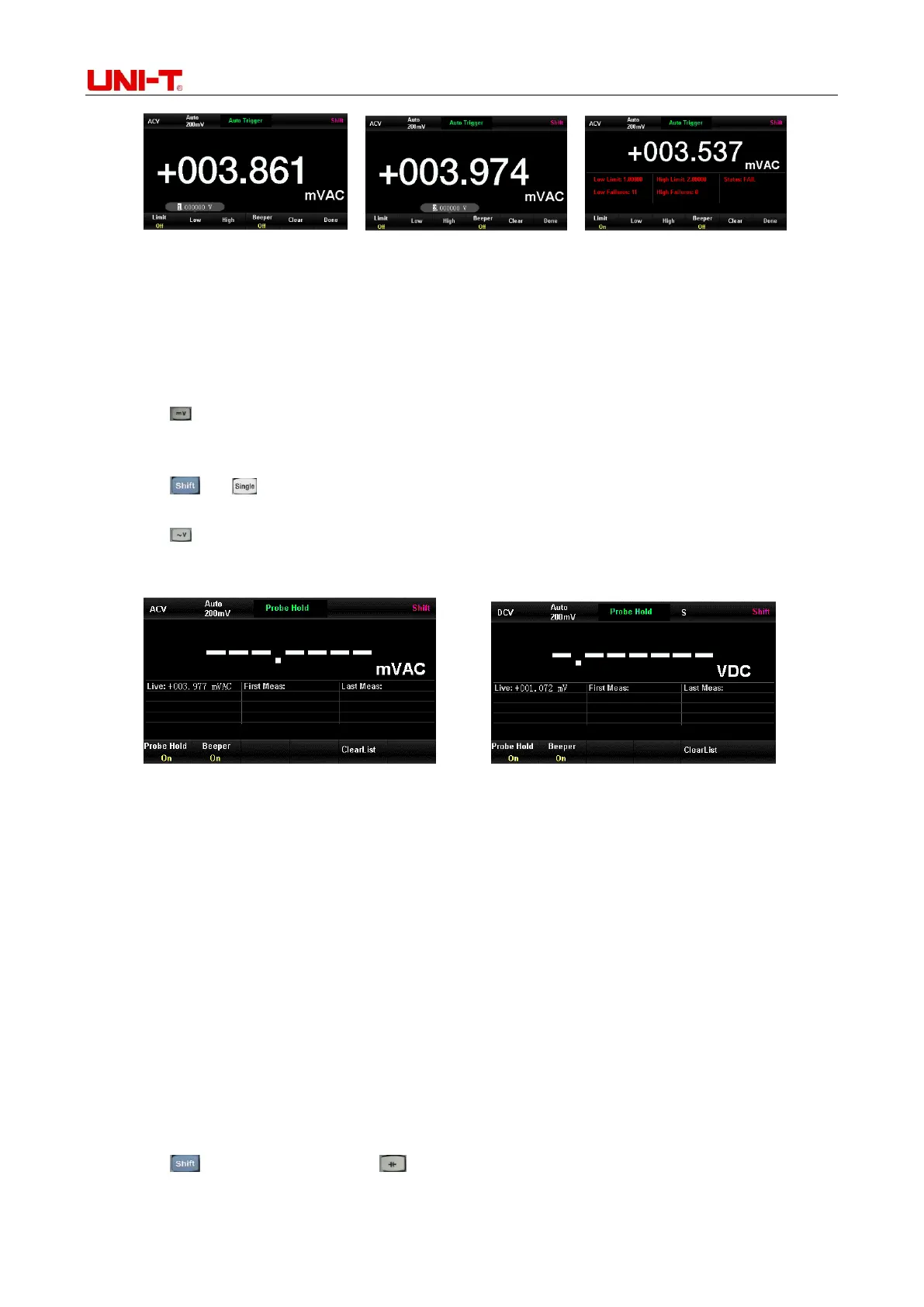

Figure 3-7 ACV low limit setting Figure 3-8 ACV High limit setting Figure 3-9 Interface of limit test
3.6 Hold Measurement
With Hold measurement, a stable reading can be remained on the display, even if the test leads are
removed.
Steps:
1) Press button to enable DC voltage measurement and select proper voltage range.
2) Connect a test lead with the multimeter. Connect the red test lead to terminal Input-HI and the black
one to terminal Input-LO.
3) Press ā to enter the interface of Hold measurement. The DC voltage will be recorded as
Figure 3-10.
4) Press button to enable AC voltage measurement and select proper voltage range.
5) Connect a test lead with the multimeter. Connect the red test lead to terminal Input-HI and the black
one to terminal Input-LO. The AC voltage will be recorded as Figure 3-11.
Figure 3-10 DCV Hold measurement Figure 3-11 ACV Hold measurement
3.7 Thermocouple Setting and Measurement
Thermocouple is common temperature sensor. The type, voltage and the cold junction temperature of
thermocouple is required in thermocouple measurement. With a built-in temperature sensor, UT8805E is
able to measure the temperature (cold junction temperature) near the terminal HI and terminal LO.
In thermocouple temperature measurement, the multimeter will automatically measure the cold junction
temperature and calculates the absolute temperature of the hot junction according to the cold junction
temperature.
In the setting of thermocouple sensor, according to the thermocouple type, users only need to input the
corresponding relationship between the thermocouple voltage and the temperature difference between
cold and hot junctions.
Steps:
1) Connect the sensor as Chapter 2. See Figure 3-12.
2) Ensure the type of thermocouple sensor.
Press button, and then press button to enable temperature measurement. Press [Probe
To Next Page
