UT8805E Benchtop Digital Multimeter
48
Setting] → [Probe] → [TCouple], and then select [K type] in [Type]. The interface is shown below.

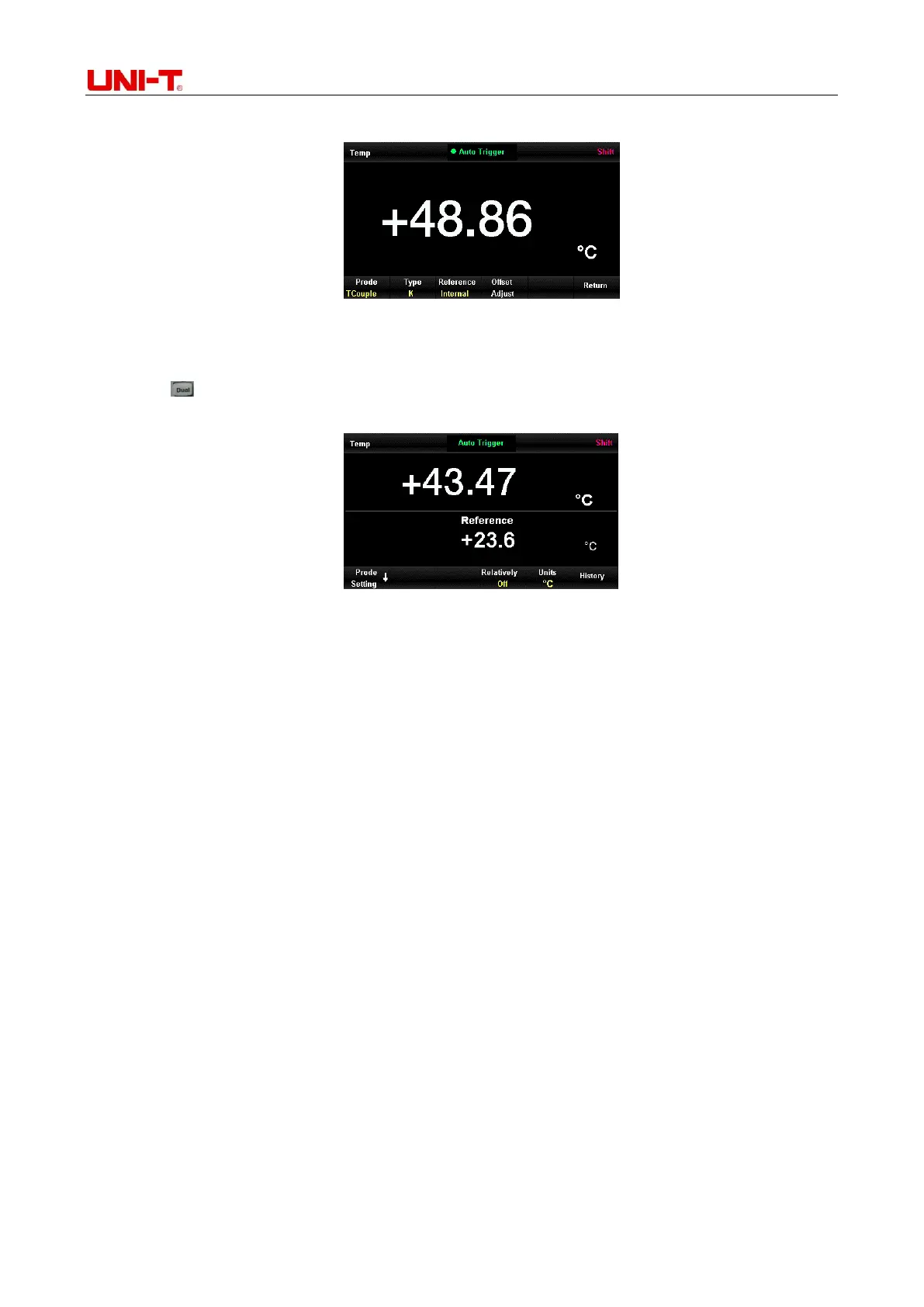

Figure 3-12 K-type thermocouple temperature measurement
3) Return to the previous menu, select [Probe] → [Unit] to set the unit to be °C, then the measured
value will be displayed.
4) Press button and then select [Ref Temp] to display the temperatures of measurement and
reference sensor simultaneously.
Figure 3-13 Dual display of temperature measurement
