Automatic Setup for Waveform Display Getting to Know the Vertical System
Your UTD4000 Four-channel digital storage
oscilloscope features an auto setup function. It can
automatically adjust the vertical graticule factor,
scanning time base and trigger mode based on the
input signal, until the most appropriate waveform is
displayed. The auto setup function can only be
operated when the signal to be measured is 50Hz or
above and the duty ratio is larger than 1%.
1. Connect the signal to be tested to the signal input
2. P r e s s [ ] . T h e o s c i l l o s c o p e w i l l
automatically set the vertical graticule factor
scanning time base and trigger mode Should
ake more detailed check you
can adjust manually after the auto setup
process until you get the optimal waveform
As shown in the figure below, there are a group of
buttons and knobs in the vertical control zone. The
following exercise will guide you through vertical
Using the Auto Setup Function :

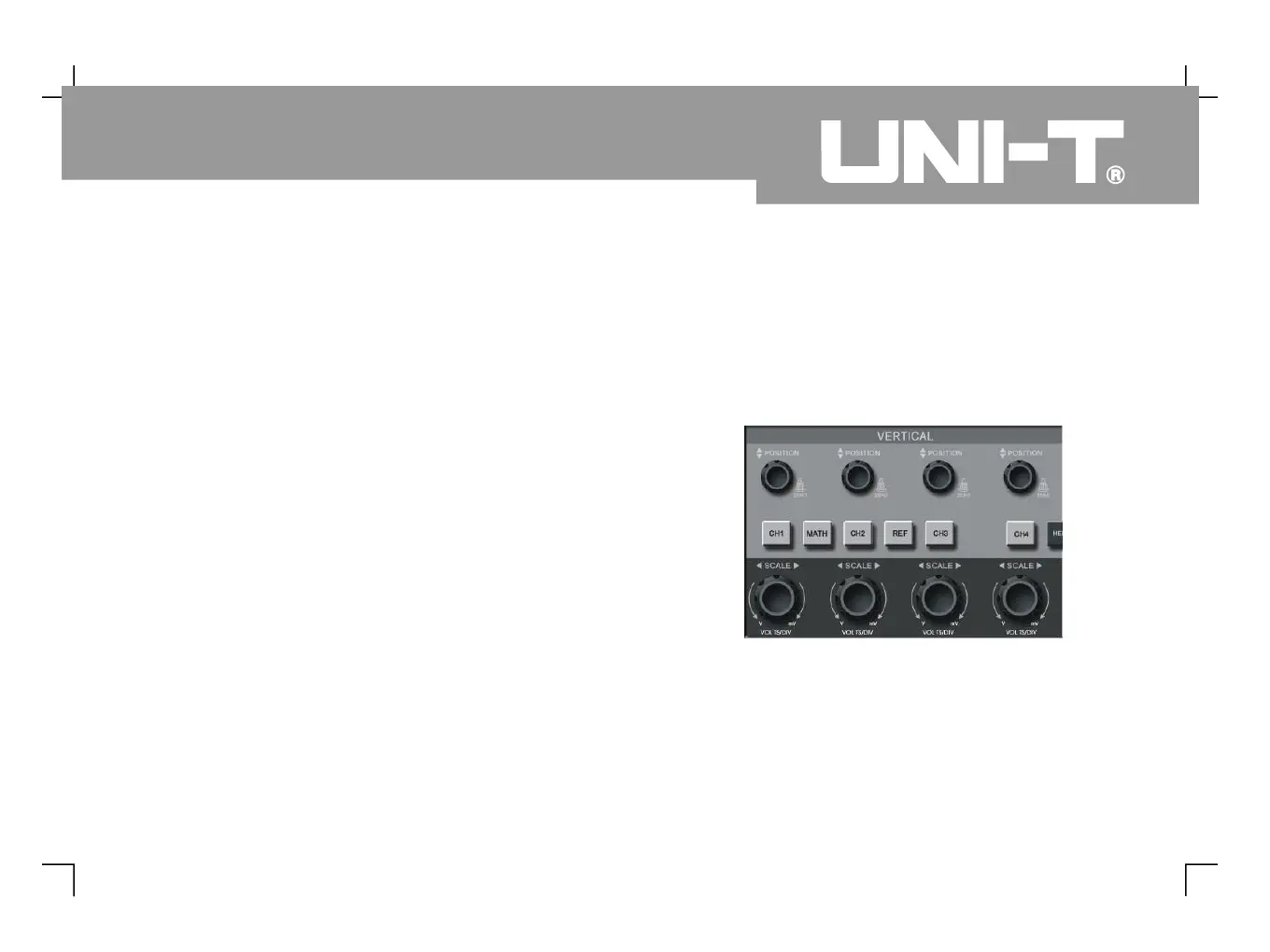

Vertical control zone on the front panel
