UniCarriers FD160-2 - Replacing Fuses

PREVENTIVE MAINTENANCE
4-15
REPLACING FUSES
CAUTION
The fuses protect the electric circuit against overcurrent.
Use fuses of the specied ampere rating.
10A
15A
15A
15A
15A
15A
15A
15A
15A
10A
10A
10A
10A
10A
10A
15A

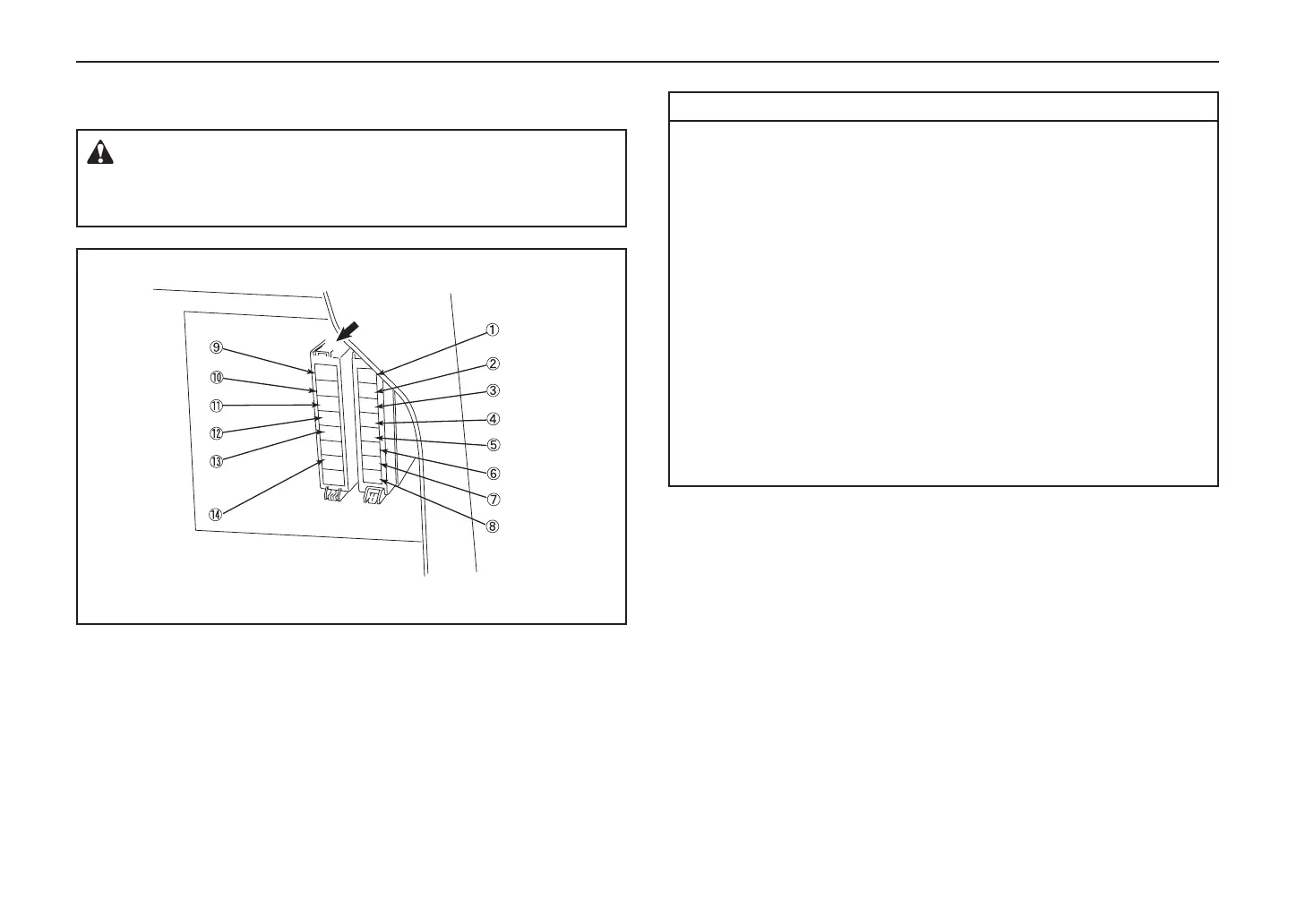

FUSE BOX
Check to see that the components in each circuit are operating
properly. If every component in a circuit is not functioning, it
indicates that the corresponding fuse is blown out. Replace the
blown fuse with a spare fuse of the same capacity and color.
If some of the components in a circuit do not function properly, it
suggests that a bulb has burnt out. Replace the burnt bulb with a
new one of the same capacity.
Fuse Capacity
① Meters, gauges, buzzer .................................................. 10A
② Transmission back lamp ................................................. 10A
③ Turn signal light ..............................................................10A
④ Parking brake solenoid valve .........................................10A
⑤ Horn, air drier, brake blower ...........................................15A
⑥ Front work light ............................................................... 15A
⑦ Rear work light, beacon light ..........................................15A
⑧ Head lamp, tail lamp, parking brake lamp ......................15A
⑨ Air conditioner ..................................................................5A
⑩ Air conditioner ................................................................15A
⑪ Room lamp .....................................................................10A
⑫ Wiper motor (rear) ..........................................................10A
⑬ Wiper motor (front) .........................................................20A
⑭ Air conditioner ................................................................15A
