INSTRUMENTS AND CONTROLS
2-15

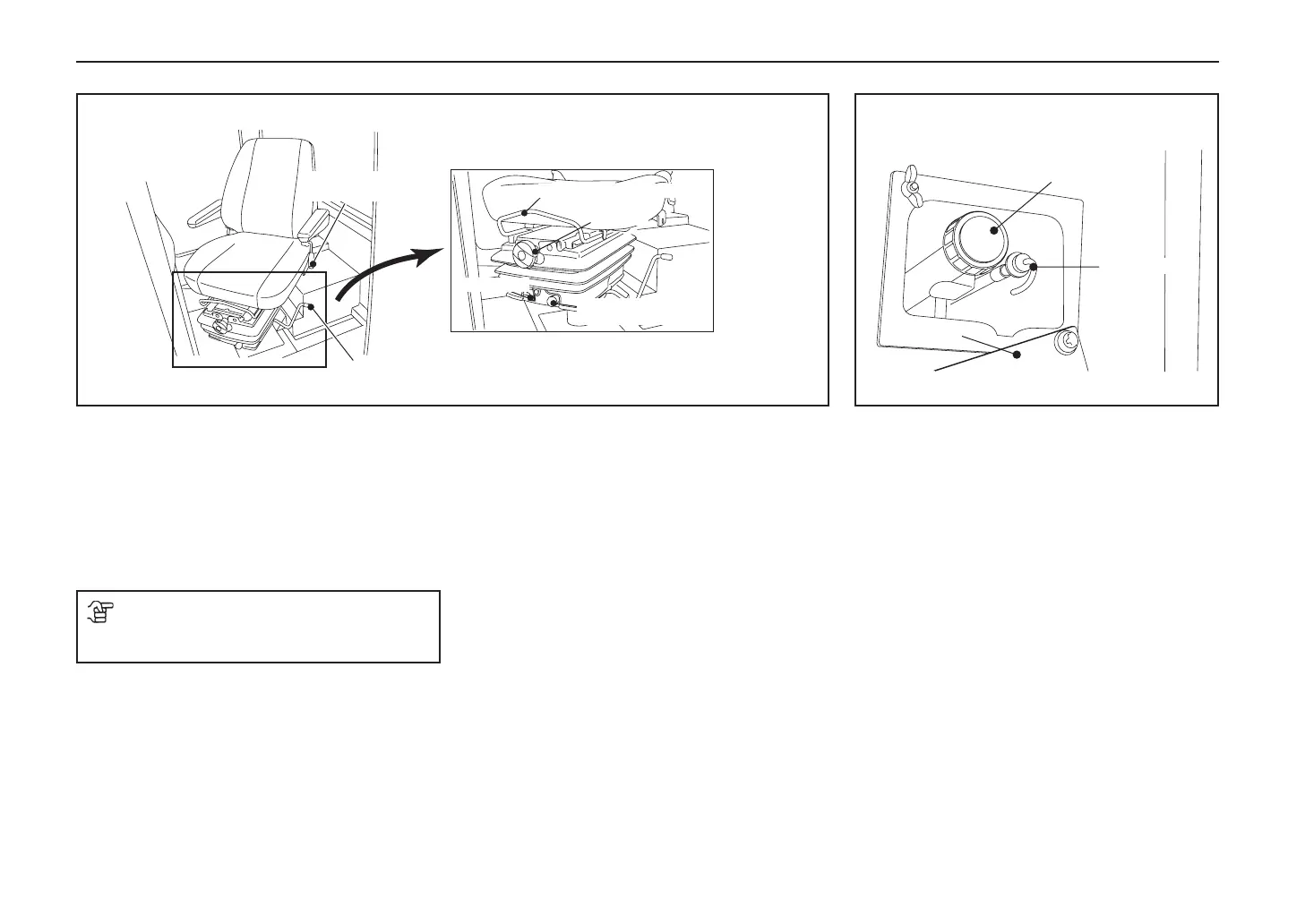

SEAT (WITH OPTIONAL CAB)
The operator’s seat can be turned to make
it easy for the operator to get in and out the
cab.
The armrest can be raised by hand. Use it
properly according to the working condition.
NOTE
The above seat is optional.
SEAT ROTATION LEVER
You can turn the operator’s seat 15° to
the right and 45° to the left, using the seat
rotation lever.
SEAT HEIGHT ADJUSTMENT
LEVER
Seat yourself in the operator’s seat, move
the lever to the right or left, and adjust
the seat height according to the individual
operator’s physique.
Usually, set the seat height to the right-end
or the second from the right-end marking.
The suspension stroke will be automatically
adjusted according to the setting of the seat
height adjustment lever.
COVER
TORQUE CONVERTER OIL FILL
PORT
The torque converter oil ll port and dipstick
are located under the oorboard at the right
side of the operator’s seat.
Loosen the wing nut and move the
floorboard cover to gain access to the fill
port and dipstick.
SEAT ROTATION
LEVER
HANDLE
RECLINING
CONTROL LEVER
SEAT ADJUSTMENT LEVER
INDICATOR
SEAT HEIGHT
ADJUSTMENT LEVER
TORQUE CONVERTER
OIL FILL PORT
DIPSTICK
