10.1 Changing the motor oil
Change the oil after the first five hours of operation, then
every 25 hours thereafter.
If running this unit under dirty or dusty conditions, or in
extremely hot weather, change the oil more often..

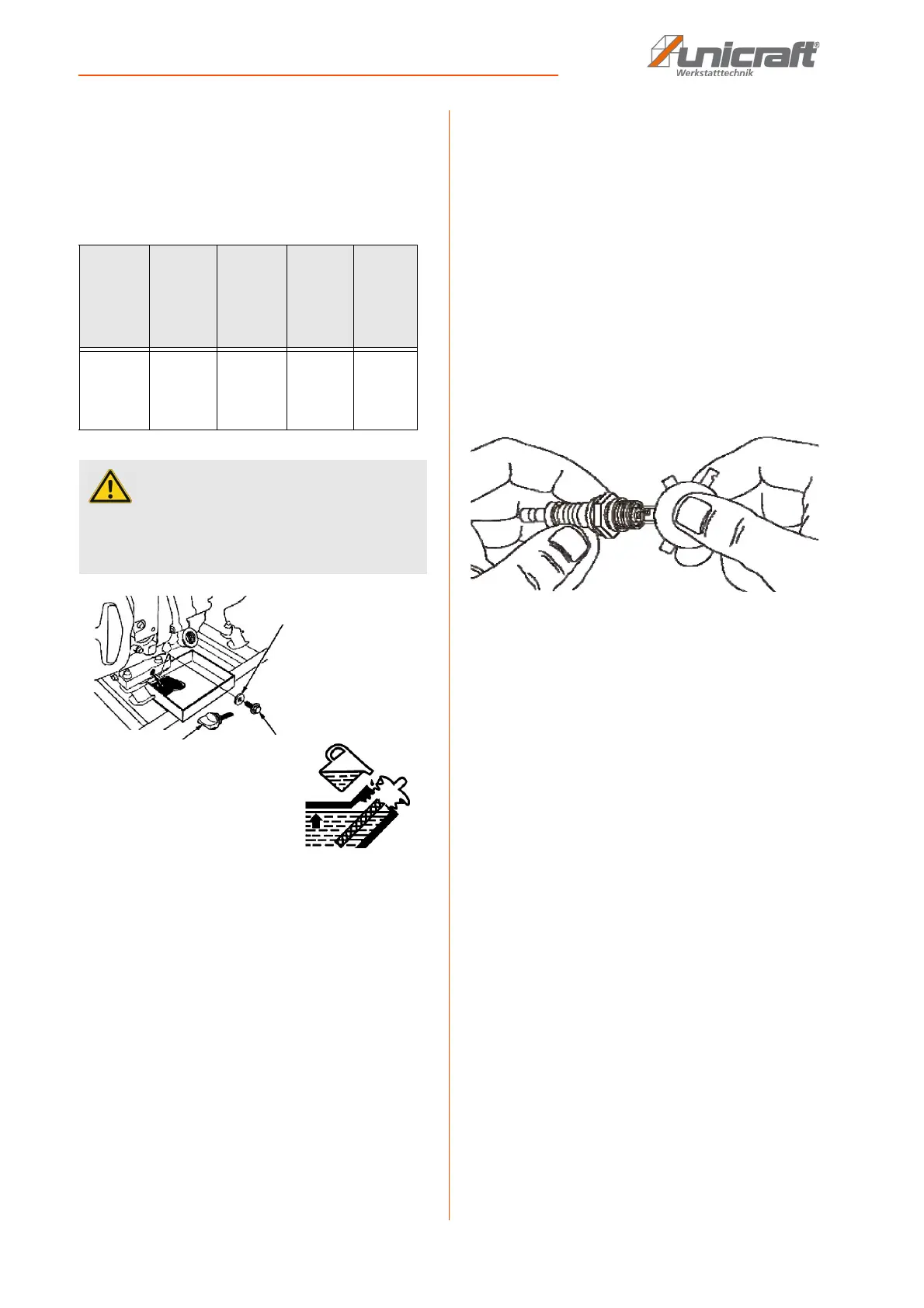

Fig. 22: Changing the motor oil
Step 1: Clean the area around the oil drain plug.
Step 2: Remove the oil drain plug from the engine to
drain oil completely into a suitable container.
Step 3: When the oil has completely drained, install the
oil drain plug and fasten securely.
Step 4: Slowly pour the new oil through the oil filter into
the motor until the level reaches the mark on the
dipstick. In the meantime, check the level several
times. Never exceed the max. level!
Step 5: Close the filling opening tightly with the cap.
Step 6: Wipe up spilled oil. Check the oil level before
each motor start!
Step 7: Dispose of the used oil properly.
10.2 Replacing the spark plug
Use spark plug F6TC, BPR4ES or Champioin
RN14YC.Replace the plug once each year. This will help
the motor start easier and run better.
Step 1: Switch off the generator and leave to cool.
Step 2: Unplug the spark plug connector.
Step 3: Clean the area around the spark plug and re-
move it from the cylinder head.
Step 4: Set the spark plug’s gap to 0.70-0.80 mm
Step 5: Install the correctly gapped spark plug into the
cylinder head (Torque 20 Nm).
Fig. 23: Check the electrode spacing
10.3 Spark arrester
Step 1: Shut off generator and allow the motor and muff-
ler to cool down completely before servicing
spark arrestor (located on the back of the muff-
ler).
Step 2: Remove the clamp and spark arrestor screen.
Clean the spark arrestor screen with a small wire
brush.
Step 3: Replace the spark arrestor if it is damaged.
Install the Spark arrestor reversely.
Model
PG-E
30 SRA
/ PG-E
40 SRA
PG-E 60
SEA
PG-E
80 TEA
H / PG-
E 90
SEA
PG-E
100
TEA H
Motor
oil
volume
min./max.
0,25 -
0,6 liter
0,55 -
1,1 liter
0,6 -
1,2 liter
1,3 liter
ATTENTION!
- Hot oil may cause burns. Allow motor to cool before
draining oil.
- Avoid skin contact with used oil
Oil drain
plug
Oil drain
plug
