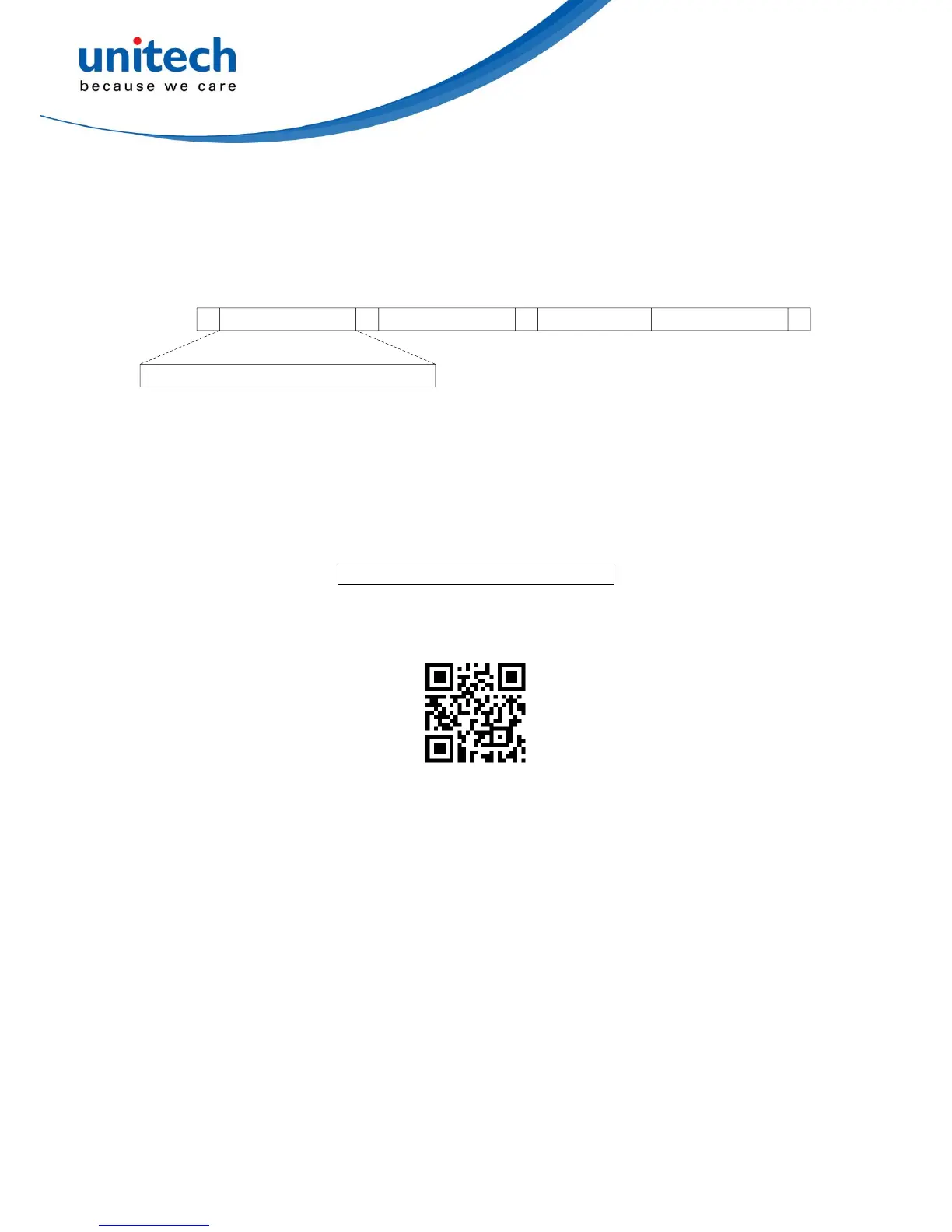

3-2 Example
2: Multiple-parameter setting by scanning a QR code barcode
User can customize a QR code barcode to set multiple parameters. The scanner can set multiple
parameters by scanning this single QR code barcode.
1. The data format of the QR code barcode is as following.
Note that:
<Option barcode index> means the corresponding 4 digits of Option barcode.
<D/H> means “D” or “H” character. D means that the type of alphanumeric entry is decimal; and
H means that the type of alphanumeric entry is hexadecimal.
<Alpha. entries> is a character string with various length of 2, 4, or other values.
Example: Set 0401->03 (decimal); 8002->0D0A (hexadecimal); 8202->01 (decimal). The
customized QR code barcode contents and symbol are as following.
%0401D03%8002H0D0A%8202D01%
2. Notes of making QR code barcode
The model is chosen as M2. Other requirements, e.g. ECC level, Start mode, etc, are not
specified.
Other notes:
The contents of a QR code barcode can include several same <Option barcode index>
associated
with
same
or
different
<Alpha.
entries>.
In
the
case
of
with
different
<Alpha.
entries>,
the latest <Alpha. entries> is the valid one.
If any one of the parameter settings is invalid, the total setting is failed. The invalid setting can
be caused by one of the following problems: invalid <Option barcode index>, invalid type of
<D/H>, inval
id type, length or val
ue r
ange o
f
<Alpha. entries>, etc
.
