MS652 User
’
s Manual

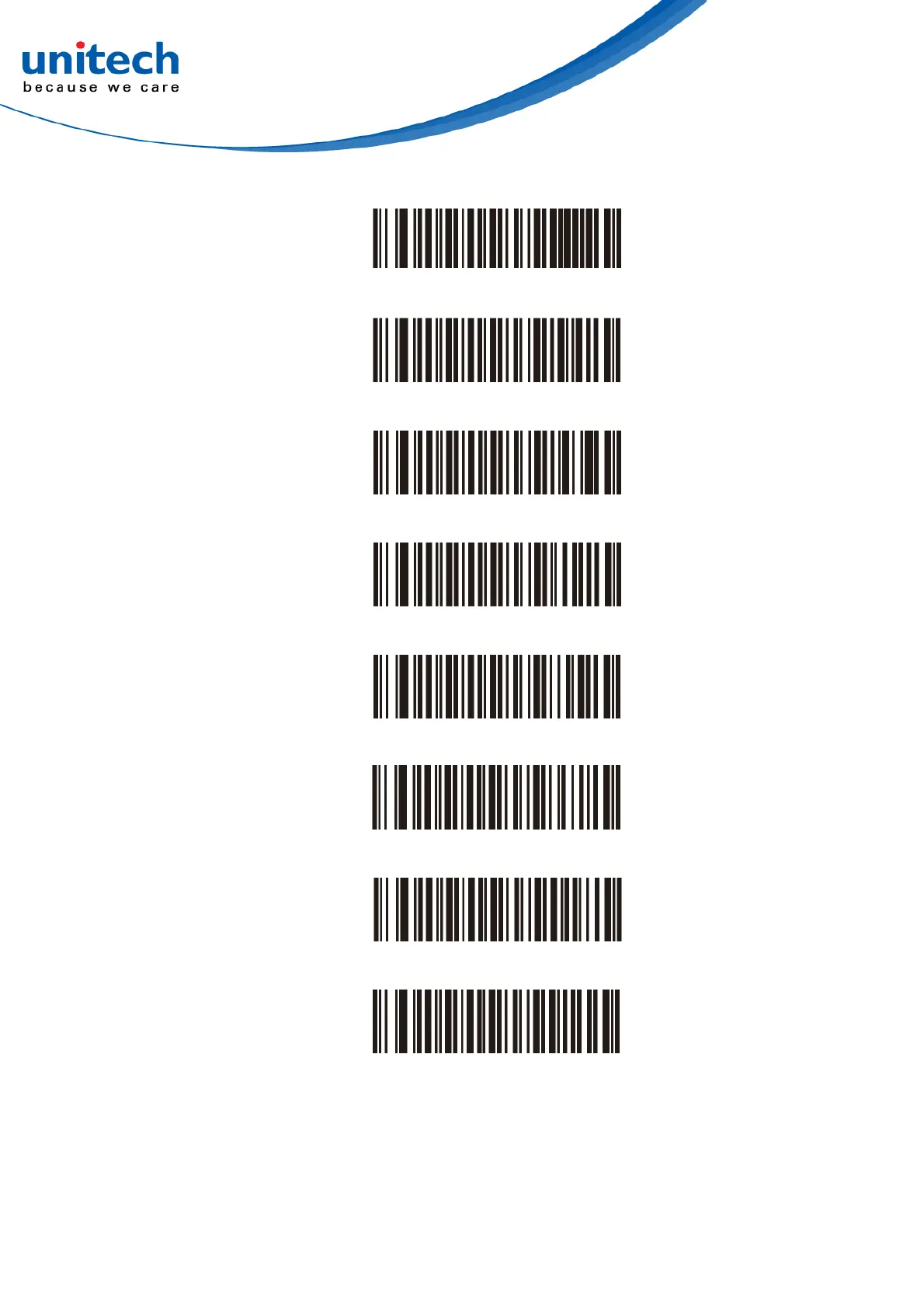

Enable 977 Supplemental Mode
Enable 414/419/434/439 Supplemental Mode
Enable Smart Supplemental Mode
Supplemental User-Programmable Type 1 and 2
Smart Supplemental Plus User-Programmable 1 and 2
Smart Supplemental Plus User-Programmable 1
Supplemental User-Programmable Type 1
Enable 491 Supplemental Mode
37
39
Table of Contents
Preface
3
About this Manual
3
Regulatory Compliance Statements
3
Laser Information
8
LED Information
8
Battery Notice
9
Adapter Notice
12
Hearing Damage Warning
12
Worldwide Support
13
Warranty Policy
14
Table of Contents
15
Chapter 1 - Overview
18
Package
18
Product Detail
19
Specifications
20
Getting Started
23
Battery Charging
28
Trigger Key Functions
28
LED Indicator / Beeper Sequence
29
Chapter 2 - Installation
30
Pairing-For the First Time Use
30
How to Unpair
32
Chapter 3 - Symbology
33
Enable / Disable All Types
33
Upc/Ean/Jan
33
Bookland Ean
36
Bookland Isbn Format
36
Issn Ean
37
Ucc Coupon Extended Code
47
Coupon Report
48
Upc Reduced Quiet Zone
49
Isbt Concatenation
53
Check Isbt Table
54
Isbt Concatenation Redundancy
54
Code 128 Security Level
56
Code 128 Reduced Quiet Zone
58
Trioptic Code
59
Convert Code 39 to Code
60
Code 32 Prefix
60
Code 39
62
Transmit Code 39 Check Digit
63
Code 39 Full Ascii Conversion
63
Code 39 Security Level
64
Code 39 Reduced Quiet Zone
65
Code 93
66
Code 11
69
Code 11 Check Digit Verification
72
Transmit Code 11 Check Digits
73
Interleaved 2 of 5 (ITF)
74
Set Lengths for Interleaved 2 of
75
I 2 of 5 Check Digit Verification
77
Transmit I 2 of 5 Check Digit
77
Convert I 2 of 5 to Ean
78
I 2 of 5 Security Level
79
I 2 of 5 Reduced Quiet Zone
81
Discrete 2 of 5 (DTF)
82
Codabar (NW - 7)
84
Set Lengths for Codabar
84
Clsi Editing
86
Notis Editing
86
Msi
88
Set Lengths for Msi
88
Msi Check Digits
90
Msi Check Digit Algorithm
91
Chinese 2 of 5
93
Set Lengths for Matrix 2 of
94
Matrix 2 of 5 Check Digit
95
Transmit Matrix 2 of 5 Check Digit
96
Inverse 1D
97
GS1 Databar
98
Gs1 Databar Expanded
99
Symbology-Specific Security Features
104
Security Level
106
D Quiet Zone Level
107
Intercharacter Gap Size
108
Composite
109
Composite Tlc
110
Upc Composite Mode
111
Symbologies
112
Code 128 Emulation
113
Data Matrix
114
Data Matrix Inverse
114
Aztec Inverse
117
Han Xin
118
Han Xin Inverse
118
Macro PDF Features
119
Postal Codes
120
Transmit Us Postal Check Digit
121
Transmit Uk Postal Check Digit
122
Japan Postal
122
Australia Post
123
Australia Post Format
123
Netherlands Kix Code
125
Upu Fics Postal
125
Chapter 4 - Command Settings
126
General Setting
126
Output Data Transmit
128
Beep Tone, Terminator
130
Indicators
134
Data Sending Interblock Delay
137
BT Config
138
Bluetooth Config
140
Procedure to Synchronize MS652 Date & Time with Host
141
Procedure to Update MS652 Firmware through USB Drive
141
Trigger Mode
142
Picklist Mode
144
Continuous Bar Code Read
145
Unique Bar Code Reporting
145
Mirrored Image
146
Decode Session Timeout
147
Timeout between Decodes, same Symbol
148
Timeout between Decodes, Different Symbols
149
Transmit "No Read" Message
150
Prefix/Suffix Values
151
Scan Data Transmission Format
152
Transmit Code ID Character
153
Miscellaneous Scanner Parameters
154
Low Light Scene Detection
155
Appendix A - ASCII Character Sets
156
ASCII Character Set
156
ALT Key Character Set
161
GUI Key Character Set
162
PF Key Character Set
164
F Key Character Set
165
Numeric Key Character Set
166
Extended Key Character Set
167
Appendix B - Numeric Barcodes
168
Extended Key Character Set
168
Cancel
169
Appendix C - Alphanumeric Barcodes
170
Alphanumeric Barcodes
170
Appendix D - Programming Reference
177
Symbol Code Identifiers
177
AIM Code Identifiers
179
Modifier Characters
180
