Universal Audio OX User Manual

OX Amp Top Box OX Software App 30
Loading Presets
Important: If a Rig is modified and a preset is loaded before the modified Rig is
saved, the modified Rig is discarded. If you want to keep the modified Rig, save
the modified Rig as a preset before loading Rig presets.
How to load Rig and Effect presets:
1. Access the Presets Manager popover:
• Rig preset – Press the RIG NAME area at top left of RIG view screen.
• Effect preset – Press PRESETS at top left of the effect editor view.

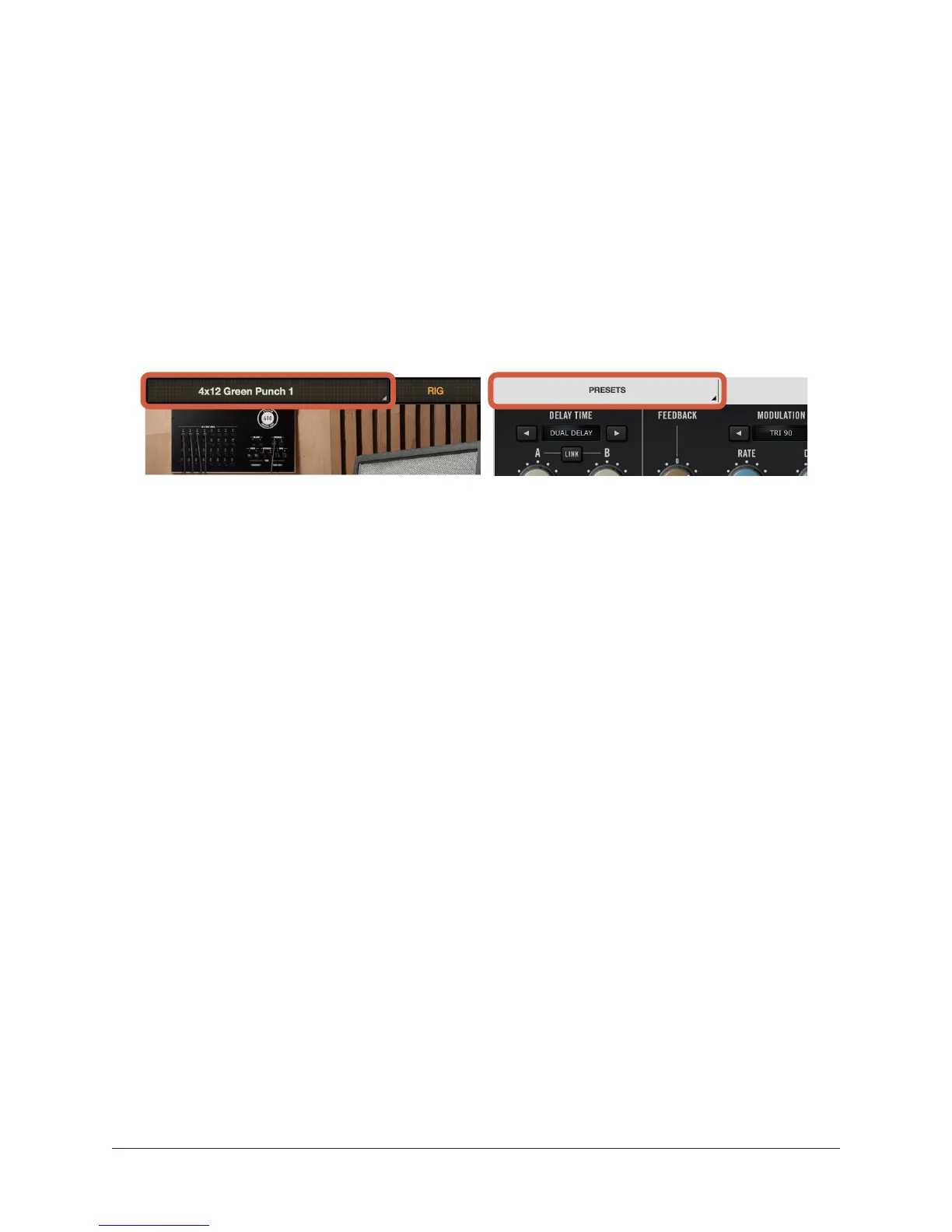

Accessing the presets manager for Rigs (left) and effects (right)
2. Select any folder in left column of the popover. All presets within the folder are
displayed in the right column.
Note: You may need to scroll to see all presets in the folder.
3. Select a preset in the right column. The preset is loaded immediately.
Tip: Keep the presets manager open to continue auditioning presets. When
finished, press DONE to close the popover.
1.
1.
2.

Universal Audio OX Specifications

General

Speaker Impedance	4, 8, 16 Ohms
Power Handling	150W RMS
Speaker Emulation	Yes
Microphone Emulation	Yes
Room Emulation	Yes
USB Audio Interface	No
MIDI I/O	No
Type	Reactive Load Box
Outputs	1 x 1/4" (line out)
Analog Inputs	1 x 1/4" (speaker in)
Analog Outputs	1 x 1/4" (line out)
Digital Outputs	1 x S/PDIF
Other I/O	1 x RJ45 (Ethernet)
