Universal Audio OX User Manual

OX Amp Top Box OX Software App 35

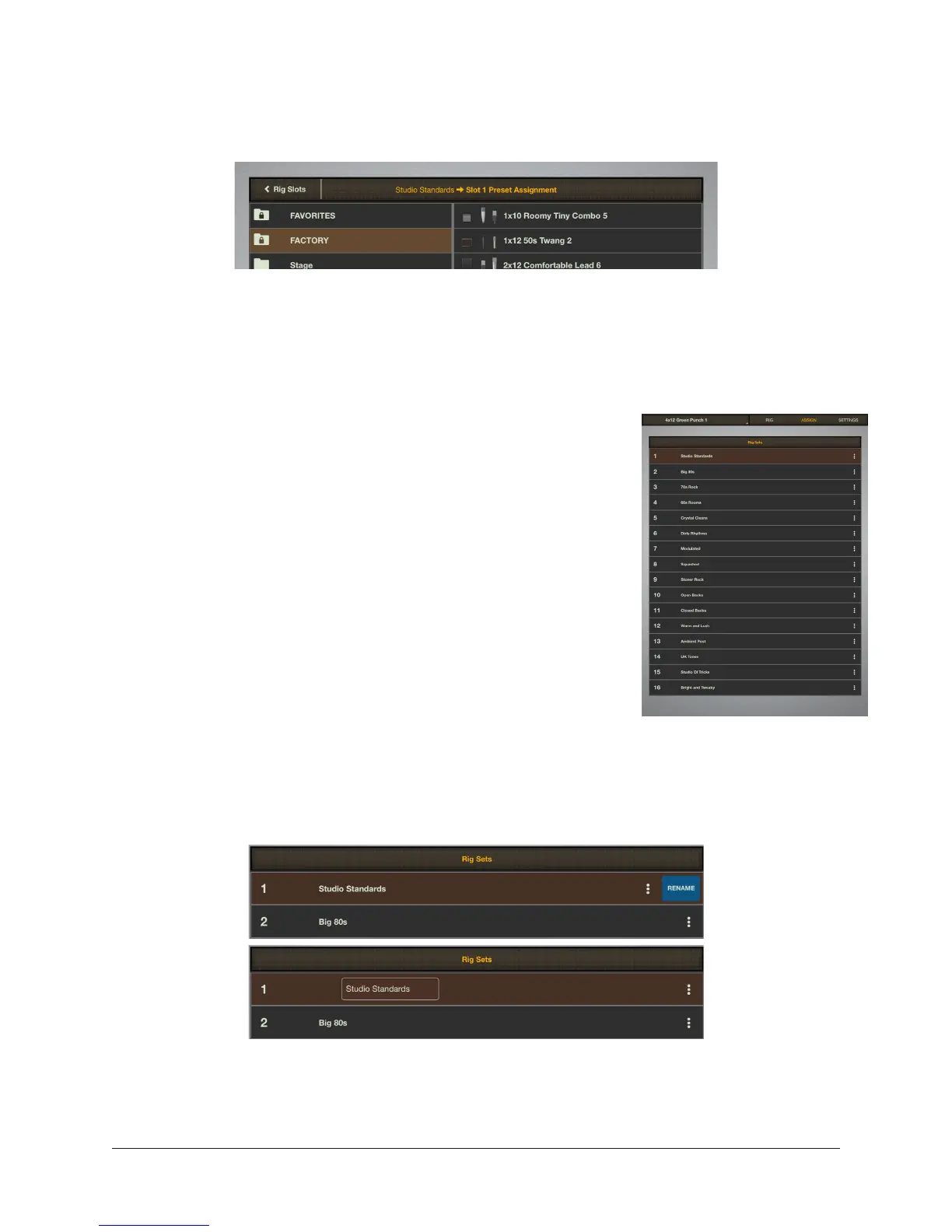

Store Individual Rigs to OX’s RIG Knob
1. In Assign view, press the Rig in any Rig slot. The slot’s Rig selector appears.
Rig slot selector — choose any Rig to assign it to the knob slot
2. In the slot’s Rig selector, choose a Rig to store in the slot. The Rig is instantly
stored to OX’s RIG knob slot.
Store Rig Sets to OX’s RIG Knob
1. In Rig Slot view, press “< Rig Sets” at upper left of the
screen. The Rig Sets list is displayed, as shown at right.
2. Press any Rig Set in the list. The Rig Set is instantly
stored to OX’s six RIG knob slots.
Rename a Rig Set
1. In Rig Sets list view, press the options dots to the right
of any Rig Set name. The rename field appears.
2. Enter a new Rig Set name.
Renaming a Rig Set

Universal Audio OX Specifications

General

Speaker Impedance	4, 8, 16 Ohms
Power Handling	150W RMS
Speaker Emulation	Yes
Microphone Emulation	Yes
Room Emulation	Yes
USB Audio Interface	No
MIDI I/O	No
Type	Reactive Load Box
Outputs	1 x 1/4" (line out)
Analog Inputs	1 x 1/4" (speaker in)
Analog Outputs	1 x 1/4" (line out)
Digital Outputs	1 x S/PDIF
Other I/O	1 x RJ45 (Ethernet)
