Universal Audio OX User Manual

OX Amp Top Box OX Software App 33
Effect Editors
The effect editors are where the controls for each individual effect processor are viewed
and adjusted. Press any effect name to open its editor in a popover.
Effect presets are also loaded and saved within its effect editor. For details, see Presets
Management.
Each of OX’s four studio-quality effects — 4-band EQ, 1176 SE compression, stereo
modulated delay, and stereo plate reverb — has a unique editor. EQ has two editors; it
can be viewed in graphic mode or touch mode.

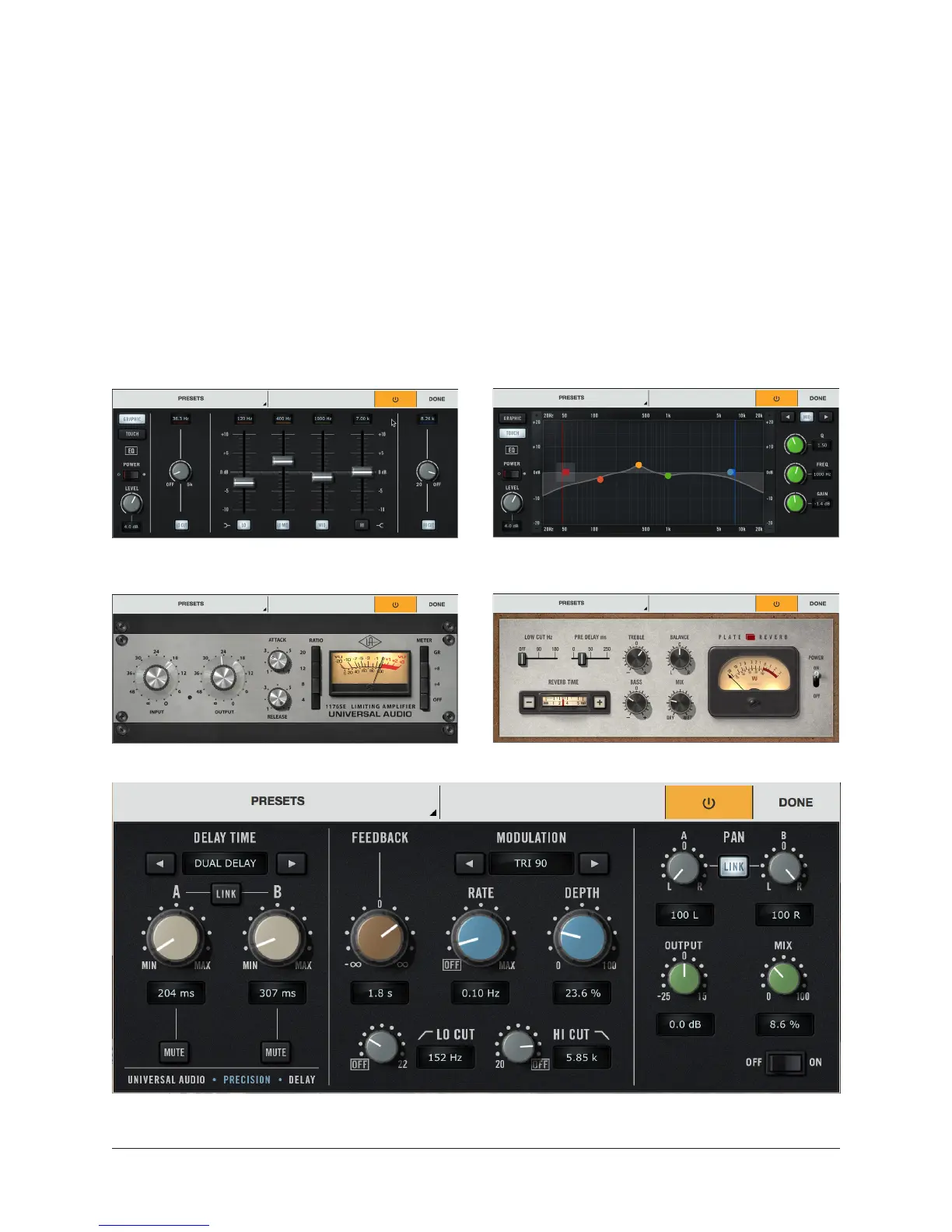

Each effect editor is shown below.
OX’s effect editors

Universal Audio OX Specifications

General

Speaker Impedance	4, 8, 16 Ohms
Power Handling	150W RMS
Speaker Emulation	Yes
Microphone Emulation	Yes
Room Emulation	Yes
USB Audio Interface	No
MIDI I/O	No
Type	Reactive Load Box
Outputs	1 x 1/4" (line out)
Analog Inputs	1 x 1/4" (speaker in)
Analog Outputs	1 x 1/4" (line out)
Digital Outputs	1 x S/PDIF
Other I/O	1 x RJ45 (Ethernet)
