Universal Robots UR e Series Service Manual

All rights reserved 139 Service Manual e-Series (EN) 1.1.8

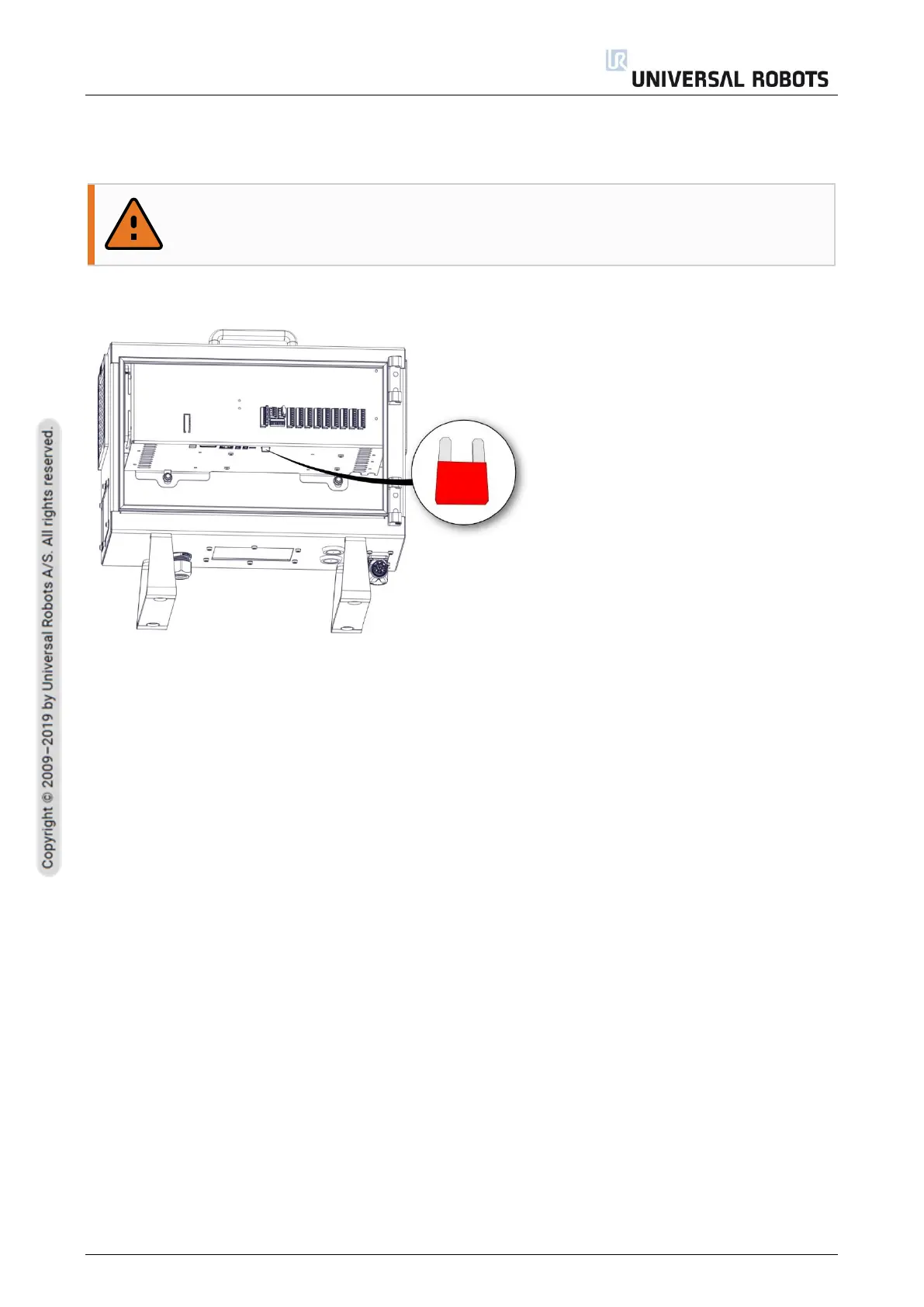

6.4.2 Fuse
Fuse is a 10A fast-acting mini blade fuse.
WARNING
Never use a different fuse than specified. Only use high grade components.
Fuse specifications:
• Interrupting Rating: 1000A @ 32 VDC
• Voltage Rating: 32 VDC
• Component Level Temperature Range: -40˚C to +125˚C
• System Level Temperature Range: -40˚C to +105˚C
• Terminals: Ag plated zinc alloy
• Housing Material: PA66
• Complies with: SAE J2077, ISO 8820-3
• UL 248 Special Purpose Fuses
