Universal Robots UR e Series Service Manual

All rights reserved 147 Service Manual e-Series (EN) 1.1.8

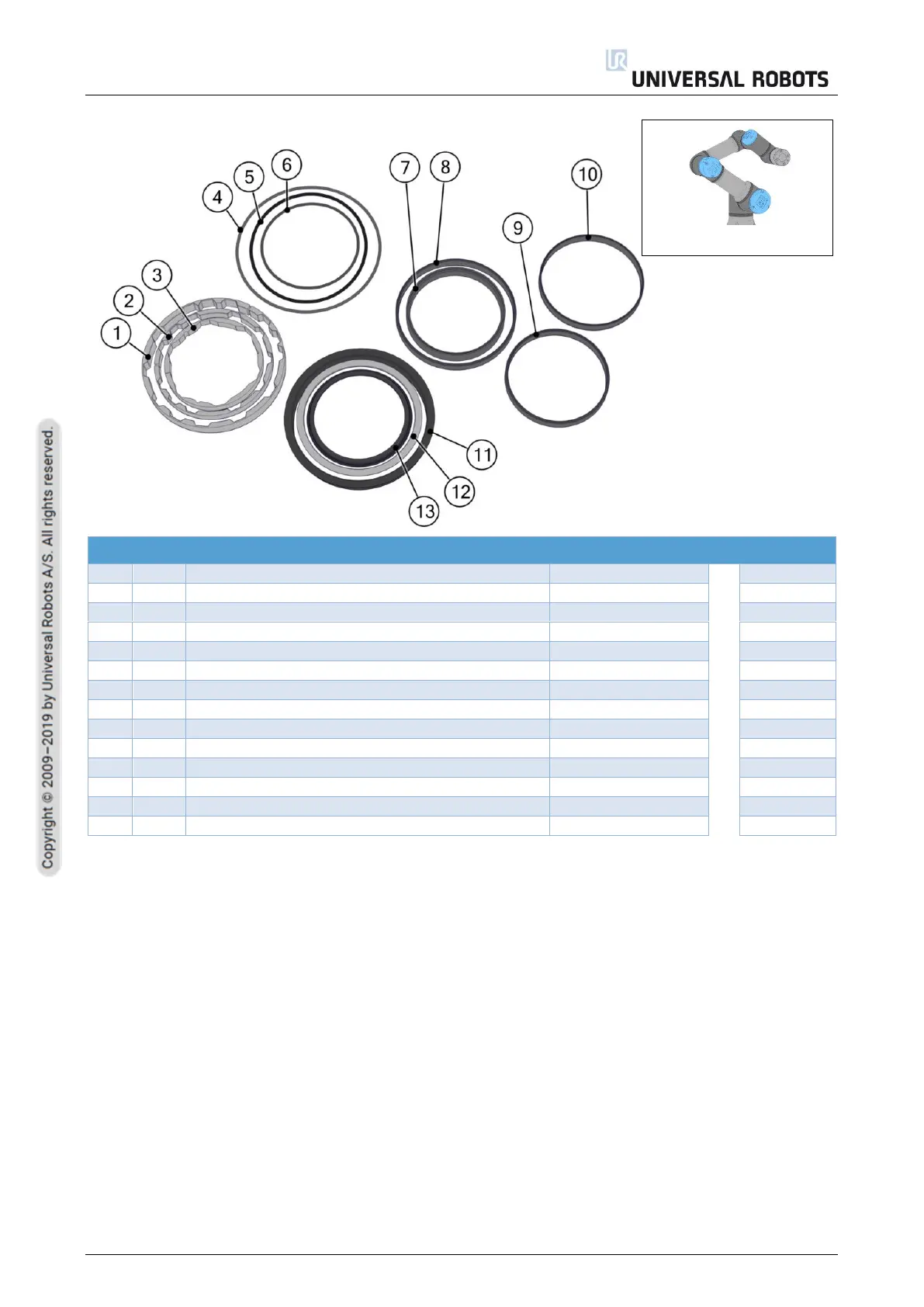

Sealing ring set UR3e – 103703
Sealing ring set UR3e – 103703
NO.
QTY.
DESCRIPTION
PART NUMBER(S)
PAGE NO.
1
3
Form-ring for Size 2 joints
N/A
N/A
2
2
Form-ring for Size 1 joints
N/A
N/A
3
4
Form-ring for size 0 joints
N/A
N/A
4
2
O-ring for size 2 lids
N/A
N/A
5
1
O-ring for size 1 lids
N/A
N/A
6
3
O-ring for size 0 lids
N/A
N/A
7
2
Flat ring for lower arm
N/A
N/A
8
1
Flat ring for size 1 joints
N/A
N/A
9
4
Flat ring for size 0 joints
N/A
N/A
10
3
Flat ring for size 2 joints
N/A
N/A
11
2
Wear ring for size 2 joints
N/A
N/A
12
1
Wear ring for size 1 joints
N/A
N/A
13
3
Wear ring for size 0 joints
N/A
N/A
Return to overview
