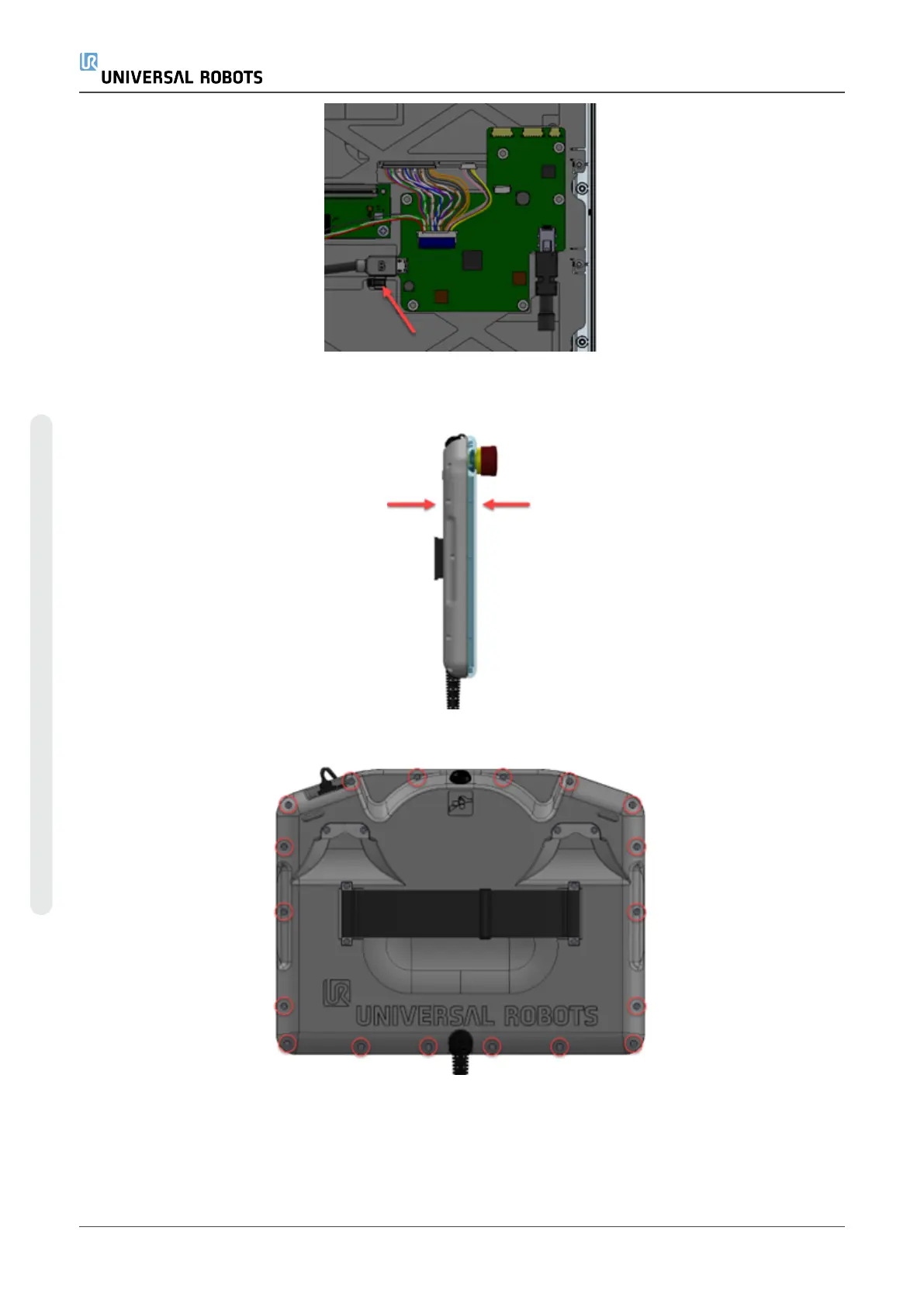

11. Connect the cable between the front frame and back plate on the other PCB and mount the
new cable tie from the kit.
12. Connect the front frame and back plate again.
13. Mount the 18 bolts connecting the front frame to the back plate with 0.3 Nm, using a T8 Torx
screwdriver.
