To Next Page

To Previous Page

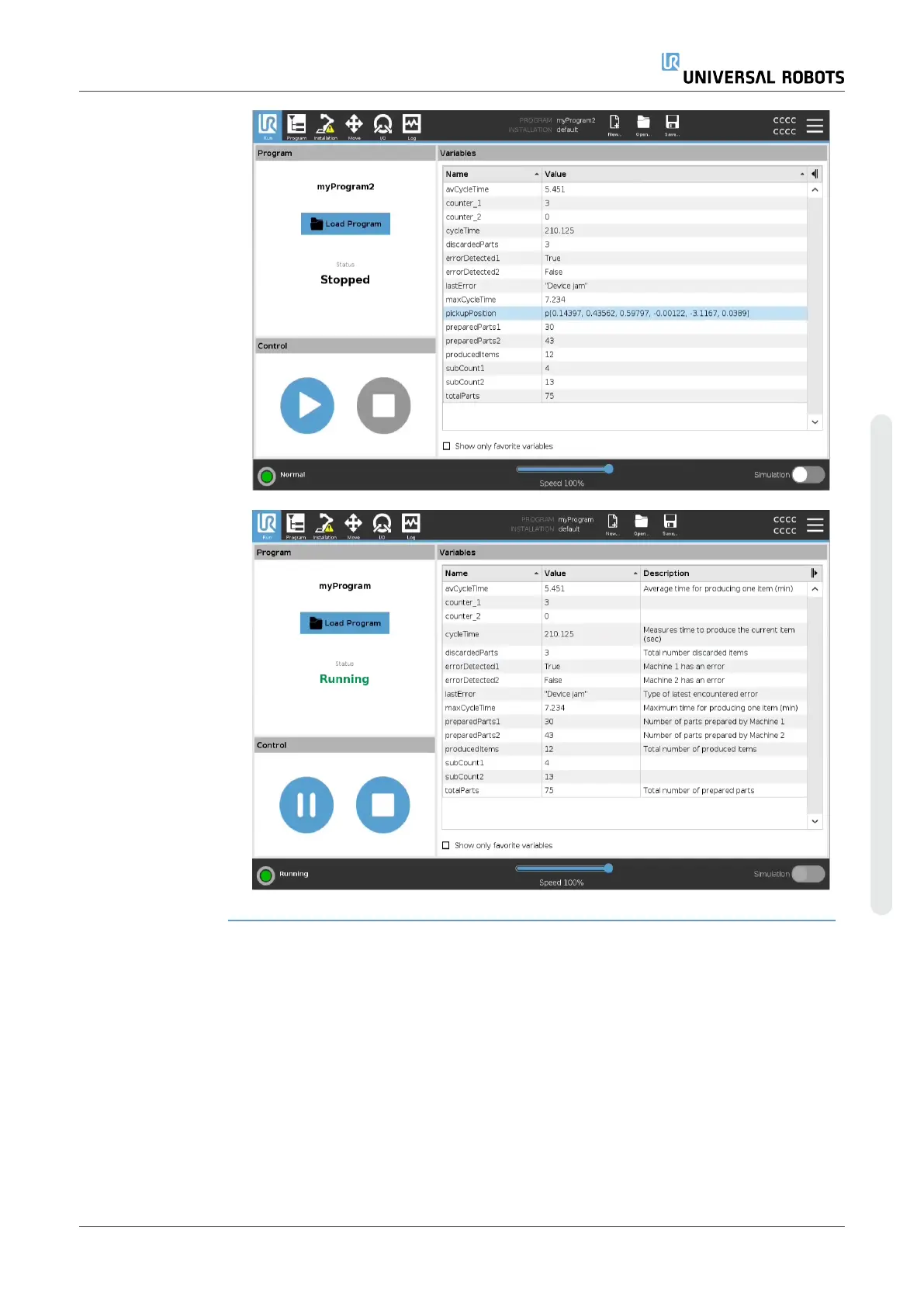

Collapsed

Description

column

Expanded

Description

column

Control The Control pane allows you to control the running program. You can play and stop, or

pause and resume a program, using the buttons listed in the table below:

•

The Play button, Pause button and the Resume Button are combined.

•

The Play button changes to Pause when the program is running.

•

The Pause button changes to Resume.

Button Function

User Manual 171 UR10e

18.Run Tab
